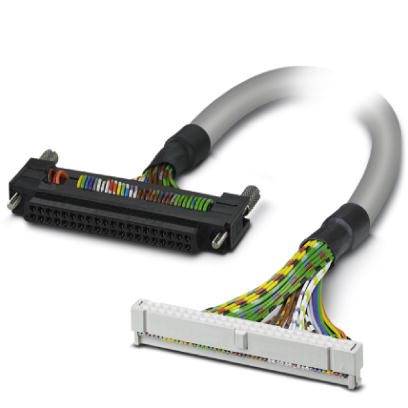

Grey flat ribbon cable with two connectors; black on the left with colourful wires, white on the right. Used for connecting electronic devices.

Image similar

Grey flat ribbon cable with two connectors; black on the left with colourful wires, white on the right. Used for connecting electronic devices.

Graph shows current I[A] against temperature θ[°C]. The current remains constant at 1.0 A and drops after 70°C, ending at 0 A at 85°C.

1/2

Image similar

Phoenix Contact

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Ambient temperature (operation): -40 °C ... 70 °C (fixed installation)
Ambient temperature (storage/transport): -40 °C ... 80 °C
Connection type: IDC/FLK socket strip
Name Connection: Field level
Rated insulation voltage 63 V.
Dimensioning surge voltage: 0.6 kV
Schutzart1: ≥ IP54 (installation location)
Max. Permissible operating voltage 25 V AC
Max. Current carrying capacity per path: 1 A (50 °C)
Cable length 1 m.
Cable outer diameter 9.9 mm ±0.4 mm
Single conductor, cross-section 0.14 mm²
Single core, cross section [AWG]: 26
Single wire, number of strands: 7
Single wire, material: CU tin-plated
Wire diameter including insulation: 1 mm ±0.03 mm
Smallest bending radius, fixed installation: 82 mm
Smallest bending radius, movable laid: 155 mm
Bending cycles: 5000 (for radius ≥ 15x outer diameter)
Line insulation resistance ≥ 20 MΩ/km (20 °C)
Line resistance: ≤ 145 Ω/km (20 °C)
Outer sheath, material: Semi-rigid PVC
Number of ports: 1
Number of pins: 50
Mating cycles> 50
Oil resistance: Against occasional splashes
Petrol resistance: Against occasional splashes
Pollution level: 2
Overvoltage category II
Control: Schneider Electric Modicon M340
Pitch: 2.54 mm

Product type: PLC cable

Type: CABLE-FCN40/1X50/ 1,0M/M340

: IP00

Manufacturer part #: 2321648

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2209723 Phoenix Contact 2321648 CABLE-FCN40/1X50/ 1,0M/M340 PLC cable

User & Safety Instructions

User & Safety Instructions 2209723 Phoenix Contact 2321648 CABLE-FCN40/1X50/ 1,0M/M340 PLC cable

Description

Signal transfer of 32 channels.

This text is machine translated.
