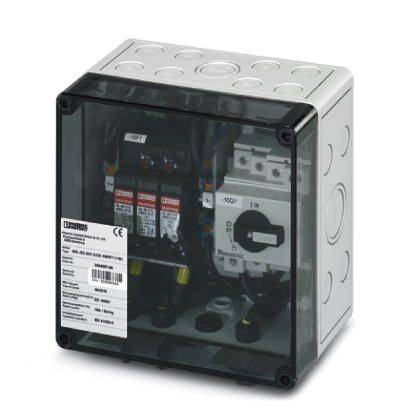

Electrical control cabinet with a transparent enclosure reveals internal switching components and labels with technical details.

Image similar

Electrical control cabinet with a transparent enclosure reveals internal switching components and labels with technical details.

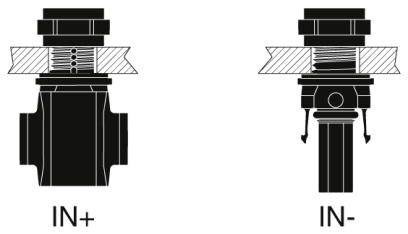

Diagram of two valves. Left: 'IN+', right: 'IN-'. Both showing different flow directions using arrows and lines.

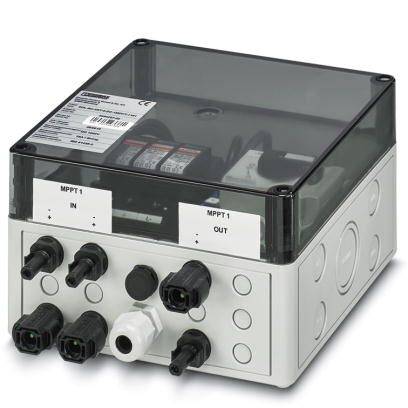

Rectangular, transparent electrical junction box with multiple connections and switches. Labelled 'MPPT1 IN' and 'MPPT1 OUT'.

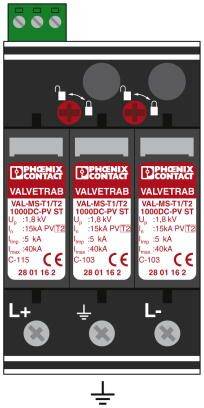

'Three red overvoltage protection modules by Phoenix Contact with the inscription VALVETRAB, mounted in a vertical row.'

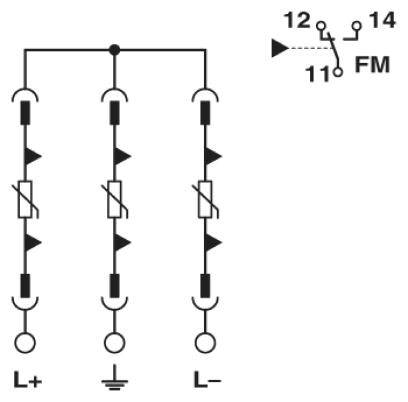

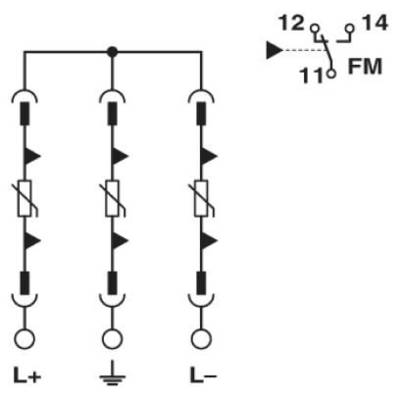

Circuit diagram of an electrical circuit with three diodes connected in parallel; on the right is a switch with positions 11, 12 and 14.

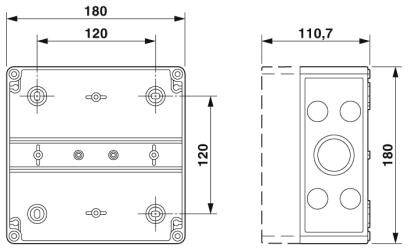

Technical drawing of a rectangular enclosure with dimensions: 180 mm and 120 mm. Top view and side view shown.

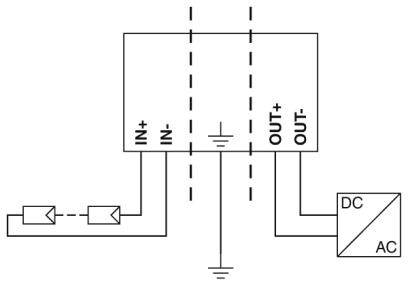

Electrical circuit diagram with connections: 'IN+', 'IN-', between diodes and capacitor, and 'OUT+', 'OUT-', connected to DC/AC converter.

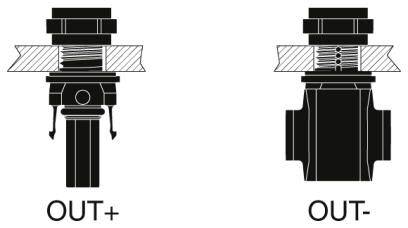

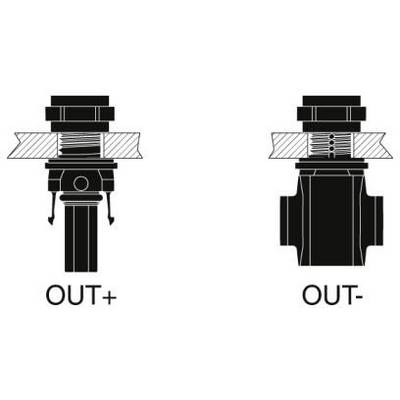

Diagram shows two valves, 'OUT+' and 'OUT-'. On the left: valve with arrows indicating flow direction. On the right: valve without arrows.

1/8

Image similar

Phoenix Contact

Datasheet (PDF)

European union

Unavailable

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

IP65 rating
Ambient temperature (operation): -20 °C - +50 °C.
Cover/door material: Polycarbonate (transparent)
Number of string inputs: 2
Current per string: 16 A.
Number of outputs: 1 (per MPP tracker)
Number of MPP trackers supported: 1
Type of cable entry: SUNCLIX
Cable cross-section String input: 2.5 mm² - 6 mm²
Cable cross-section output: 2.5 mm² - 6 mm²
Switching capacity 32 A (1000 V)

Product type: Generator junction box

Dim: (W x H x D) 180 x 180 x 111 mm

Weight: 2.1630

Content: 1 pc(s)

Width: 180 mm

Height: 180 mm

Depth: 111 mm

System voltage: 1000 V

UKCA: yes

Documents & Downloads

Datasheet

European union

Datasheet 2209749 Phoenix Contact 2404297 SOL-SC-2ST-0-DC-1MPPT-1101 Generator junction box

Datasheet 2209749 Phoenix Contact 2404297 SOL-SC-2ST-0-DC-1MPPT-1101 Generator junction box

User & Safety Instructions

User & Safety Instructions 2209749 Phoenix Contact 2404297 SOL-SC-2ST-0-DC-1MPPT-1101 Generator junction box

Description

Standard-compliant switching device combination thanks to the application of DIN EN 61439.

This text is machine translated.

What kind of Solar Installation Accessories are you looking for?

Generator junction box
