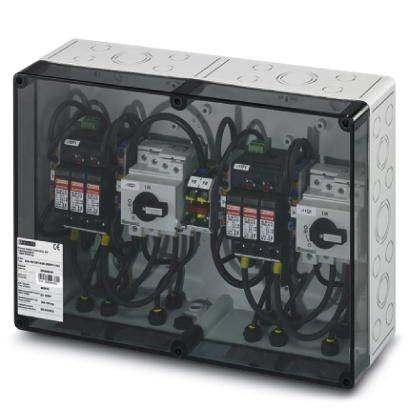

Electrical control cabinet with three circuit breakers and wiring, transparent enclosure.

Image similar

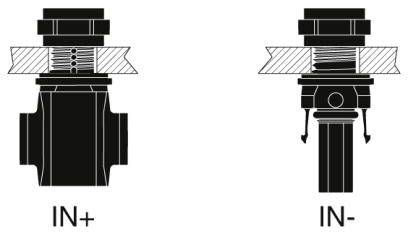

Diagram shows electrical connections: On the left 'IN+' and on the right 'IN-'. Differentiates between positive and negative poles for connections.

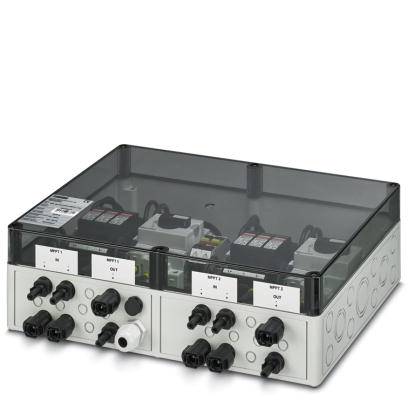

A grey-black electrical distribution box with multiple connections and two switching elements. Suitable for industrial applications.

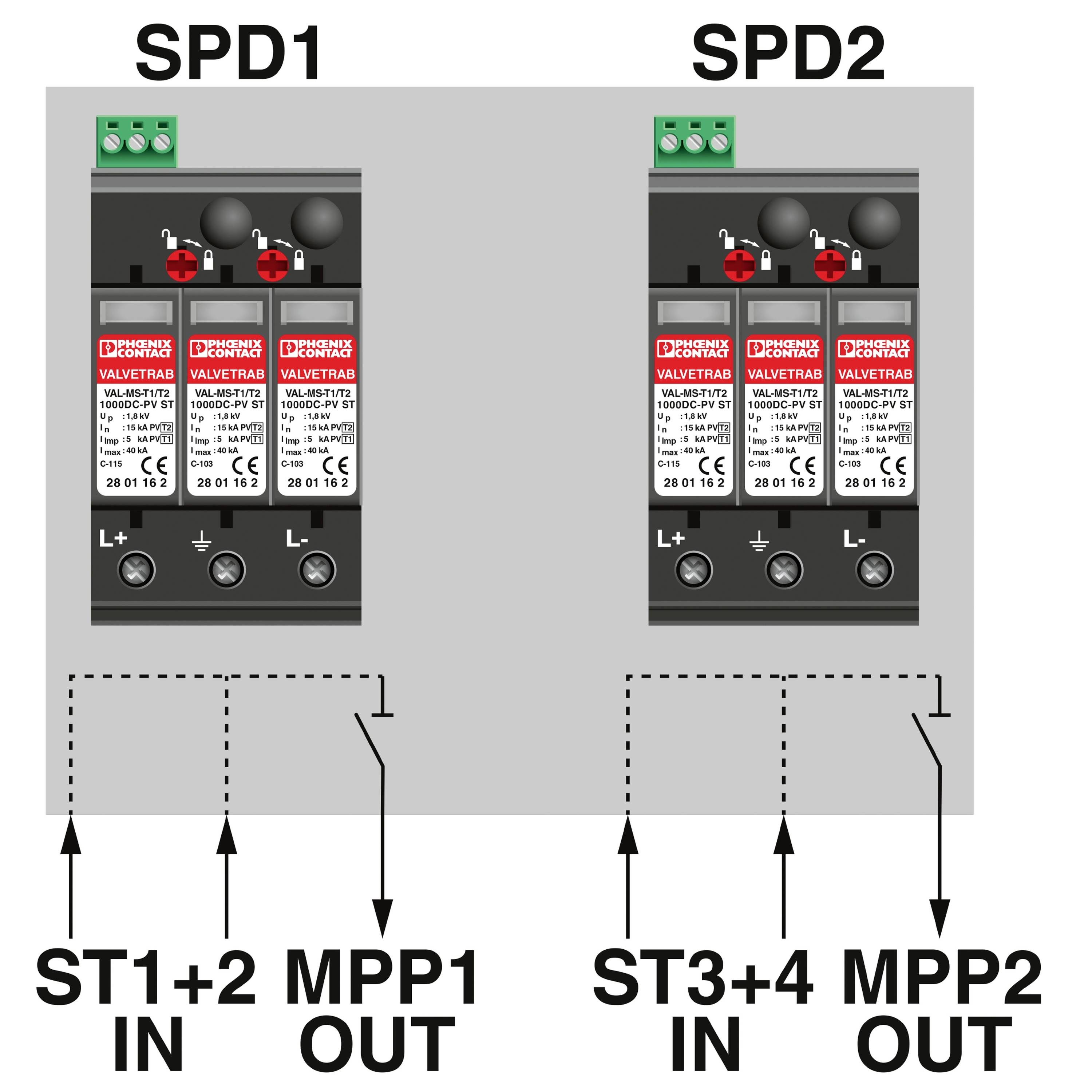

'This is a diagram of an electronic circuit with two SPD modules (SPD1 and SPD2), showing connections to ST1+2, MPP1, ST3+4 and MPP2.'

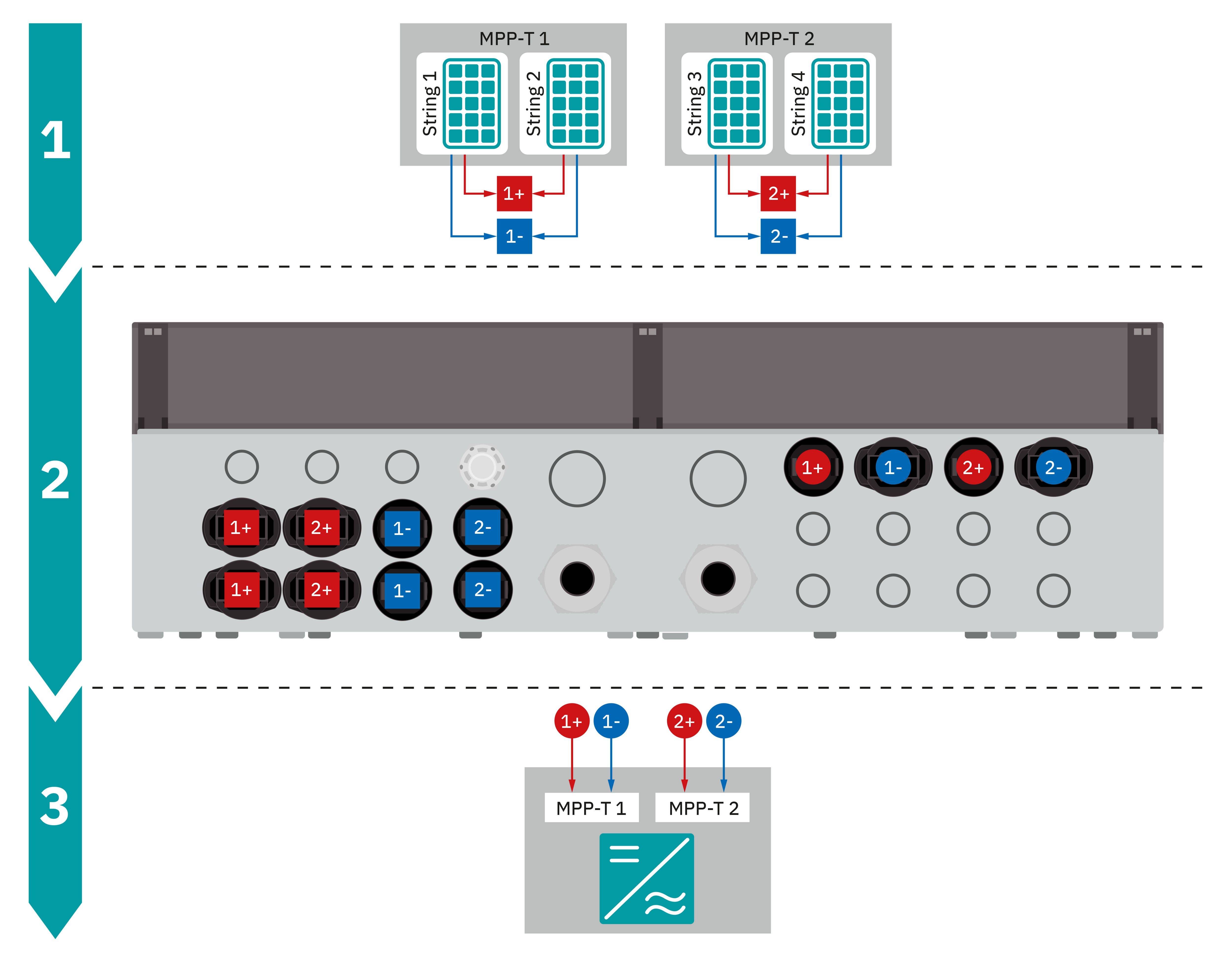

'Schematic of an inverter with two MPP trackers. Two solar module strings at the top, inverter in the middle, connections at the bottom.'

Graphic of an earthing symbol with yellow-green striped marking, two silver circles in the centre, representing an earth connection.

Figure of a safety element with a green and yellow striped pattern and several grey components, including an earthing symbol.

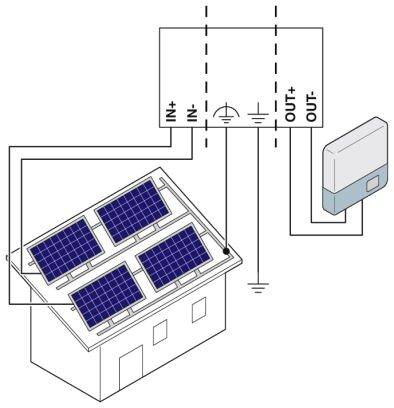

Diagram of a Solar Installation: A house roof with solar panels is connected to an inverter. Energy flow from the panels to the power source.

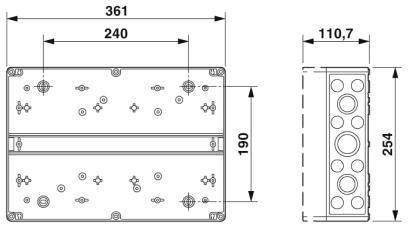

Technical drawing of a rectangular metal plate with drill holes, dimensions: 361x190 mm, side view shows height of 254 mm.

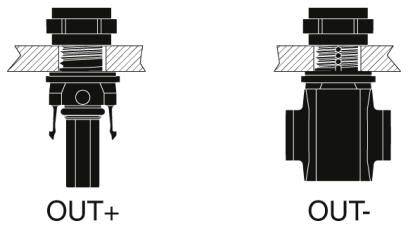

'OUT+' shows a connector with a solid ring and arrows indicating the flow. 'OUT-' shows a connector without additional details.

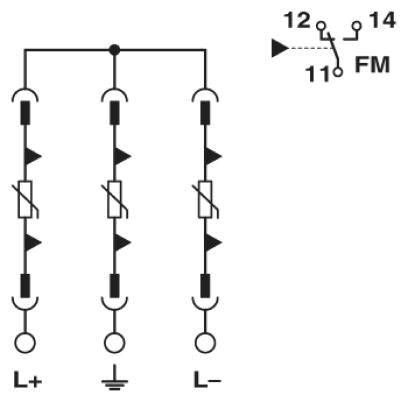

'Electrical circuit diagram with three parallel conductors, each containing a fuse and diode, connected to FM switch at 12 and 14.'

1/11

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Generator connection box

Quick installation and start-up
Standard-compliant combination of switching devices thanks to application of the DIN EN 61439
Application-oriented consulting
Large portfolio of available generator junction boxes

Technical specifications

IP65 rating
Ambient temperature (operation): -20 °C - +50 °C.
Cover/door material: Polycarbonate (transparent)
Number of string inputs: 2 (per MPP tracker)
Current per string: 16 A.
Number of outputs: 1 (per MPP tracker)
Number of MPP trackers supported: 2
Type of cable entry: SUNCLIX
Cable cross-section String input: 2.5 mm² - 6 mm²
Cable cross-section output: 2.5 mm² - 6 mm²
Switching capacity 32 A (1000 V / per MPP tracker)

Product type: Generator junction box

Dim: (W x H x D) 361 x 254 x 111 mm

Weight: 4.8020

Content: 1 pc(s)

Width: 361 mm

Height: 254 mm

Depth: 111 mm

System voltage: 1000 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2209753 Phoenix Contact 2404569 SOL-SC-2ST-0-DC-2MPPT-1101 Generator junction box

User & Safety Instructions

User & Safety Instructions 2209753 Phoenix Contact 2404569 SOL-SC-2ST-0-DC-2MPPT-1101 Generator junction box

Description

In order to optimally protect photovoltaic systems from lightning strikes and overvoltage, the use of generator connection boxes is necessary. The ready-to-install and immediately connected generator connection boxes are reliable system solutions that protect the inverter directly from the DC or AC voltage inputs. Thereby, overvoltage coupling is directly deflected to earthing potential.
