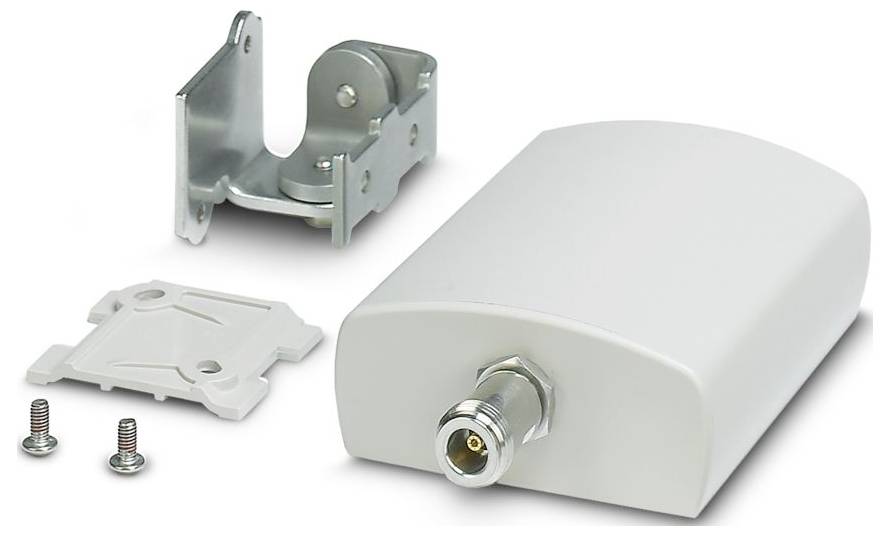

Phoenix Contact 2701186 ANT-DIR-2459-01 Antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type N (female)
- Width 80 mm
- Height: 100 mm
- Ambient conditions: Environmental conditions
- Protection class IP67
- Ambient temperature (operation): -40 °C ... 75 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Standards/regulations: EN 45545-2;NFPA 130;BS 6853
- Note: Fire protection for rail vehicles
- Mounting type: Wall mount;mast mounting
- Shock (operation): According to EN 50125-3, position profile: "Outside the track"
- Vibration (operation): According to EN 50125-3, position profile: "Outside the track"
- Max. Inner inductance Li: Negligible
- Length: 35 mm
- Frequency range: 2.4 GHz ... 2.5 GHz;5.15 GHz ... 5.83 GHz
- Stem wave ratio VSWR in 50-Ω-System: ≤ 2.00
- Material:Lexan EXL 9330;V2A;V2A
- External dimensions: External dimensions
- Delivery: Including mounting bracket and mast clamps
- Connection technology: Connection technology
- Note for application: Only for industrial use
- Installation instructions: External and internal area
- Outer diameter: 25 mm ... 85 mm (mast)
- Other resistance: Seawater resistant
- Usage restriction: Use restriction
- CCCex Note: Use in hazardous areas is not permitted in China.
- Safety specifications: Safety specifications
- Input voltage UI 30 V
- CI capacity: Negligible
- Input current II 600 mA
- Electronic equipment on rail vehicles: Electronic equipment on rail vehicles
- Impedance 50 Ω
- Frequency band:2.4 GHz;5 GHz
- Gain 9 dBi
- Vertical opening angle: 55 ° (2.4 GHz ... 2.5 GHz);55 ° (5.1 GHz ... 5.9 GHz
- Horizontal opening angle: 75 ° (2.4 GHz ... 2.5 GHz);55 ° (5.1 GHz ... 5.9 GHz
- Polarisation: linear, vertical
- Connection cable: No.
- Wind speed 220 km/h
- Maximum power 10.00 W.
- Radiation characteristic: Directed
- Type
ANT-DIR-2459-01
- Product type
Antenna
- Manufacturer part #
2701186
- Dim
(L x W x H) 35 x 80 x 100 mm
- Width
80 mm
- Height
100 mm
- Length
35 mm
- Max. ambient temperature
75 °C
- Min. ambient temperature
-40 °C
- Depth
35 mm
IP67
Documents & Downloads
Datasheet
Datasheet 3579392 Phoenix Contact 2701186 ANT-DIR-2459-01 Antenna
User & Safety Instructions
User & Safety Instructions 3579392 Phoenix Contact 2701186 ANT-DIR-2459-01 Antenna
Description
Directional antenna for wall or mast mounting, 2.4 GHz / 5 GHz, gain: 9 dBi, protection class: IP67, shockproof: IK06, Sea water resistant, connection: N (female), incl. mounting bracket and mast clamps, ATEX- and IECEx-approval
