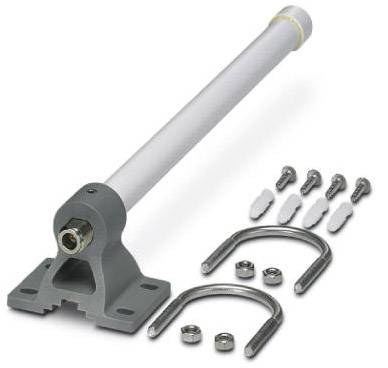

'Antenna mounting kit with pole bracket, U-bolts, screws and wall plugs. For simple antenna installation.'

Image similar

'Antenna mounting kit with pole bracket, U-bolts, screws and wall plugs. For simple antenna installation.'

A coaxial plug made of silver-coloured metal, open at the front for cable connection. Primarily used for antenna or satellite systems.

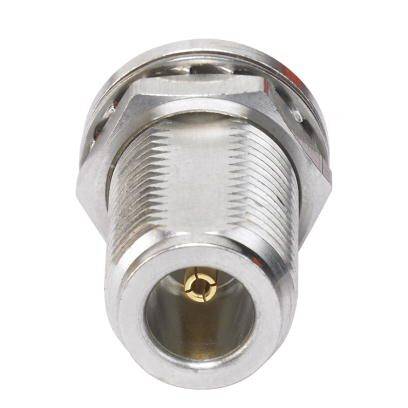

Silver coaxial socket in close-up, showing thread and centre for cable connection. Primarily used in electronic devices.

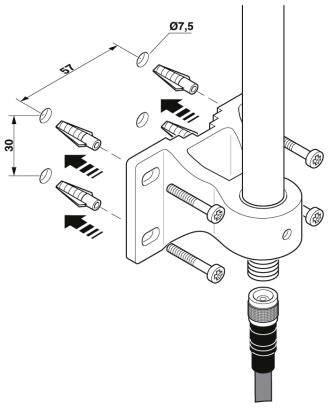

Exploded diagram of a fixing kit. Shows components for mounting a metal post with arrows and dimensions: 57 mm, 30 mm, 7.5 mm.

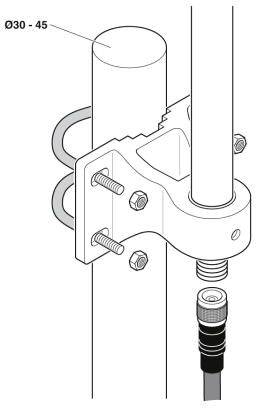

Diagram of a pipe mounting bracket. Shows screws and clamps holding a vertical pipe; suitable for diameter Ø30 - 45.

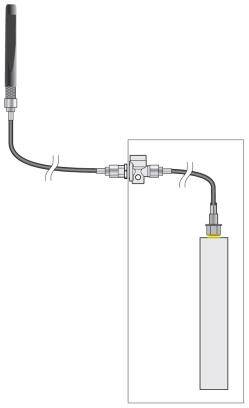

Diagram of an antenna system with connectors and a cylindrical antenna on the right. Cables connecting between them.

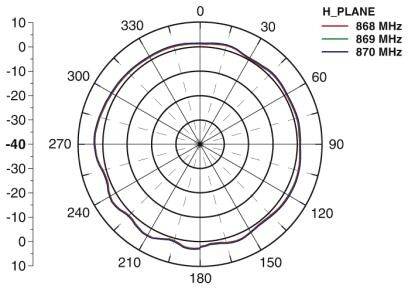

Polar diagram for H_PLANE shows frequencies 868 MHz, 869 MHz, and 870 MHz. Angles in degrees on the outer scale, decibels on the scale.

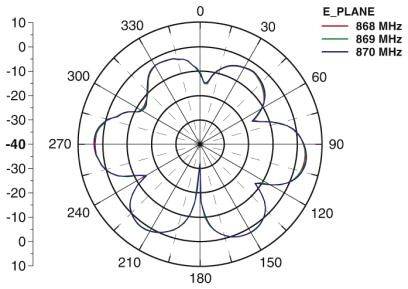

Polar diagram shows E-plane for 868, 869 and 870 MHz. Radial lines mark degree values. Lines show frequency distribution patterns.

1/8

Image similar

Phoenix Contact

Datasheet (PDF)

European union

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Protection class: IP67
Ambient temperature (operation): -40 °C ... 75 °C
Horizontal opening angle 360 °
Vertical opening angle 30 °
Polarisation: linear, vertical
Impedance 50 Ω
Connection type: N (female)
Material: Glass fiber reinforced plastic (antenna housing) / glass fiber reinforced plastic (bracket) / V2A (U-screw)
Mounting type: Mast mounting or wall mounting
Outer diameter: 30 mm ... 45 mm (mast)
Diameter: 20 mm

Product type: Antenna

Type: ANT-OMNI-868-01

Manufacturer part #: 2702136

Height: 620 mm

UKCA: yes

Documents & Downloads

Datasheet

European union

Datasheet 2209811 Phoenix Contact 2702136 Antenna

Datasheet 2209811 Phoenix Contact 2702136 Antenna

User & Safety Instructions

User & Safety Instructions 2209811 Phoenix Contact 2702136 Antenna

Description

For use in hazardous areas. For medium distances. For free moving applications. For multipoint or mesh connections.

This text is machine translated.
