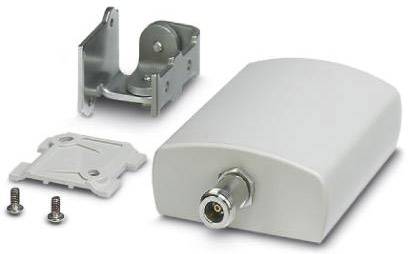

White electronic device with metal mounting bracket and fixing screws, possibly an antenna or signal booster.

Image similar

White electronic device with metal mounting bracket and fixing screws, possibly an antenna or signal booster.

Metallic coaxial connector for electrical connections, front view. Cylindrical shape with threading for secure attachment.

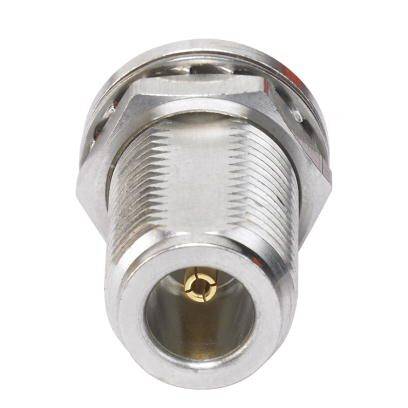

A coaxial TV connection with a metal casing and visible inner conductor, used for connecting cable TV equipment.

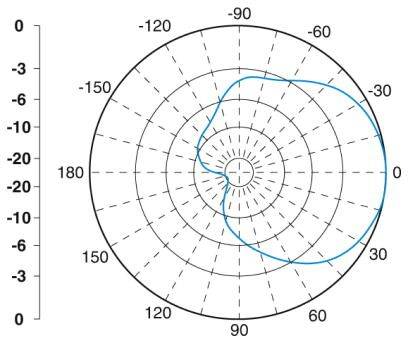

Polar diagram with curve shows data distribution from -180 to +180 degrees, where axes represent strength from -20 to 0.

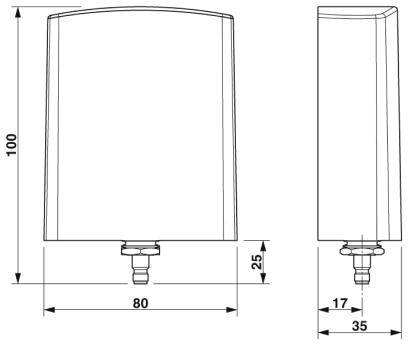

Drawing of a rectangular tap valve with dimensions: width 80 mm, height 100 mm, depth 35 mm. Side and front view.

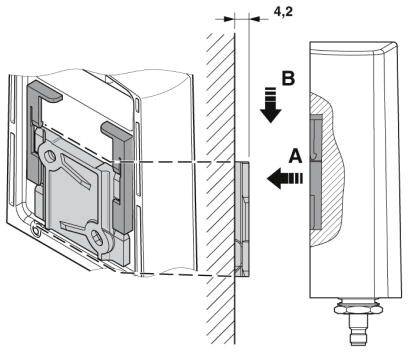

Diagram shows the mounting of a device console to a wall. Two directions are indicated with arrows 'A' and 'B'.

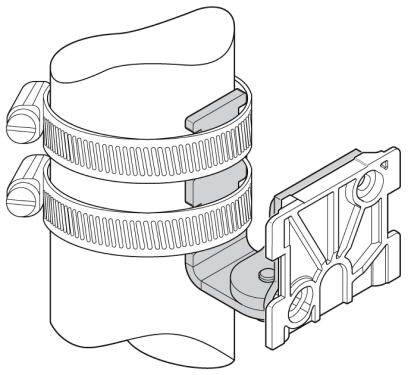

A technical drawing shows a clamp with two loops. The clamp is attached to a pipe and holds a rectangular mounting bracket.

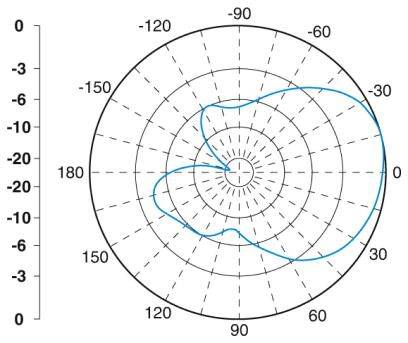

Polar diagram shows data points with angles ranging from -180 to 180 degrees and radial values from -20 to 0, represented by a blue line.

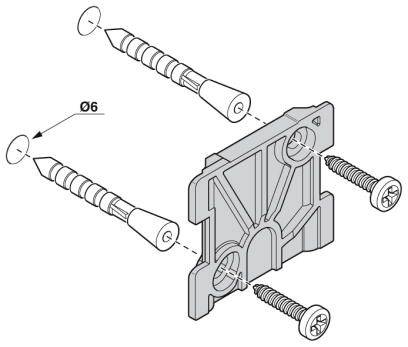

Illustration of an assembly instruction: Two wall plugs and screws are inserted into a plate. The plate has three holes.

1/9

Image similar

Phoenix Contact

Datasheet (PDF)

European union

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Pre-contractual information under the EU Data Act

Technical specifications

Protection class: IP67
Ambient temperature (operation): -40 °C ... 75 °C
Horizontal opening angle 135 °
Vertical opening angle: 90 °
Polarization: Circular clockwise rotation
Impedance 50 Ω
Connection type: N (female)
Material: Lexan EXL 9330 (antenna housing) / V2A (bracket) / V2A (mast bracket)
Mounting type: Mast mounting or wall mounting
Outer diameter 25 mm ... 85 mm (mast)

Product type: Antenna

Type: ANT-DIR-868-01

Manufacturer part #: 2702137

Dim: (L x W x H) 35 x 80 x 101 mm

Width: 80 mm

Height: 101 mm

Length: 35 mm

UKCA: yes

Documents & Downloads

Datasheet

European union

Datasheet 2209812 Phoenix Contact 2702137 Antenna

Datasheet 2209812 Phoenix Contact 2702137 Antenna

User & Safety Instructions

User & Safety Instructions 2209812 Phoenix Contact 2702137 Antenna

Description

For use in hazardous areas. Seawater-resistant. For applications in reflective environments. For stationary or linear moving applications. For point-to-point connections.
