Name: Phoenix Contact 2702184 RAD-RS485-IFS Data gateway RS-485 No. of outputs: 1 x 30.5 V DC 1 pc(s)
Brand: Phoenix Contact
SKU: 2209814

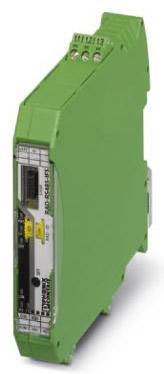

A green, slender electronic component with multiple connectors, possibly a module for control technology or signal processing.

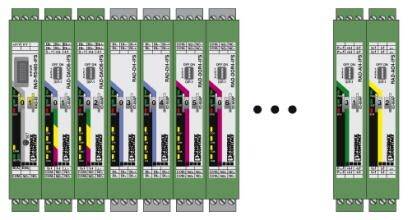

A row of nine green plug-in modules in a control cabinet, partially numbered from '0' to '8', with plug connections at the top and bottom.

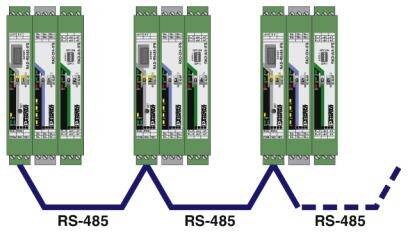

'Diagram of three RS-485 devices in a daisy chain configuration, connected by blue cables. Label: RS-485.'

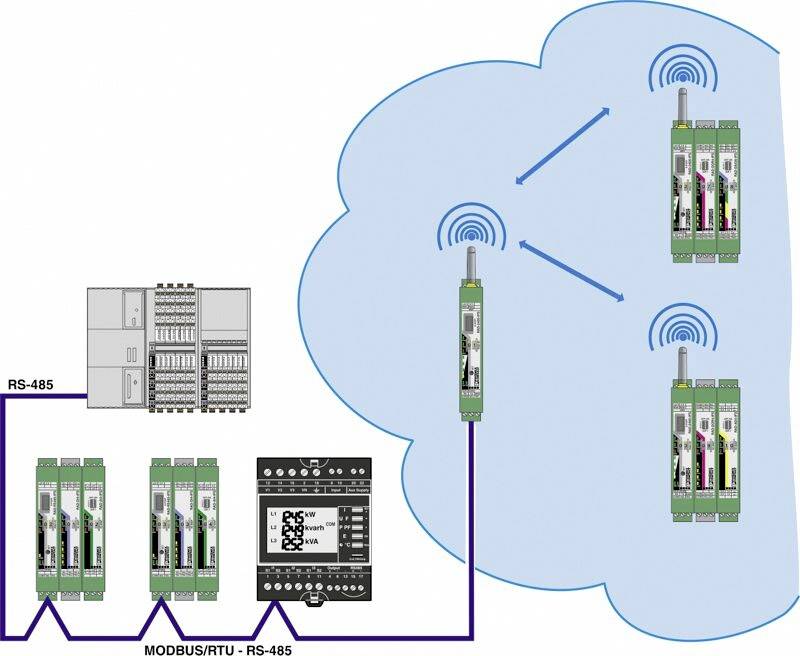

'Diagram shows a communication system with RS-485 and MODBUS/RTU for devices. Connections to radio modules communicating in the cloud.'

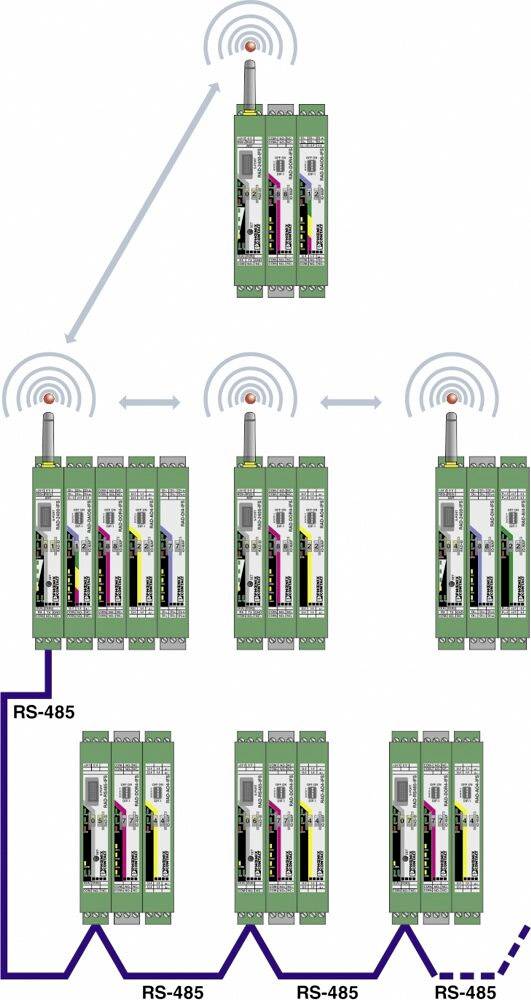

'Diagram of a network of devices with wireless communication and RS-485 connections across three levels, showing data flow.'

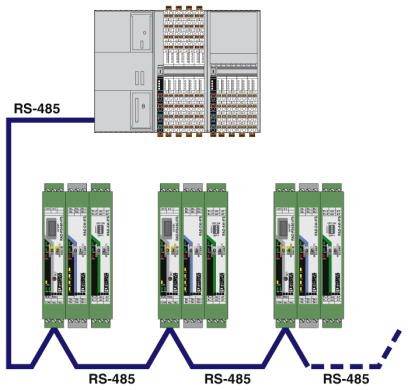

'Diagram of an RS-485 network: A master device connects serially with four subordinate devices in a daisy-chain topology.'

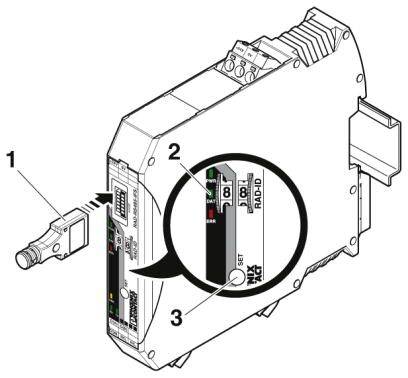

A diagram shows the wiring and settings of an electrical device. Key features include the connection point (1) and the rotary switches (2) for settings.

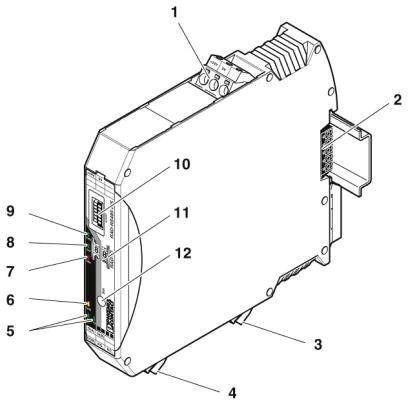

Technical Drawing of an Electrical Device with Labelled Components: 1. Inlet, 2. Mounting Bracket, 3-12. Connections and Indicators.

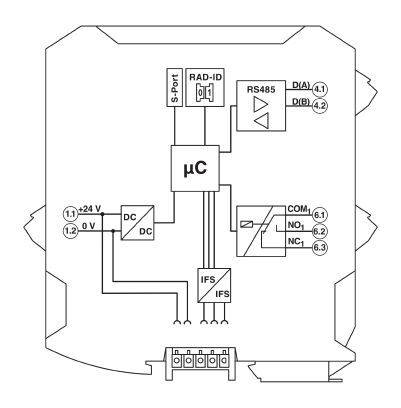

A circuit diagram shows the wiring of a device with connections for RS485, power supply (+24V, 0V) and control lines (COM, NO, NC).

1/9

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Ambient temperature (storage/transport): -40 °C ... 85 °C Depth: 114.5 mm
(0.87 in.) Permissible humidity (operating): 20 % ... 85 %
Altitude: 2000 m
Protection class: IP20
Material casing: PA 6.6-FR
conductor cross-section flexible max.: 2.5 mm²
conductor cross-section flexible min.: 0.2 mm²
conductor cross-section AWG max.: 14
conductor cross-section AWG min.: 24
connection type: Pluggable screw terminal COMBICON:screw connection:S-PORT (socket)
transmission length: ≤ 1200 m
contamination level: 2
overvoltage category: II
conductor cross-section rigid max.: 2.5 mm²
conductor cross-section rigid conductor cross-section rigid rigid fixed min.: Rigid conductor cross-section rigid. 0.2 mm²
Connection technology: 2-wire
data rate: 300 bit/s / 600 bit/s / 1.2 kbit/s / 2.4 kbit/s / 4.8 kbit/s / 9.6 kbit/s / 19.2 kbit/s / 38.4 kbit/s / 57.6 kbit/s / 93.75 kbit/s / 115.2 kbit/s (factory setting: 19.2/8/E/1)

Product type: Data gateway

Interfaces: RS-485

Type: RAD-RS485-IFS

Operating voltage: 30.5 V DC

Max. operating temperature: +70 °C

Min. operating temperature: -40 °C

Operating temperature: -40 up to +70 °C

No. of outputs: 1 x

Dim: (W x H) 17.5 mm x 113 mm

Max. current consumption: 65 mA

Height: 113 mm

Width: 17.5 mm

Manufacturer part #: 2702184

Interfaces: RS-485
Configuration interface

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2209814 Phoenix Contact 2702184 RAD-RS485-IFS Data gateway RS-485 No. of outputs: 1 x 30.5 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2209814 Phoenix Contact 2702184 RAD-RS485-IFS Data gateway RS-485 No. of outputs: 1 x 30.5 V DC 1 pc(s)

Description

Multipoint multiplexer for I/O signals. Up to 99 bus stations in the network. Quick and easy start-up without programming. Can be combined with radio-line radio modules. Modular expandable with up to 32 I/O expansion modules. Extended temperature range -40 °C ... +70 °C.
