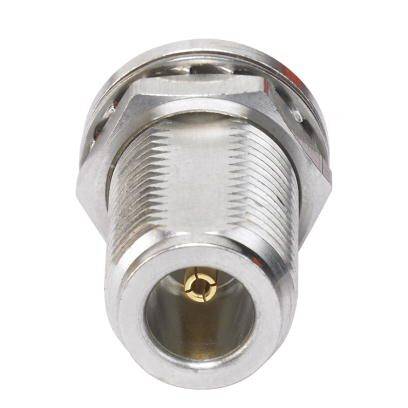

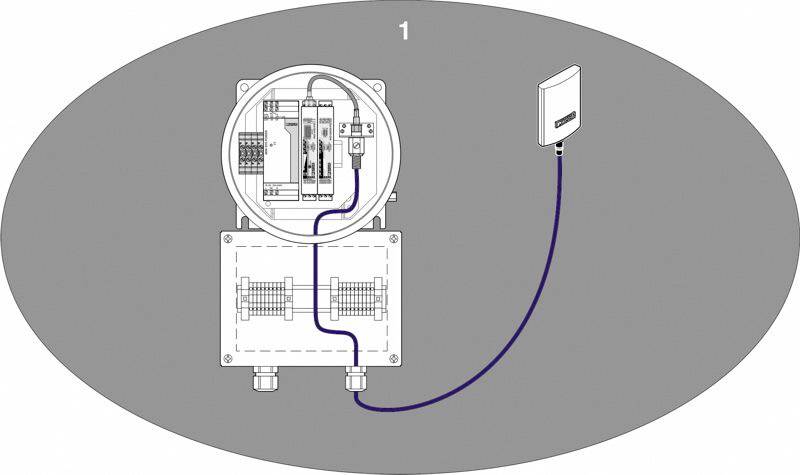

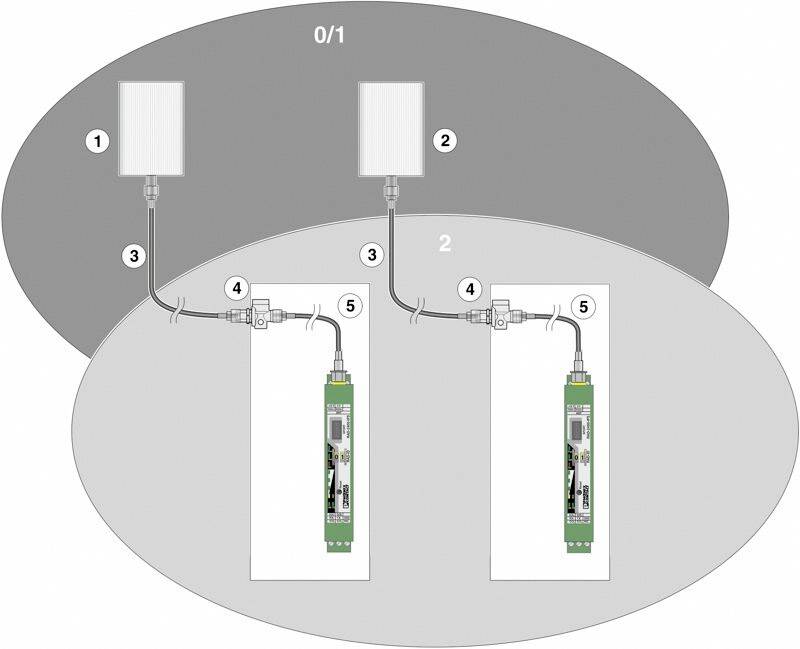

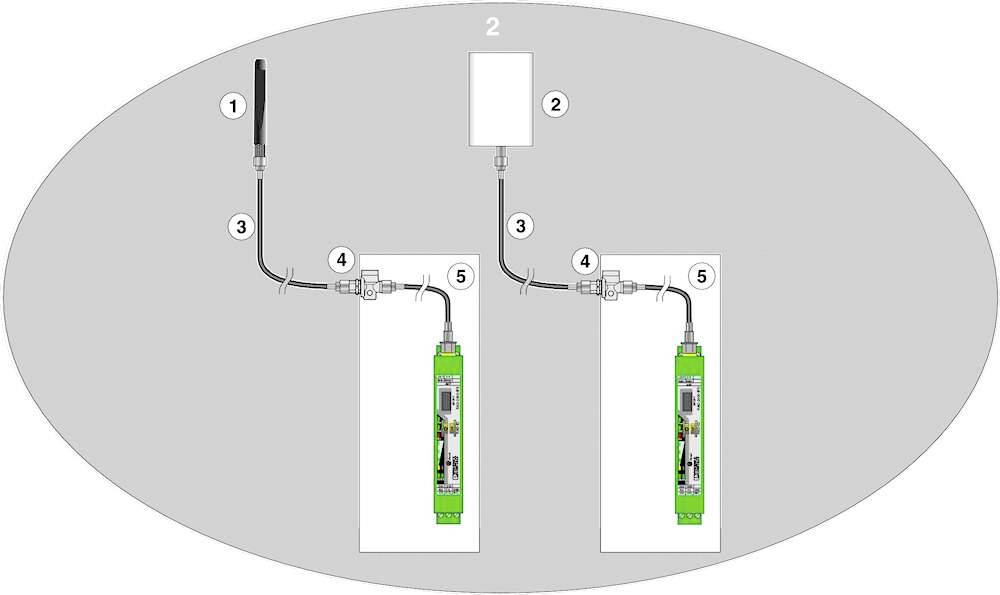

Diagram shows an electrical circuit with two components, connected by a cable. Displays circuits and connections.

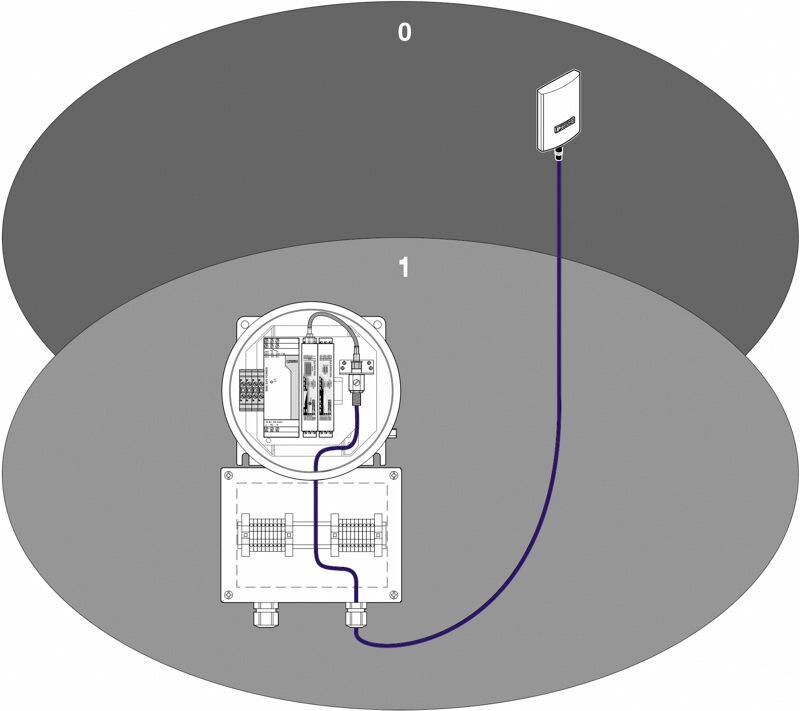

Diagram of a networked device: A device is connected to a sensor via a cable. The background is divided into two areas '0' and '1'.

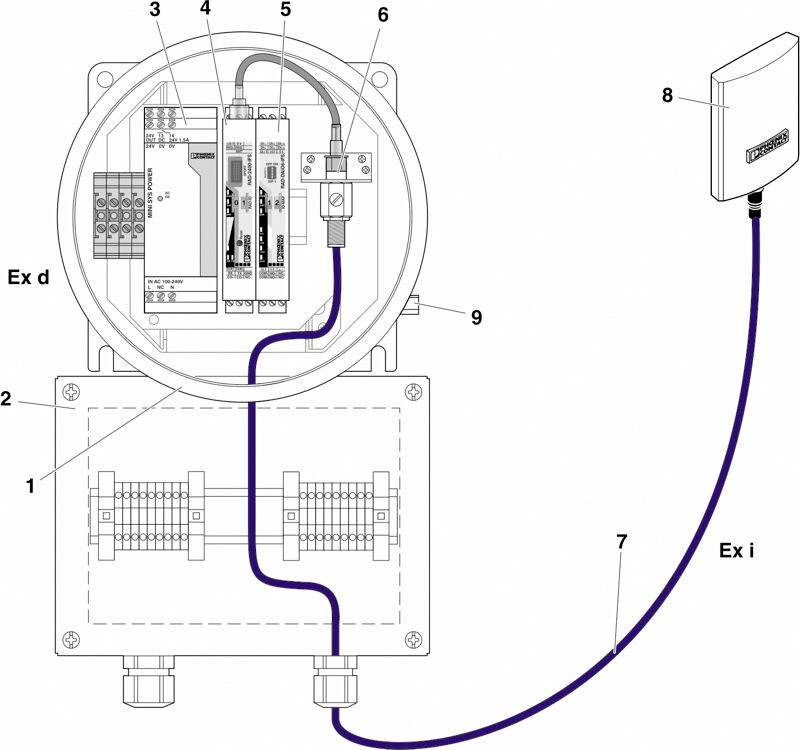

'Diagram of an Ex d enclosure connected to an Ex i device via a cable. Components are numbered and labelled.'

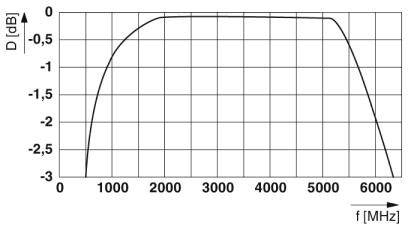

Frequency response diagram shows an almost flat curve between 500 MHz and 5000 MHz with a rise and fall at the extremities.

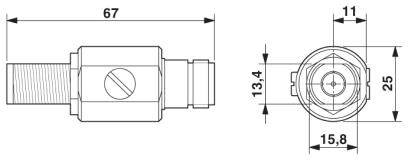

Technical drawing of a mechanical component with dimensions: length 67 mm, diameter 13.4 mm, width 15.8 mm.

1/9

Image similar

Phoenix Contact

Datasheet (PDF)

European union

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

IP65 rating
Ambient temperature (operation): -40 °C ... 75 °C
Impedance 50 Ω
Connection type: N (female) / N (female)
Input power Pi: ≤ 2 W
Maximum error voltage of 253 V AC/DC
Maximum capacity 5.64 pF
Test voltage 2.1 kV AC (50 Hz / 2 s)
Material casing: Nickel-plated brass
Material Housing surface: Nickel
Material inner conductor: CuZn
Material inner conductor surface: Gold
Material Insulating body: PTFE
Material seal: Silicone
Material spring contact: CuSn
Material contact surface: AU

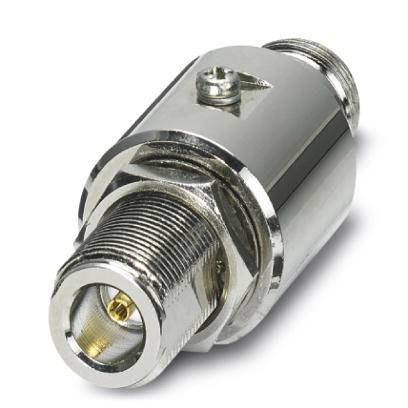

Product type: Antenna RF barrier

Type: BAR-ANT-N-N-EX

Manufacturer part #: 2702198

UKCA: yes

Documents & Downloads

Datasheet

European union

Datasheet 2209816 Phoenix Contact 2702198 Antenna RF barrier

Datasheet 2209816 Phoenix Contact 2702198 Antenna RF barrier

User & Safety Instructions

User & Safety Instructions 2209816 Phoenix Contact 2702198 Antenna RF barrier

Description

International approvals (ATEX, IECEx). Use of standard antennas in the hazardous area of zones 0, 1 and 2.
