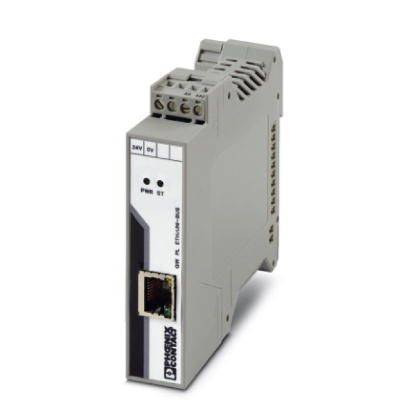

Industrial electronics module with Ethernet connection, ventilation slots, and status indicators, suitable for use in control cabinets.

Image similar

Industrial electronics module with Ethernet connection, ventilation slots, and status indicators, suitable for use in control cabinets.

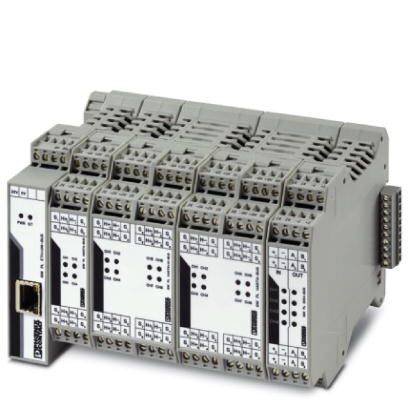

A modular automation device with multiple ports on a white background. It is used for industrial control.

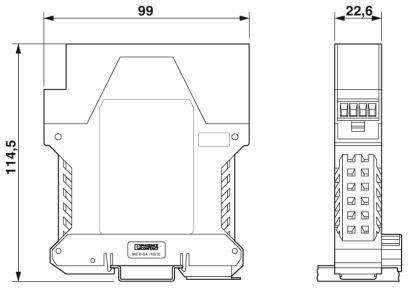

Technical drawing of a rectangular device with dimensions: width 99 mm, height 114.5 mm, depth 22.6 mm.

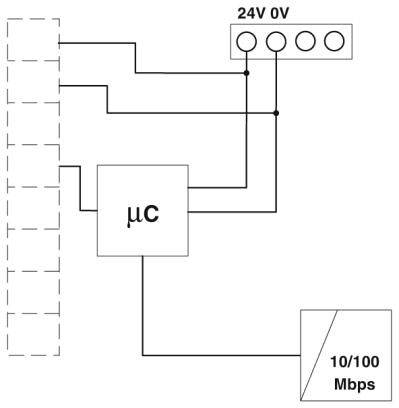

Schematic representation of an electrical circuit with microcontroller (μC), connected to a 24V power source and a network connection for 10/100 Mbps.

1/4

Image similar

Phoenix Contact

Datasheet (PDF)

European union

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Ambient temperature (operation): -40 °C ... 70 °C
Ambient temperature (storage/transport): -40 °C ... 85 °C
Interface: Ethernet 10/100Base-T.
Connection type: RJ45-socket, auto-negotiation and auto-crossing
Typical current consumption: 45 mA (at 24V DC)
Supply voltage range: 19.2 V DC ... 30 V DC
Current consumption max. 62 mA (at 24V DC)
Supported protocols: TCP/IP, HART IP, Modbus/TCP
All mounting positions permitted
Transmission length ≤ 100 m.
Rated output voltage 24 VDC
Maximum output current 3.937 A (per station)
Web-based management: Yes

Product type: Safety gateway

Type: GW PL ETH/BASIC-BUS

Height: 99 mm

Length: 114.5 mm

Width: 22.5 mm

: IP20

Dim: (L x W x H) 114.5 x 22.5 x 99 mm

Manufacturer part #: 2702321

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

European union

Datasheet 2209827 Phoenix Contact 2702321 GW PL ETH/BASIC-BUS Safety gateway

Datasheet 2209827 Phoenix Contact 2702321 GW PL ETH/BASIC-BUS Safety gateway

User & Safety Instructions

User & Safety Instructions 2209827 Phoenix Contact 2702321 GW PL ETH/BASIC-BUS Safety gateway

Description

Ethernet head station for modular gateway with Modbus TCP, HART IP, FDT/DTM. Supports five expansion modules.

This text is machine translated.
