Phoenix Contact 2702324 FL SWITCH 2008 Industrial Ethernet switch
EAN:
Part number:
Item no:
Highlights & Details

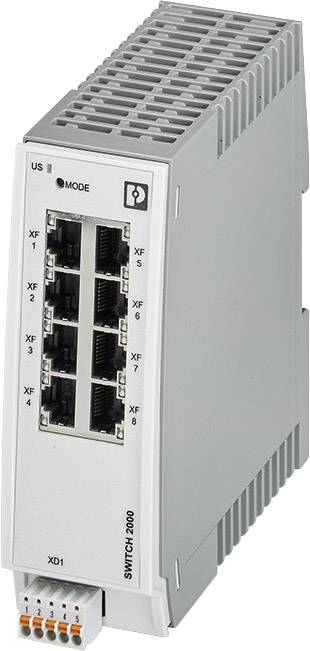

Industrial Ethernet Switch FL SWITCH 2008
Technical specifications
- Product type
Industrial Ethernet switch
- LAN transfer rate
10 MBit/s
100 MBit/s
- Working principle
Managed switch
- Ethernet ports
8
- Power supply (LOV)
via terminal
- Weight
323.000 g
- Width
45 mm
- Height
130 mm
- Depth
115 mm
- Type
FL SWITCH 2008
IP20
- Operating voltage
24 V DC
- Current consumption
180 mA
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1830256 Phoenix Contact 2702324 FL SWITCH 2008 Industrial Ethernet switch
Information
Information 1830256 Phoenix Contact 2702324 FL SWITCH 2008 Industrial Ethernet switch
Description
The Managed Switches of the variants 2000 and 2100 offer optimal range of functions for use in applications with requirements for simple configuration and diagnostics of the network.
Features:
· Loop protection via Rapid Spanning Tree Protocol (RSTP)
· Port-based DHCP Server
· Configuration memory (SD-card)
· IGMP Snooping/querier
· Support of PROFINET and EtherNet/IP TM
This text is machine translated.
Features:
· Loop protection via Rapid Spanning Tree Protocol (RSTP)
· Port-based DHCP Server
· Configuration memory (SD-card)
· IGMP Snooping/querier
· Support of PROFINET and EtherNet/IP TM
This text is machine translated.
