Buy Phoenix Contact 2702863 RAD-2400-IFS-JP PLC ethernet gateway

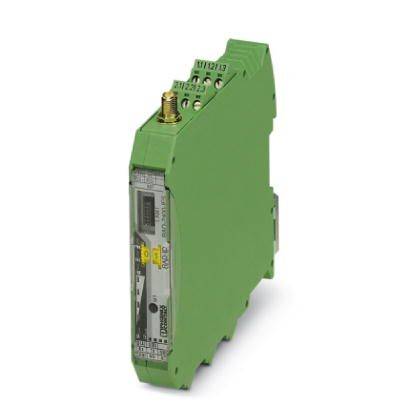

A green, rectangular electronic device with multiple ports on top. It is used for industrial signal processing.

Image similar

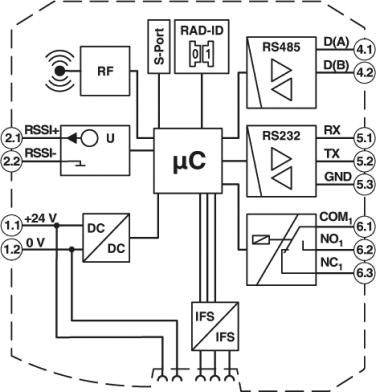

Diagram of an electronic circuit plan with RF, RS485, and RS232 connections, microcontroller, and various interfaces.

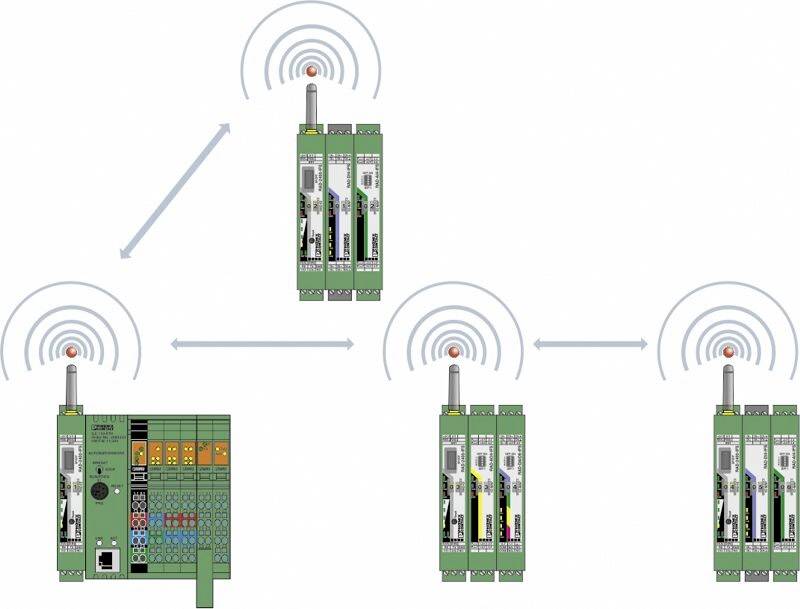

The image shows a network of four green modules wirelessly connected to each other. The arrows begin in the top right corner.

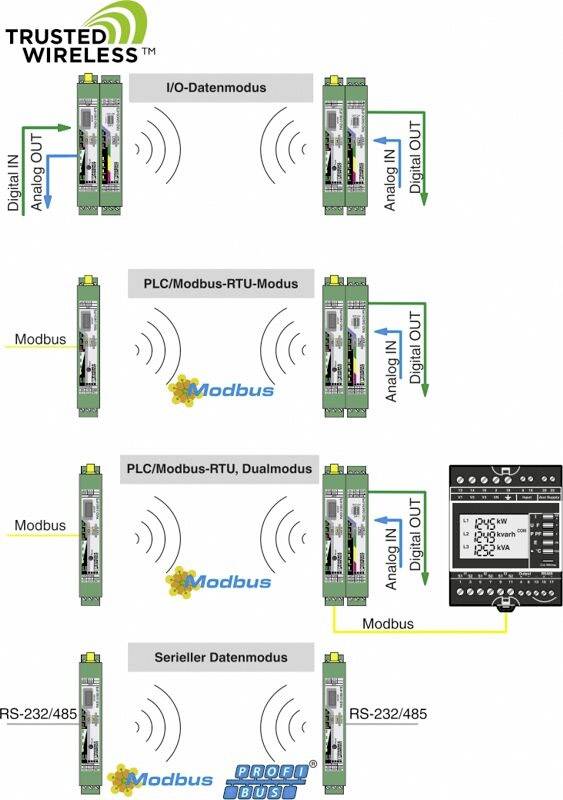

'Representation of a communication system with Modbus and PROFIBUS, showing digital and analogue inputs/outputs.'

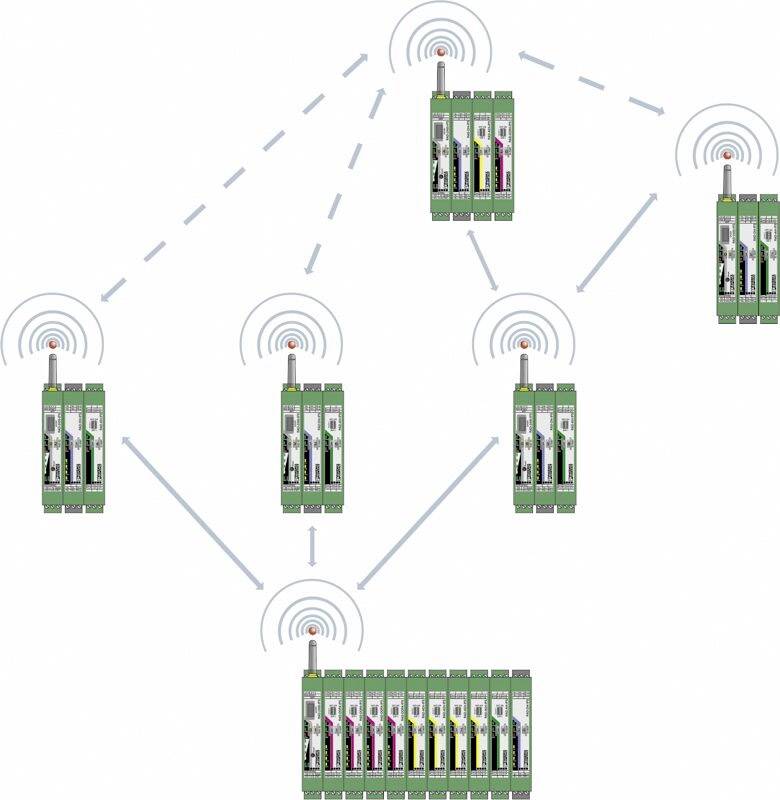

A diagram shows a wireless communication network between several green devices connected via radio waves.

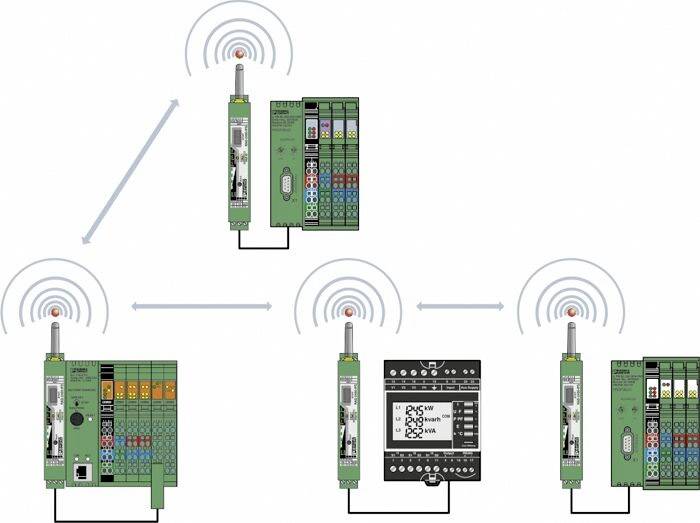

A block diagram shows five electronic modules communicating wirelessly with each other, represented by wavy lines.

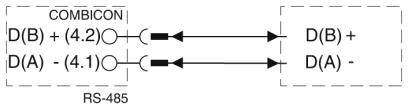

Diagram shows RS-485 connection with COMBICON connector. D(B)+ from (4.2) to D(B)+, and D(A)- from (4.1) to D(A)-.

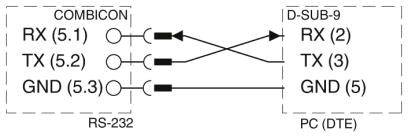

Circuit diagram shows an RS-232 wiring between COMBICON and D-SUB-9: RX (5.1 to 2), TX (5.2 to 3), GND (5.3 to 5).

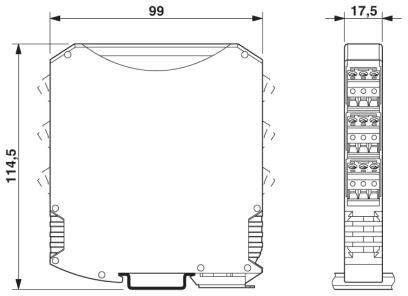

Technical drawing of an electronic device with dimensions: Width 99 mm, Height 114.5 mm, Depth 17.5 mm. Front and side view.

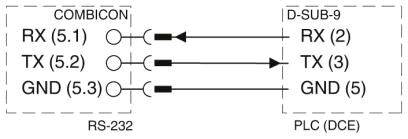

'Diagram shows the connection of COMBICON RS-232 to D-SUB-9 PLC. RX, TX and GND are interconnected via arrows, marked with pins.'

1/10

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Protection class: IP20
Ambient temperature (storage/transport): -40 °C - +85 °C.
Overvoltage category II
Material casing PA 6.6-FR
SUPPLY VOLTAGE RANGE 19.2 V/DC - 30.5 V/DC
Antenna connection: RSMA (female)
Frequency: 2400 MHz
Frequency range: 2.4002 GHz/ 2.4785 GHz
Number of channel groups: 8
Number of channels per group: 55
Channel spacing 1.3 MHz
Conductor cross-section 0.2 mm² - 2.5 mm²
Wire cross-section AWG: 24 - 14
Wire stripping length: 7 mm
Tightening torque 0.6 Nm
Screw thread: M3

Type: RAD-2400-IFS-JP

Product type: PLC ethernet gateway

Current consumption: 6 A

Manufacturer part #: 2702863

Type: Screw connector

Dim: (L x W x H) 114.5 x 17.5 x 116 mm

Operating temperature: -40 °C (min)

Min. operating temperature: -40 °C

Width: 17.5 mm

Height: 116 mm

Length: 114.5 mm

Interfaces: RS-232, RS-485, configuration interface

Max. ambient temperature: +70 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 2209883 Phoenix Contact 2702863 RAD-2400-IFS-JP PLC ethernet gateway

User & Safety Instructions

User & Safety Instructions 2209883 Phoenix Contact 2702863 RAD-2400-IFS-JP PLC ethernet gateway

Description

License-free 2.4 GHz frequency band. Several kilometers range through adjustable data rates of the radio interface. Quick and easy start-up without programming. High reliability through Trusted Wireless 2.0 technology (AES encryption, frequency hopping and coexistence management). Mesh networks up to 250 subscribers. Integrated RS-232/RS-485 interface. Modular expandable with up to 32 I/O expansion modules. Extended temperature range -40 °C ... +70 °C.

This text is machine translated.
