Buy Phoenix Contact 2702875 ILB BT ADIO MUX I/O module

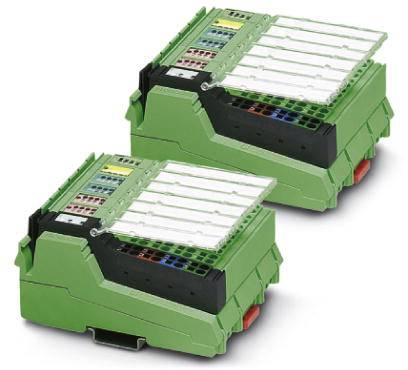

Two green, electronic devices with modular components and connectors. They are stackable and have coloured slots.

Image similar

'Schematic diagram of a voltage monitoring circuit with microcontroller (µC), analogue and digital inputs and outputs, voltage regulator from 24V to 3.3V and 15V.'

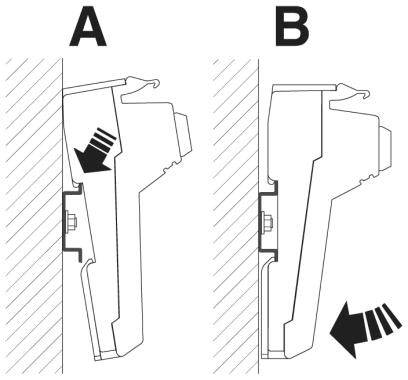

Diagram shows two drawings of devices: A moving downwards, B tilting backwards, mounted on a wall.

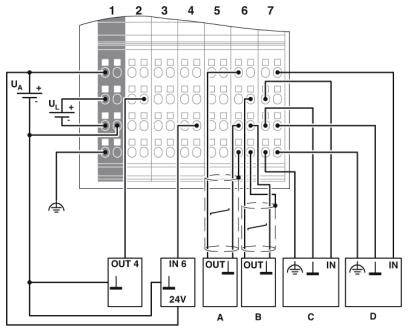

Circuit diagram of an electrical control unit with seven connection points (1-7). Connections to four modules (A-D) are shown.

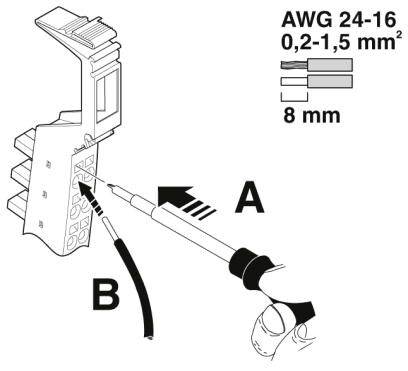

The illustration shows two tools, A and B, working on an electrical terminal block. A indicates pressing, while B demonstrates inserting the cable.

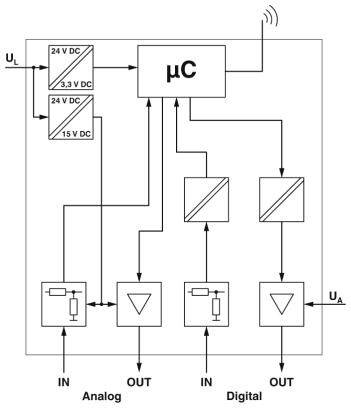

'Schematic Diagram: Microcontroller (µC) controlling analogue and digital signal units, with 24V, 3.3V and 15V DC voltage inputs, showing signal flow and connectivity.'

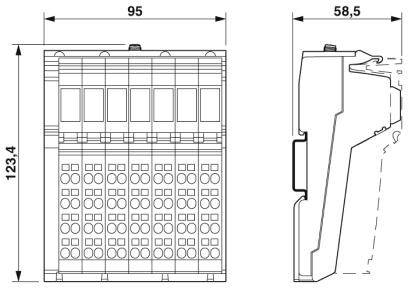

Technical drawing of a device with dimensions: Width 95 mm, Height 123.4 mm, Depth 58.5 mm. Front and side views shown.

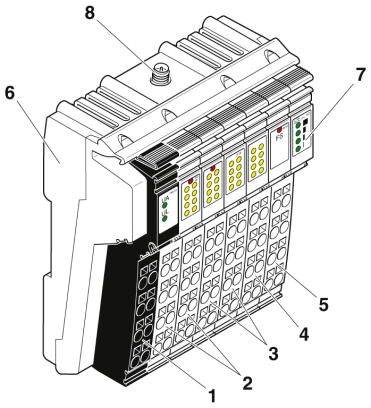

Drawing of an electronic module with multiple slots. Numbered areas indicate connections and indicator lights.

1/8

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Protection class: IP20
Ambient temperature (storage/transport): -25 °C - +85 °C.
Air pressure (operation): 795 hPa - 1080 hPa
Wireless standard: Bluetooth 4.0 based
Modulation type: GFSK (Gaussian Frequency Shift Keying)
Antenna connection type: RSMA (female)
Frequency range: 2,402 GHz/ 2.48 GHz
Transmission power 5 dBm
Supply voltage 24 V/DC
Protective labeling: Reverse polarity protection, overvoltage protection
Digital inputs Connection type: Tension spring connection
Connection method: 1-conductor
Number of digital inputs: 16
Nominal input voltage 24 V/DC
Number of digital outputs: 16
Digital outputs Connection type: Tension spring connection
Protective circuit: Short-circuit protection, overload protection, low-voltage protection
Nominal output voltage 24 V/DC
Nominal load lamps: 12 W
Number of analogue inputs: 2
Input signal current: 0 mA - 20 mA
Input resistance current input: 50 Ω
Input signal voltage: 0 V - 10 V.
Input resistance Voltage input: 130 kΩ
Number of analogue outputs: 2
DAC resolution: 12 bits
Output signal current: 0 mA - 20 mA
Material casing PA 6.6-FR
Mounting type: Mounting rail
Colour: green
Net weight 630 g

Type: ILB BT ADIO MUX

Product type: I/O module

Current consumption: 60 mA

Manufacturer part #: 2702875

Dim: (L x W x H) 57 x 95 x 123.4 mm

Outputs: 8 A

Inputs: 2.3 mA

Width: 95 mm

Height: 123.4 mm

Length: 57 mm

Interfaces: Bluetooth 4.0 based

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2136547 Phoenix Contact 2702875 ILB BT ADIO MUX I/O module

User & Safety Instructions

User & Safety Instructions 2136547 Phoenix Contact 2702875 ILB BT ADIO MUX I/O module

Description

Ranges 50 m ... 100 m in industrial halls with omnidirectional antennas and up to 400 m in the open with directional antennas. Fast connection and signal transmission.
