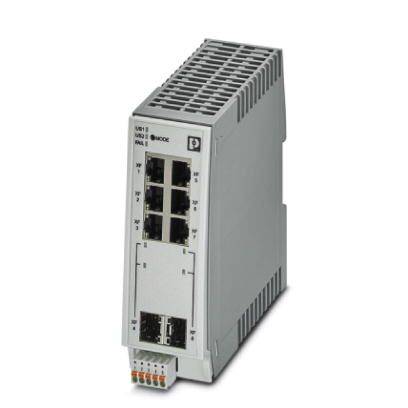

Phoenix Contact 2702969 FL SWITCH 2206-2SFX Network switch 6 ports 10 / 100 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting type: Mounting rail
- Wire stripping length: 9 mm
- Transmission physics: Copper
- Type AX: Book design
- Conductor cross-section rigid: 0.25 mm² - 1.5 mm²
- Conductor cross-section flexible: 0.25 mm² - 1.5 mm²
- Wire cross-section AWG: 24 - 16
- Signal LEDs: Data reception, link status
- Connection type: Push-in spring connection
- Material casing: Fiber-reinforced polycarbonate
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
- Transfer rate
10 / 100 MBit/s
- Working principle
Managed switch
- Ethernet ports
6
- SFP ports
2 x
- 10/100 Mbps ports
6 x
- Port type
Ethernet 10/100 MBit/s RJ45 screened
- MAC addresses
8000
- Weight
439 g
- Width
45 mm
- Height
130 mm
- Depth
115 mm
- Type
FL SWITCH 2206-2SFX
- Interfaces
RJ45
IP20
- Operating voltage
24 V DC
- Current consumption
144 mA
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
- Port
6 ports
- Operating voltage
24 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209894 Phoenix Contact 2702969 FL SWITCH 2206-2SFX Network switch 6 ports 10 / 100 MBit/s
Datasheet 2209894 Phoenix Contact 2702969 FL SWITCH 2206-2SFX Network switch 6 ports 10 / 100 MBit/s
User & Safety Instructions
User & Safety Instructions 2209894 Phoenix Contact 2702969 FL SWITCH 2206-2SFX Network switch 6 ports 10 / 100 MBit/s
Description
The hub makes possible a fast and economical extension of Ethernet Network It has eight or sixteen Twisted Pair ports, which can be used for the connection of further main segments or terminals. Particularly suitable for special automatic protocols like e.g. the FL Net. The FL HUB 8/16 TX-ZF supports both Ethernet with 10 MBit/s and also with 100 MBit/s. The hub regenerates the received data telegrams and sends it to remaining ports A port allocation switch is found for the port 5 on the hub The transmission and reception lines are exchanged by switching the switch while maintaining the polarity at port 5 Thus can be passed without Crossover cables for the connection of main accounts
