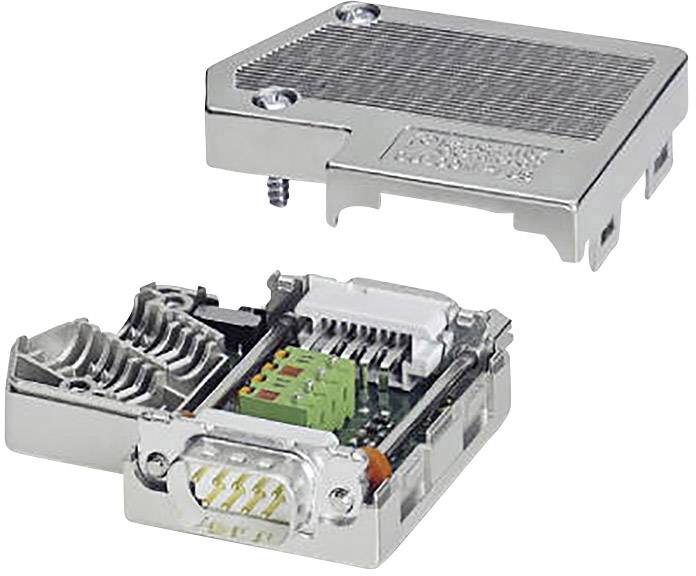

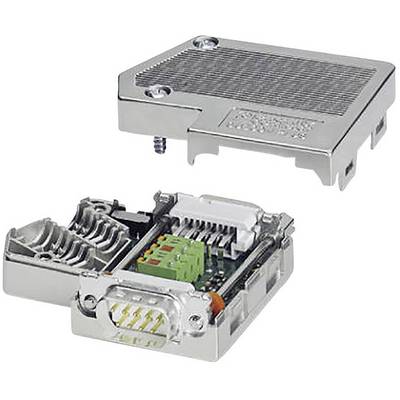

Phoenix Contact 2744403 Sensor/actuator data cable Plug, right angle No. of pins (RJ): 9 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator data cable
Connector type
Plug, right angle
Connector standard
Bus connector
Connection side B
Customisable
No. of pins
9
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
14-day return policy included
Technical specifications
- Type
SUBCON-PLUS-PROFIB/PG
- Product type
Sensor/actuator data cable
- Connector type
Plug, right angle
- Connector standard
Bus connector
- Connection side B
Customisable
- No. of pins
9
- Nominal voltage
5 V
- Nominal current
0.10 A
- Nominal current - rounded value
100 mA
- Connector cross-section (max.)
0.12 mm²
- Connection
Screw terminal
- Min. temperature
-20 °C
- Max. temperature
+75 °C
- Manufacturer part #
2744403
- Content
1 pc(s)
- Number of pins
9
9
Male
- UKCA
not relevant
