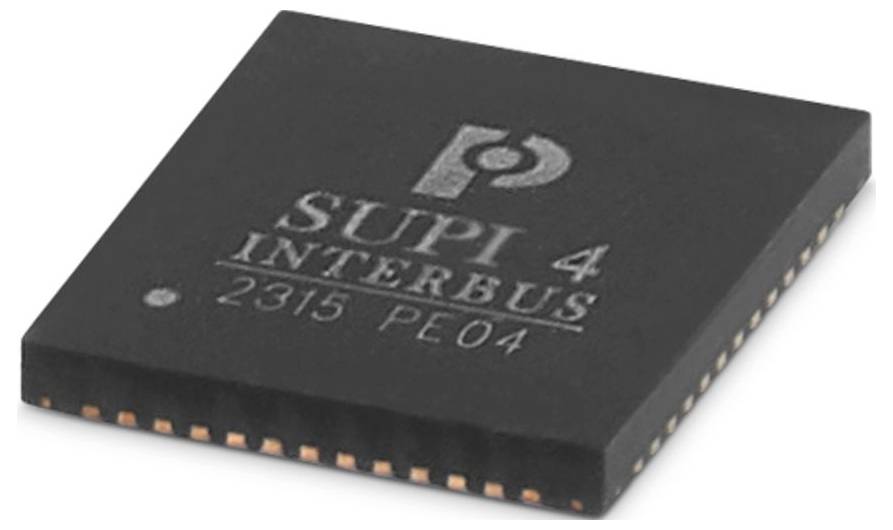

Phoenix Contact 2746744 IBS SUPI 4 QFN Slave protocol chip
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: QFN 52 (with copper block)
- Connection type: Remote bus, peripheral bus or installation remote bus
- Width 8 mm
- Height: 0.9 mm
- Depth: 8 mm
- Ambient conditions: Environmental conditions
- IP00 protection
- Ambient temperature (operation): -40 °C ... 85 °C (at max. 75 % humidity in operation)
- Ambient temperature (storage/transport): -65 °C ... 150 °C (at max. 60 %)
- Length: 8 mm
- Note for application: Only for industrial use
- Supply: Supply
- Typical current consumption 20 mA
- Module
- Internal data length: 64 bytes IN / 64 bytes OUT
- IC SUPPLY VOLTAGE 3.3 VDC ±10 % (DC)
- INTERBUS: INTERBUS
- User interface: MFP interface, digital I/O (16 IN/16 out, 32 IN, 32 out), parallel and serial port for microprocessor
- Product type
Slave protocol chip
- Type
IBS SUPI 4 QFN
- Height
0.9 mm
- Length
8 mm
- Width
8 mm
IP00
- Dim
(L x W x H) 8 x 8 x 0.9 mm
- Manufacturer part #
2746744
- Type
QFN 52 (with copper block)
- Content
500 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579449 Phoenix Contact 2746744 IBS SUPI 4 QFN Slave protocol chip
User & Safety Instructions
User & Safety Instructions 3579449 Phoenix Contact 2746744 IBS SUPI 4 QFN Slave protocol chip
Description
INTERBUS Slave protocol chip
