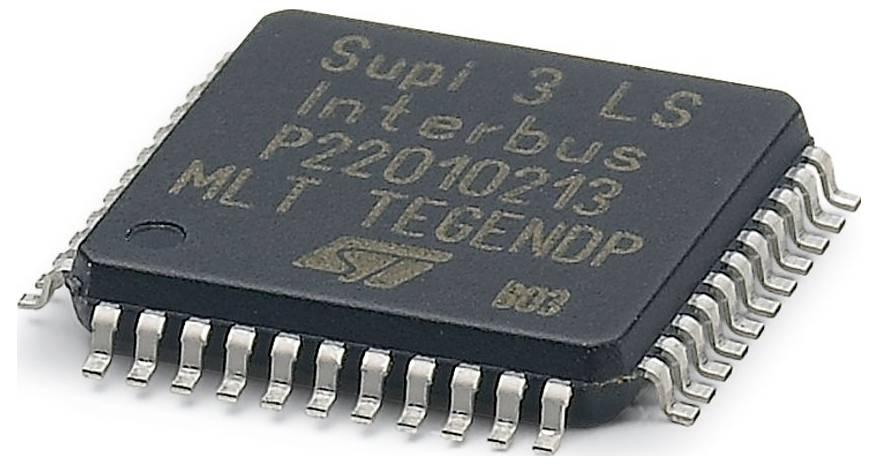

Image similar

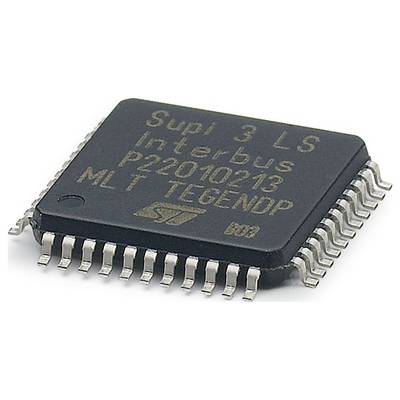

Image similar
Phoenix Contact 2746977 IBS SUPI 3 LS Slave protocol chip
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- TQFP 44 type
- Connection type: Long-distance bus/local bus
- Width: 12 mm
- Depth: 12 mm
- Ambient conditions: Environmental conditions
- IP00 protection
- Ambient temperature (operation): -40 °C ... 85 °C (at max. 75 % humidity in operation)
- Ambient temperature (storage/transport): 5 °C ... 30 °C (at max. 60 %)
- Length: 12 mm
- Note for application: Only for industrial use
- Supply: Supply
- Typical current consumption 40 mA
- Module
- Internal data length: 32 bit internal, external expansion possible
- IC SUPPLY VOLTAGE 5 VDC ±10 % (DC)
- INTERBUS: INTERBUS
- Product type
Slave protocol chip
- Type
IBS SUPI 3 LS
- Length
12 mm
- Width
12 mm
IP00
- Dim
(L x W) 12 mm x 12 mm
- Manufacturer part #
2746977
- Type
TQFP 44
- Content
160 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579452 Phoenix Contact 2746977 IBS SUPI 3 LS Slave protocol chip
User & Safety Instructions
User & Safety Instructions 3579452 Phoenix Contact 2746977 IBS SUPI 3 LS Slave protocol chip
Description
INTERBUS Slave protocol chip
