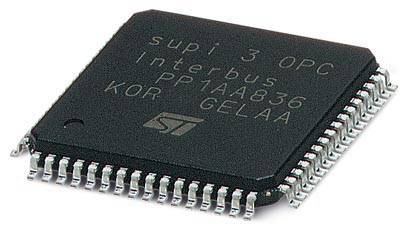

Phoenix Contact 2746980 IBS SUPI 3 OPC Slave protocol chip
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Ambient temperature (operation): -40 °C ... 85 °C (at max. 75% humidity in operation)
- Ambient temperature (storage/transport): 5 °C ... 30 °C (at max. 60 %)
- Interface: Interbus
- Connection type: Remote bus/local bus or fiber optic remote bus
- User interface: MFP interface, digital I/O (2-8 IN/OUT, 16 IN/16OUT), SPI master interface (direct serial link to ADC/DACs) and serial microprocessor interface
- Typical current consumption: 40 mA (without analogueue control)
- IC SUPPLY VOLTAGE 5 V DC ±10% (DC)
- Internal data length: 4 bytes internal, external extension up to 64 bytes possible
- Design: TQFP 64 (with copper block)
- Product type
Slave protocol chip
- Type
IBS SUPI 3 OPC
- Height
1.2 mm
- Length
14 mm
- Width
14 mm
- Dim
(L x W x H) 14 x 14 x 1.2 mm
- Manufacturer part #
2746980
- Content
90 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209906 Phoenix Contact 2746980 IBS SUPI 3 OPC Slave protocol chip
Datasheet 2209906 Phoenix Contact 2746980 IBS SUPI 3 OPC Slave protocol chip
User & Safety Instructions
User & Safety Instructions 2209906 Phoenix Contact 2746980 IBS SUPI 3 OPC Slave protocol chip
Description
Interbus slave protocol chip
