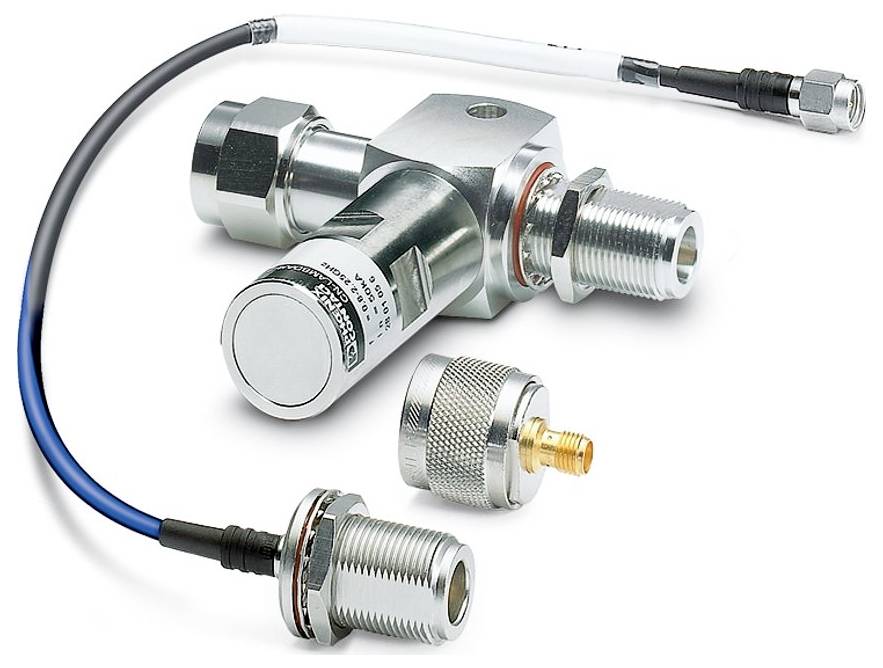

Phoenix Contact 2800491 CSMA-LAMBDA/4-2.0-BS-SET Surge protection device 6 kA Piece 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- IEC TEST CLASS C2; C3; D1
- Design: Adapter plug
- Number of poles: 2
- Message Surge Protection Faulty: None
- Connection type: screw terminals.
- Tightening torque 1.5 Nm
- Width 84.8 mm
- Height: 25 mm
- Depth: 81.5 mm
- Colour: Nickel colored
- Material housing HPb59-1
- Mechanical Data: Mechanical Data
- Open side wall: No.
- Direction of effect: Line-shield/earth ground
- Rated current 2 A (25 °C)
- Total leakage surge current ITtotal (8/20) µs 6 kA
- Output voltage limitation at 1 KV/µs (wire-earth) static: ≤ 1 V
- Protection level Up (wire-earth): ≤ 5 V (C1 - 1 kV / 500 A);≤ 25 V (C2 - 10 kV / 5 kA);≤ 15 V (6 kV / 3 kA)
- Surge current (Wire Earth) C2 - 10 kV / 5 kA;D1 - 1 kA
- Ambient conditions: Environmental conditions
- Protection class IP55
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Altitude: ≤ 2000 m (amsl)
- Standards/regulations EN 61643-21
- Note:2001 + A1:2009
- Mounting type: Connection-specific intermediate plugging
- Insulation properties: Insulation properties
- Over voltage category III
- Pollution level: 2
- Nominal impulse surge current In (8/20) µs (wire-ground): 6 kA
- Insertion loss AE, asym.: ≤ 1 dB (0.8 GHz ... 2.25 GHz
- Material housing surface: Cu-Sn-Zn
- Material contact surface Au
- Material insulating body PTFE
- Spring contact material QSn6.5-0.1
- Nominal suppression current In (8/20) µs (wire shield) 6 kA
- Frequency range: 0.8 GHz ... 2.25 GHz
- Stem wave ratio VSWR in the 50-Ω-system: ≤ 1.20 (0.8 GHz ... 2.25 GHz);≤ 1.10 (1.7 GHz ... 2.1 GHz
- Permissible RF power Pmax with VSWR=xx (50 Ohm system): ≤ 110 W (VSWR = 1.0 / 40 °C);≤ 60 W (VSWR = 1.0 / 70 °C)
- Output voltage limitation at 1 KV/µs (wire shield) static: ≤ 1 V
- Surge current resistance (wire shield) C2 - 10 kV/5 kA;D1 - 1 kA
- PE connection: PE connection
- Impulse leakage surge current Imp (10/350) µs (wire shield) 1 kA
- Product type
Surge protection device
- Leakage current
6 kA
- Type
Socket Adapters
IP55
- Manufacturer part #
2800491
- Dim
(W x H x D) 84.8 x 25 x 81.5 mm
- Width
84.8 mm
- Height
25 mm
- Depth
81.5 mm
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579450 Phoenix Contact 2800491 CSMA-LAMBDA/4-2.0-BS-SET Surge protection device 6 kA Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579450 Phoenix Contact 2800491 CSMA-LAMBDA/4-2.0-BS-SET Surge protection device 6 kA Piece 1 pc(s)
Description
Intermediate plug with Lambda/4 technology as surge protection for coaxial signal interfaces. SMA-Connectors connecter-Buchse
