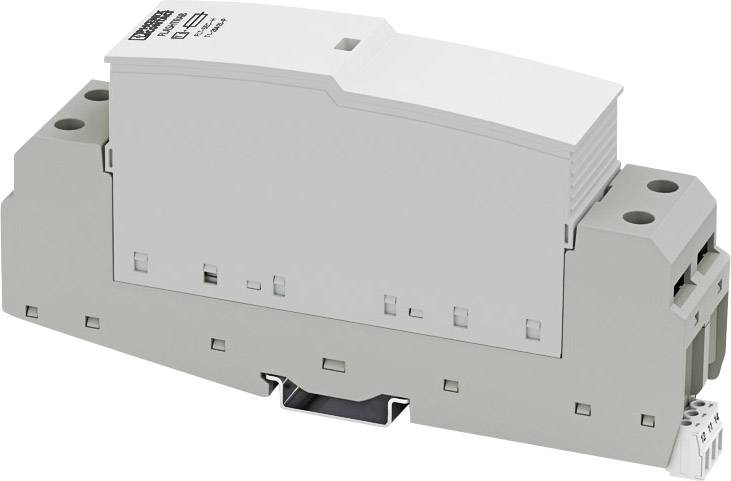

Phoenix Contact 2801615 FLT-SEC-H-T1-1C-264/25-FM Switchboard surge protection Surge protection for: Switchboards 50 kA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Surge suppressor type 1
- Pluggable surge suppressor
- With integrated surge current-proof fuse
- For 1-phase power supply networks with combined mislaid PE and N in a conductor (L1, PEN)
- This text is machine translated.
Technical specifications
- Product type
Switchboard surge protection
- Surge protection for
Switchboards
- Leakage current
50 kA
- Nominal voltage
240 V AC
- Pick-up time (details)
100 ns
- Operating temperature
-40°C ... 80 °C
IP20
- Manufacturer part #
2801615
- Type
T1 || T1/T2
- Factory colour
Grey-white (RAL 7035)
Traffic gey (RAL 7042)
- Standards
IEC 61643 2011 | EN 61643 2012
- Dim
(W x H x D) 35.5 x 167 x 74.5 mm
- Width
35.5 mm
- Height
167 mm
- Depth
74.5 mm
- Content
1 pc(s)
DIN rail (top hat rail) 35 mm
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1573931 Phoenix Contact 2801615 FLT-SEC-H-T1-1C-264/25-FM Switchboard surge protection Surge protection for: Switchboards 50 kA
User & Safety Instructions
User & Safety Instructions 1573931 Phoenix Contact 2801615 FLT-SEC-H-T1-1C-264/25-FM Switchboard surge protection Surge protection for: Switchboards 50 kA
Description
Pluggable surge suppressor, Acc Type 1/Class I, for use in power networks between N and PE. Pluggable surge suppressor (type 1/Class I arrester) as N/PE-radio range, with ignition mechanism for triggering the response voltage. Protection against incorrect fitting with
Wrong plugs by mechanical coding of a base element and plug. Labelling option for protection plug and connection terminals at the base element. Each of the 2 Biconnect-terminals for N and PE, for the connection of round conductors and wiring bridges.
This text is machine translated.
Wrong plugs by mechanical coding of a base element and plug. Labelling option for protection plug and connection terminals at the base element. Each of the 2 Biconnect-terminals for N and PE, for the connection of round conductors and wiring bridges.
This text is machine translated.
