Buy Phoenix Contact 2803153 CN-UB-70DC-6-SB Surge protection device Surge protection for: N (Coax) 10 kA Piece 1 pc(s)

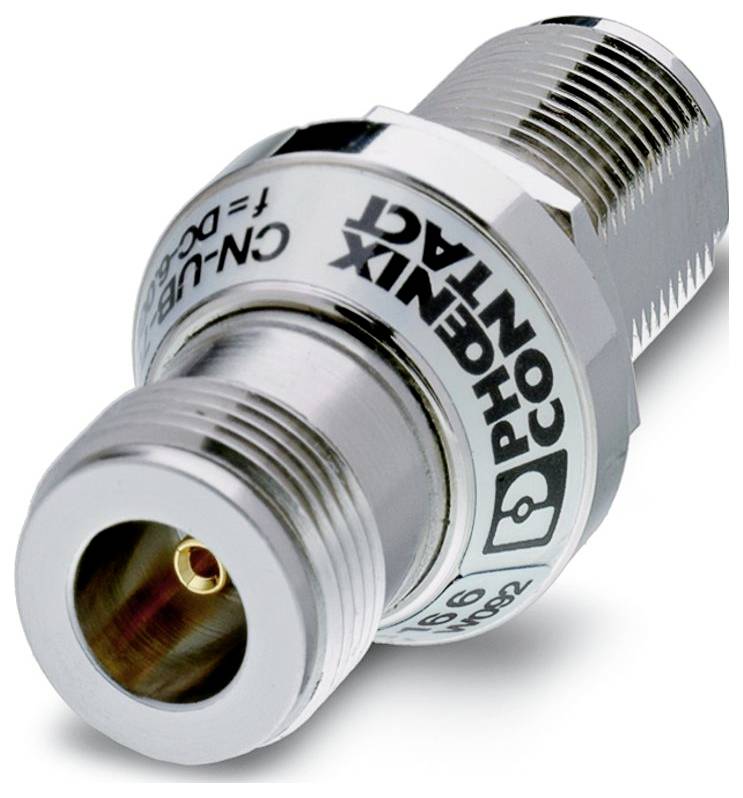

'A close-up of a metallic coaxial cable connector with a threaded end, featuring labels for a product by Phoenix Contact.'

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

IEC TEST CLASS C2; C3; D1
Design: Adapter plug
Message Surge Protection Faulty: None
Connection type N-connector 50 Ω
Tightening torque: 1.4 Nm ... 1.7 Nm (N-coupling nut)
Width 24 mm
Height: 24 mm
Depth: 50 mm
Colour: Nickel colored
Material housing: Brass (CuZn)
Mechanical Data: Mechanical Data
Open side wall: No.
Direction of effect: Line-shield/earth ground
Maximum continuous voltage UC: 70 V DC;50 V AC
Rated current 10 A
Operating current IC at UC ≤ 1 µA
Nominal impulse surge current In (8/20) µs: 5 kA
Impulse leakage surge current Iimp (10/350) µs 1 kA
Output voltage limitation at 1 KV/µs (wire-earth) static: ≤ 650 V
Protection level Up (wire-ground): ≤ 800 V (C2 - 4 kV / 2 kA);≤ 1 kV (C2 - 10 kV / 5 kA)
Capacity (wire-earth): Typ. 1.5 pF
Surge current (Wire-Earth) C2 - 10 kV / 5 kA;C3 - 100 A;D1 - 1 kA
Ambient conditions: Environmental conditions
Protection class IP68;IP68
Ambient temperature (operation): -40 °C ... 90 °C
Standards/regulations: IEC 61643-21
Note: 2000
Mounting type: Connection-specific intermediate plugging
Lightning test current (10/350) µs, peak current IIMP: 1 kA
Nominal impulse surge current In (8/20) µs (wire-ground): 5 kA
Impulse leakage surge current Iimp (10/350) µs (wire-ground) 1 kA
Output voltage limitation at 1 KV/µs (wire-earth) peak: ≤ 650 V
Response time TA (wire-earth): ≤ 100 ns
Air and creepage distances: Air and creepage distances
General: General
Insertion loss AE, unbalanced: 0.1 dB (≤ 6 GHz)
Material housing surface: Ni
Discharge surge current Imax (8/20) µs Maximum (wire-earth): 10 kA
Maximum continuous voltage UC (wire earth): 70 V DC;50 V AC
Response time TA (wire shield): ≤ 100 ns
Standards Specification Information technology: Standards Specification Information technology
VDE REQUIREMENT CLASS C2; C3; D1
Material seal: Silicone
Material inner conductor: BeCu
Material inner conductor surface: Gold
Material insulating body PTFE
Nominal suppression current In (8/20) µs (wire shield) 5 kA
Discharge surge current Imax (8/20) µs Maximum (wire shield): 10 kA
Rated impulse current Ian (10/1000)µs (shield wire):100 A.
Output voltage limitation at 1 KV/µs (wire shield) spike: ≤ 650 V
Protection level Up (wire shield): ≤ 800 V (C2 - 4 kV / 2 kA);≤ 1 kV (C2 - 10 kV / 5 kA)
Cut-off frequency FG (3 dB), unbalanced (Shield) in 50 Ω system: > 6 GHz
Frequency range: 0 Hz ... 6 GHz
Stem. Wave ratio VSWR in 50-Ω-System: Typ. 1.15 (≤ 6 GHz)
Permissible RF power Pmax for VSWR=xx (50 ohm system): 30 W (VSWR = 1.15)
Capacity asymmetric (screen): Typical 1.5 pF
Output voltage limitation at 1 KV/µs (wire shield) static: ≤ 650 V
Surge current resistance (wire shield) C2 - 10 kV/5 kA;C3 - 100 A;D1 - 1 kA
Alternating current resistance (wire shield) 5 A - 1 s.
