Phoenix Contact 2803409 BT-1S-230AC/A Surge protection (built-in) Surge protection for: Mains outlets, Junction box 1 kA
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Surge suppressor BLOCKTRAB
- Acoustic defect reporting
Technical specifications
- Product type
Surge protection (built-in)
- Surge protection for
Mains outlets
Junction box
- Leakage current
1 kA
- Nominal voltage
230 V
- Pick-up time (details)
< 25 n s
- Operating temperature
-25 to +75 °C
- Manufacturer part #
2803409
- Factory colour
Black
- Content
1 pc(s)
- Leakage current
3 kA
- Nominal voltage (details)
230 V AC
- Nominal current (details)
16 A
- Protection class
IP20
- Weight
27.52 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 610723 Phoenix Contact 2803409 BT-1S-230AC/A Surge protection (built-in) Surge protection for: Mains outlets, Junction box 1 kA
User & Safety Instructions
User & Safety Instructions 610723 Phoenix Contact 2803409 BT-1S-230AC/A Surge protection (built-in) Surge protection for: Mains outlets, Junction box 1 kA
Description

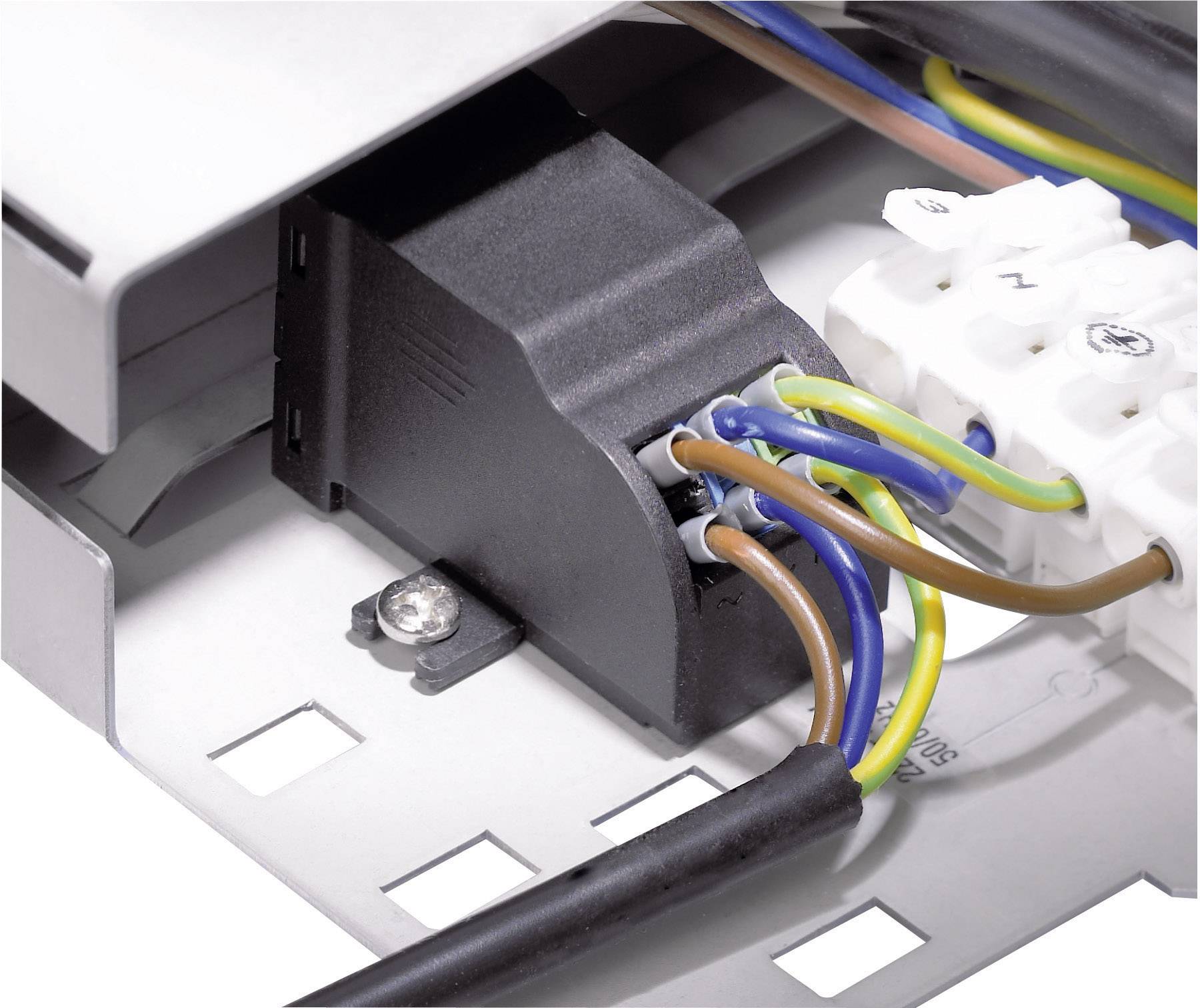

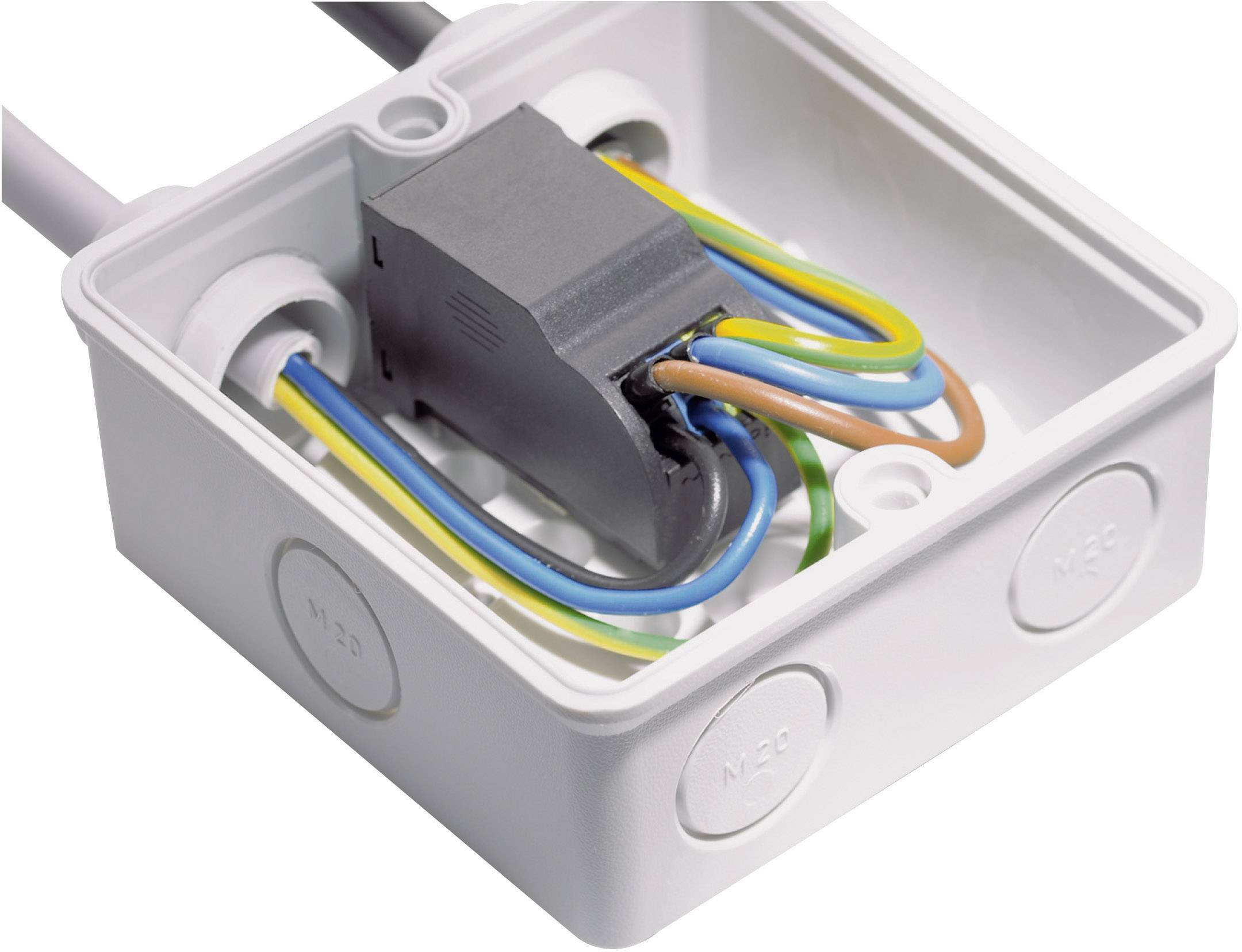

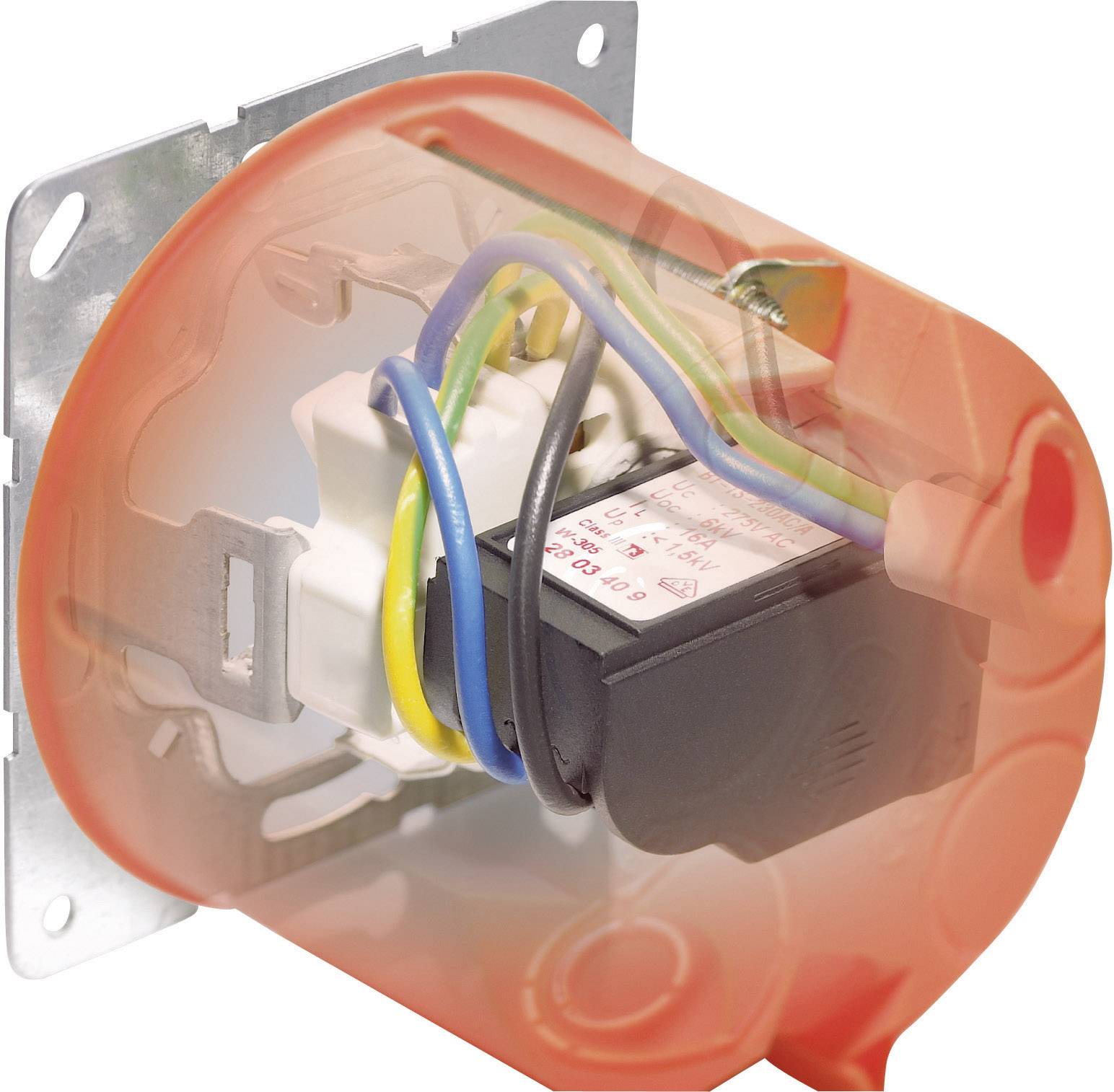

These type-3 arresters are used for universal mounting in installation boxes, cable ducts, under floor or directly in the terminal. Installation is possible in stitch or through cables. Side straps on the device allow an easy mounting. The flexible conductors with ferrules or rigid cables up to 2.5mm ² can be connected in case of the spring mounts. Blocktrab can be used worldwide in grounded, isolated 230 V networks. Insulation measurement up to 500 V is possible without removing Blocktrab. Circuit is thermally controlled. With overstress or defect, an audible warning informs the user. In these cases, the internal protection circuit is disconnected. This does not effect the operation of the plant that is being protected.
Hints
Blocktab fits perfectly in food vending machines, medical equipment, office equipment, etc.
