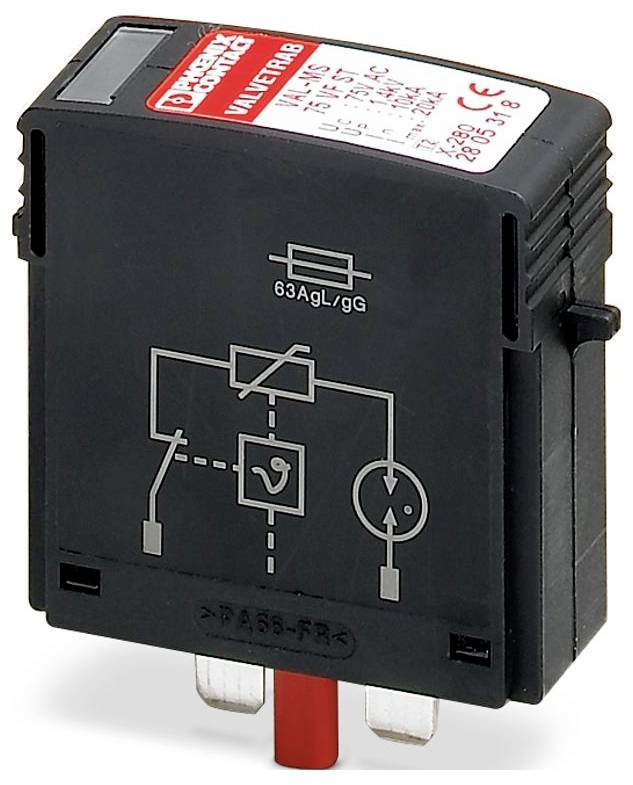

Phoenix Contact 2805318 VAL-MS 75 VF ST Surge protection plug 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: VALVETRAB MS
- IEC TEST CLASS II;T2
- Model: Two-part rail module can be plugged
- Number of poles: 1
- Message Surge Protection Faulty: Optical
- NOMINAL VOLTAGE UN: 5 V AC ... 48 V AC
- Connection type: Pluggable
- Width 17.5 mm
- Height: 52.4 mm
- Depth: 55.3 mm
- Division unit 1 TE
- Colour: Black (RAL 9005)
- Flammability class according to UL 94 V-0
- Material housing PA 6.6
- DIRECTION OF ACTION 1L-N/PE
- Maximum continuous voltage UC 75 V AC;100 V DC
- Earth current IPE ≤ 5 µA
- Nominal impulse surge current In (8/20) µs: 10 kA
- Response time TA ≤ 100 ns
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 80 °C
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m (amsl)
- Standards/regulations EN 61643-11
- Note: 2012
- Mounting type: On base element
- EN type T2
- Insulation properties: Insulation properties
- Over voltage category III
- Pollution level: 2
- Nominal frequency FN 50 Hz (60 Hz)
- CTI value of material: 600
- Insulation material PA 6.6
- Material group: I
- PROTECTION PATHS L-N;(L+) - (L-)
- Standby power consumption PC: ≤ 1 MVA
- Maximum Surge current Imax (8/20) µs 20 kA
- Protection level Up: ≤ 1.4 kV
- Ures residual voltage: ≤ 0.45 kV (at In);≤ 0.35 kV (at 5 kA);≤ 0.3 kV (at 3 kA)
- Impulse contact voltage at 6 kV (1.2/50) µs: ≤ 1.4 kV
- Permissible air humidity (operation): 5 % ... 95 %.
- Shock (operation): 25g
- Vibration (operation): 5g
- UL specifications: UL specifications
- Power distribution system: Single phase
- Nominal frequency 50/60 Hz
- SPD type 4CA
- Short-circuit resistance ISCCR 10 kA
- Maximum fusing for stub cable wiring: 63 A (gG)
- Maximum continuous voltage MCOV (L-N) 75 V AC
- Nominal surge current In (L-N) 10 kA
- Nominal voltage: 60 V/DC
- Measured limiting voltage MLV (L-N): 1760 V
- General: General
- Protection level Up (L-L): ≤ 1.8 kV
- Residual voltage Ures (L-L): ≤ 0.9 kV (in);≤ 0.7 kV (at 5 kA);≤ 0.6 kV (at 3 kA)
- Maximum continuous voltage MCOV (L+) - (L-) 100 V DC
- Nominal surge current In (L +) - (L-) 10 kA
- Measured limiting voltage MLV (L+) - (L-): 1760 V
- Product type
Surge protection plug
- Nominal voltage
48 V AC
60 V DC
- Type
Mounting rail module can be plugged in two parts
IP20
- Manufacturer part #
2805318
- Type
2
- Dim
(W x H x D) 17.5 x 52.4 x 55.3 mm
- Width
17.5 mm
- Height
52.4 mm
- Depth
55.3 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579511 Phoenix Contact 2805318 VAL-MS 75 VF ST Surge protection plug 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579511 Phoenix Contact 2805318 VAL-MS 75 VF ST Surge protection plug 1 pc(s)
Description
Surge protection plug type 2 with series connection from varistor and gas-filled spark gap for VAL-MS-basic element, thermally monitored, optical defect reporting.
