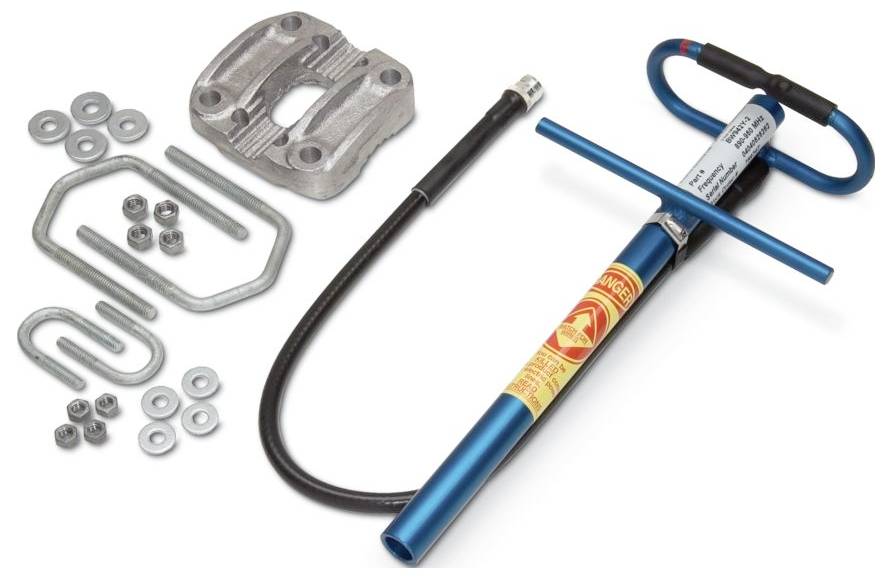

Phoenix Contact 2867801 RAD-ISM-900-ANT-YAGI-3-N Antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type N (female) with cable (0.6 m)
- Width 6 cm
- Height: 1.8" (17 cm)
- Ambient conditions: Environmental conditions
- Protection system: IP65
- Ambient temperature (operation): -40 °C ... 80 °C
- Mounting type: Mast mounting
- Frequency range 900 MHz
- Stem wave ratio VSWR in 50-Ω-System: ≤ 1.50
- Material: Aluminium;V2A;V2A
- External dimensions: External dimensions
- Connection technology: Connection technology
- Note for application: Only for industrial use
- Cable length 0.60 m
- Outer diameter: 32 mm ... 60 mm (mast)
- Impedance 50 Ω
- 900 MHz ...
- Gain 5 dBi
- Aperture angle vertical 78°
- Horizontal opening angle: 168 °
- Polarisation: Linear vertical or horizontal
- Connection cable: Yes
- Wind speed 15.4321 km/h
- Type
RAD-ISM-900-ANT-YAGI-3-N
- Product type
Antenna
- Manufacturer part #
2867801
- Dim
(L x W x H) 0.60 m x 6 cm x 17 cm
- Width
6 cm
- Height
17 cm
- Length
0.60 m
- Max. ambient temperature
80 °C
- Min. ambient temperature
-40 °C
IP65
Documents & Downloads
Datasheet
Datasheet 3579585 Phoenix Contact 2867801 RAD-ISM-900-ANT-YAGI-3-N Antenna
User & Safety Instructions
User & Safety Instructions 3579585 Phoenix Contact 2867801 RAD-ISM-900-ANT-YAGI-3-N Antenna
Description
Directional antenna, 868 MHz / 900 MHz, gain 5 dBi, polarization: Linear, opening angle: H/v 168°/78°, Protection class: IP65, connection: N (female), including mounting bracket and mast clamps
