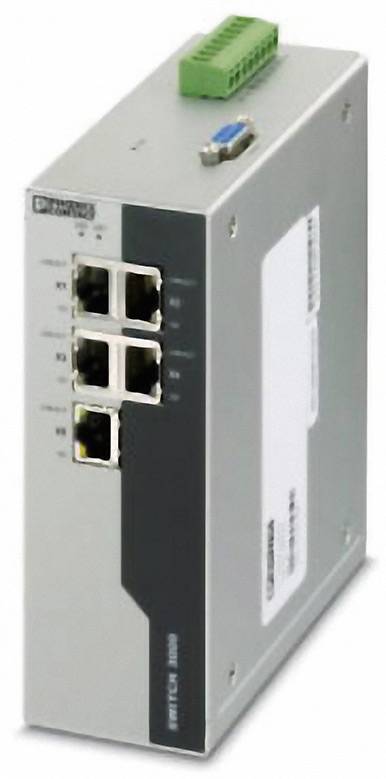

Phoenix Contact 2891030 FL SWITCH 3005 Industrial Ethernet switch 10 / 100 MBit/s
EAN:
Part number:
Item no:
Number
Total (€ 536.97 / piece)
€ 536.97
plus VAT.
14-day return policy included
Highlights & Details
Industrial Ethernet Switch FL SWITCH 3005
Technical specifications
- (L x W x H) 31 mm x 83 mm x 72.5 mm
- Product type
Industrial Ethernet switch
- LAN transfer rate
100 MBit/s
- Transfer rate
10 / 100 MBit/s
- Working principle
Managed switch
- Ethernet ports
5
- Weight
920.000 g
- Width
54.4 mm
- Height
146.4 mm
- Depth
125 mm
- Type
FL SWITCH 3005
- Interfaces
LAN (10/100 Mbps)
IP20
- Operating voltage
24 V DC
- Current consumption
200 mA
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- Max. operating temperature
60 °C
- Min. operating temperature
-10 °C
- Operating voltage
24 V DC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1220221 Phoenix Contact 2891030 FL SWITCH 3005 Industrial Ethernet switch 10 / 100 MBit/s
Description
Managed Industrial Ethernet switches of the Type FL SWITCH 3000 combine high network performance and comprehensive security with full IEEE-redundancy (STP/RSTP/MST) and extended ring redundancy with recovery times of 15 ms. The Web-Anpassbarkeit simplifies the user interface of the current applications and offers scaling options for the future. The versatile range of fiber optic and copper cable connections enables use in a variety of
Applications.
