Image similar
Phoenix Contact 2901997 1 pc(s)
EAN:
Part number:
Item no:
Input signal (current) (max.)
20 mA
Type
2901997
Dim
(L x W x H) 119.2 x 6.2 x 109.81 mm
Connection
Push-in connector
Output (current)
0(4) mA ... 20 mA
Technical specifications
- Type
2901997
- Input signal (current) (max.)
20 mA
- Dim
(L x W x H) 119.2 x 6.2 x 109.81 mm
- Connection
Push-in connector
- Output (current)
0(4) mA ... 20 mA
- Input signal (current)
0(4) mA ... 20 mA
- Content
1 pc(s)
- Width
6.2 mm
- Height
109.81 mm
- Length
119.2 mm
- Max. ambient temperature
70 °C
- Min. ambient temperature
-40 °C
- Operating voltage U(B)
9.6..30 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1830454 Phoenix Contact 2901997 1 pc(s)
Description

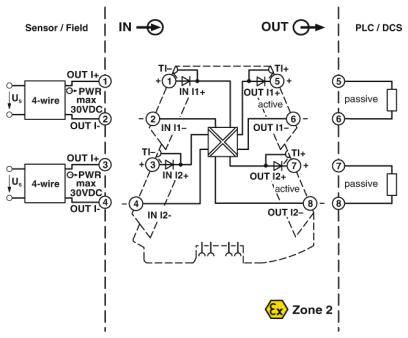

Two-channel input loop fed 2-way isolation with pluggable connection technology for galvanic isolation of analog signals. Input signal = output signal: 0 (4) mA... 20 mA. Push-in connection technology.
