Name: Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)
Brand: Phoenix Contact
SKU: 2140996

Grey-white DIN rail power supply unit for industrial applications, marked with 'UNO POWER', 'Output DC 48V 60W'.

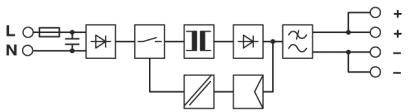

Electrical circuit diagram of a rectifier with filters, transformers, and output terminals. Main components for converting alternating current to direct current.

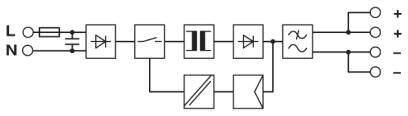

Electrical circuit diagram for rectification and filtration of alternating current to direct current. Symbols for diodes, capacitors and filters.

1/3

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Wire stripping length: 8 mm
CURRENT CONSUMPTION 1.3 A (100 V/AC), 0.6 A (240 V/AC)
Nominal power consumption 134.7 VA

Nominal input voltage: 100-240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Output voltage: 48 V DC

Input voltage: 85 V/AC - 264 V AC

Input voltage (max.): 264 V AC

Max. output current: 1.25 A

Output current (max.) - rounded: 1.25 A

: 60 W

Output type (power supply units): Fixed voltage

Phases: 1

Output voltage (nominal): 48 V

Connection: Screws

Dim: (L x W x H) 84 x 35 x 90 mm

Weight: 0.21 kg

Output voltage (max.): 48 V DC

Operating temperature (max.): +70 °C

Max. operating temperature (derating): +70 °C

Min. operating temperature (derating): +55 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2902995

Content: 1 pc(s)

MTBF: 1138000 h

PSU features: Regulated

Width: 35 mm

Height: 90 mm

Length: 84 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: UNO-PS/1AC/48DC/ 60W

Consumption (standby): 0.3 W

Efficiency: 89 %

: 35

: 90 mm

: 84 mm

: 90 mm

: 134.7 W

: FALSE

: TRUE

: AC

: Screw connection

: TRUE

: IP20

: None

: None

: Other

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)

Item no:2140996

Unavailable

Conrad Electronic

This article

60 W

Screws

264 V AC

48 V

48 V DC

Fixed voltage

100-240 V/AC

1.25 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2320911 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

Item no:2209722

Dispatches on Thu 22 Oct

Conrad Electronic

240 W

Push-fit screw connector

264 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

10 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Phoenix Contact 2902646 Rail mounted PSU (DIN) 10 A 50 W Content 1 pc(s)

Item no:2225461

Unavailable

Conrad Electronic

50 W

Screws

264 V AC

5 V DC

100-240 V/AC

10 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2902994 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

Item no:2225477

Unavailable

Conrad Electronic

90 W

Screws

264 V AC

24 V

24 V DC

Fixed voltage

100-240 V/AC

3.75 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903002 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 15 V 6.67 A 100 W Content 1 pc(s)

Item no:2141057

Unavailable

Conrad Electronic

100 W

Screws

264 V AC

15 V

15 V DC

Fixed voltage

100-240 V/AC

6.67 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903144 Rail mounted PSU (DIN) 24 V 5 A 120 W Content 1 pc(s)

Item no:2225478

Unavailable

Conrad Electronic

120 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903145 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

Item no:2225479

Unavailable

Conrad Electronic

240 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

10 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903147 Rail mounted PSU (DIN) 24 V 3 A 72 W Content 1 pc(s)

Item no:2225480

Unavailable

Conrad Electronic

72 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

3 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903156 Rail mounted PSU (DIN) 40 A 960 W Content 1 pc(s)

Item no:2225481

Unavailable

Conrad Electronic

960 W

Push-in connector

500 V AC

24 V DC

Adjustable

400 - 500 V/AC

40 A

400 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903157 Rail mounted PSU (DIN) 12 V 5 A 60 W Content 1 pc(s)

Item no:2225482

Unavailable

Conrad Electronic

60 W

Push-in connector

240 V AC

12 V

12 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2140996 Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2140996 Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)

Description

Flexible mounting by simply snapping onto the mounting rail. More space in the control cabinet with up to 20% higher power density. Maximum energy efficiency through efficiency over 90 % and extremely low idle losses below 0.3 W. Outdoor installation through temperature range of -25 °C to +70 °C.
