Buy Phoenix Contact 2902996 Rail mounted PSU (DIN) 48 V DC 2.1 A 100 W No. of outputs:1 x Content 1 pc(s)

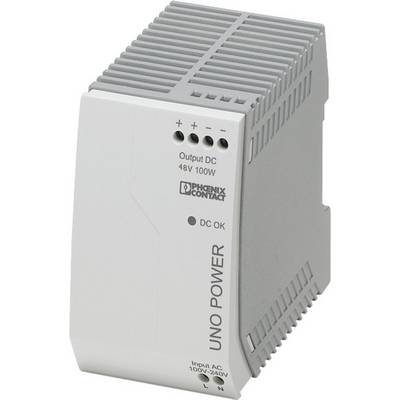

Phoenix Contact DC power supply, UNO POWER model, delivers 48V with 100W output power, input voltage 100V-240V.

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 82.34 / piece)

€ 82.34

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Primary-switched power supply to the UN rail mounting, input: 1-phase, output: 48V DC/100 W

Can be used worldwide by input voltage range of 85 V AC... 264 V AC
Maximum system availability through reliable supply of 48 V DC
Maximum energy efficiency through optimized efficiency over the entire work area of the power supply and low no-load losses
Particularly compact: 100 W power from the only 55 mm slim power supply

Technical specifications

Nominal output voltage: 48 V DC
Efficiency:> 90%
Ambient temperature -25°C ... 70 °C

Nominal input voltage: 115 V/AC
230 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Input voltage: 85 V AC 264 V AC

Input voltage (max.): 264 V AC

Max. output current: 2.1 A

Output current (max.) - rounded: 2.1 A

: 100 W

Output type (power supply units): Fixed voltage

Phases: 1

Output voltage (nominal): 48 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 55 x 90 x 84 mm

Weight: 363.3 g

Output voltage (max.): 264 V DC

Output voltage (min.): 85 V DC

Operating temperature (max.): 70 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2902996

Content: 1 pc(s)

MTBF: 1010000 h

PSU features: Regulated

Width: 55 mm

Height: 90 mm

Max. temperature: 70 °C

Min. temperature: -25 °C

Type: UNO-PS/1AC/48DC/100W

Depth: 84 mm

Connections: Screw connector

Output current (details): 2.1 A

: 55

: 90 mm

: 84 mm

: 90 mm

: 213.3 W

: FALSE

: TRUE

: AC

: Screw connection

: TRUE

: IP20

: None

: None

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1211544 Phoenix Contact 2902996 Rail mounted PSU (DIN) 48 V DC 2.1 A 100 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1211544 Phoenix Contact 2902996 Rail mounted PSU (DIN) 48 V DC 2.1 A 100 W No. of outputs:1 x Content 1 pc(s)

Description

The power supply UN POWER impresses on worldwide use through maximum energy efficiency. Low No-load losses and high efficiency of save energy. The power supply UN POWER is on the basis of its high power density especially in compact control box is the perfect solution.

This text is machine translated.
