Name: Phoenix Contact 2903144 Rail mounted PSU (DIN) 24 V 5 A 120 W Content 1 pc(s)
Brand: Phoenix Contact
SKU: 2225478

Grey-blue electronic device in portrait orientation with labels and buttons; used for voltage supply, 34-38V DC.

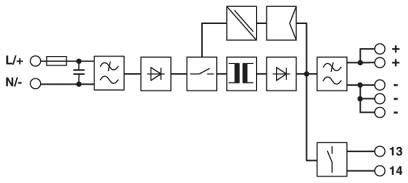

Circuit diagram of an electronic circuit with multiple components such as diodes and amplifiers. Connections are marked to the power source L+/N-.

Circuit diagram of an amplifier with multiple components such as resistors and capacitors. Shows signal flow from left to right.

1/3

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Withstand voltage< 300 V/AC 15 s.
Wire stripping length: 10 mm
CURRENT CONSUMPTION 2.2 A (100 V/AC), 1.9 A (120 V/AC), 1.1 A (230 V/AC), 1.1 A (240 V/AC)
Nominal power consumption 272 VA

Nominal input voltage: 100-240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 24 V DC

Input voltage: 100 V/AC - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

: 120 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V

Connection: Push-in connector

Dim: (L x W x H) 115 x 35 x 130 mm

Weight: 0.45 kg

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V

Operating temperature (max.): +70 °C

Max. operating temperature (derating): 70 °C

Min. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2903144

Content: 1 pc(s)

MTBF: 3380000 h

PSU features: Regulated
Adjustable voltage output

Width: 35 mm

Height: 130 mm

Length: 115 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: TRIO-PS-2G/1AC/24DC/5/B+D

Efficiency: 89 %

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 2903144 Rail mounted PSU (DIN) 24 V 5 A 120 W Content 1 pc(s)

Item no:2225478

Unavailable

Conrad Electronic

This article

120 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2320911 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

Item no:2209722

Dispatches on Tue 27 Oct

Conrad Electronic

240 W

Push-fit screw connector

264 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

10 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Phoenix Contact 2902646 Rail mounted PSU (DIN) 10 A 50 W Content 1 pc(s)

Item no:2225461

Unavailable

Conrad Electronic

50 W

Screws

264 V AC

5 V DC

100-240 V/AC

10 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2902994 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

Item no:2225477

Unavailable

Conrad Electronic

90 W

Screws

264 V AC

24 V

24 V DC

Fixed voltage

100-240 V/AC

3.75 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)

Item no:2140996

Unavailable

Conrad Electronic

60 W

Screws

264 V AC

48 V

48 V DC

Fixed voltage

100-240 V/AC

1.25 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903002 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 15 V 6.67 A 100 W Content 1 pc(s)

Item no:2141057

Unavailable

Conrad Electronic

100 W

Screws

264 V AC

15 V

15 V DC

Fixed voltage

100-240 V/AC

6.67 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903145 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

Item no:2225479

Unavailable

Conrad Electronic

240 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

10 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903147 Rail mounted PSU (DIN) 24 V 3 A 72 W Content 1 pc(s)

Item no:2225480

Unavailable

Conrad Electronic

72 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

3 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903156 Rail mounted PSU (DIN) 40 A 960 W Content 1 pc(s)

Item no:2225481

Unavailable

Conrad Electronic

960 W

Push-in connector

500 V AC

24 V DC

Adjustable

400 - 500 V/AC

40 A

400 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903157 Rail mounted PSU (DIN) 12 V 5 A 60 W Content 1 pc(s)

Item no:2225482

Unavailable

Conrad Electronic

60 W

Push-in connector

240 V AC

12 V

12 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2225478 Phoenix Contact 2903144 Rail mounted PSU (DIN) 24 V 5 A 120 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2225478 Phoenix Contact 2903144 Rail mounted PSU (DIN) 24 V 5 A 120 W Content 1 pc(s)

Description

Can be used on ship bridges according to EN 60945. Plant availability increases by dynamic boost with 150% of the nominal current for five seconds. Maximum flexibility due to the wide temperature range of -25 °C to +70 °C and device start-up at -40 °C. Electrically robust due to high electrical strength. Mechanically robust due to high vibration and shock resistance. Save time and money with push-in connection and slim design.
