Name: Phoenix Contact 2903145 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)
Brand: Phoenix Contact
SKU: 2225479

Rectangular power supply unit with connection terminals and LED indicators. Label reads: 'Trio Power'.

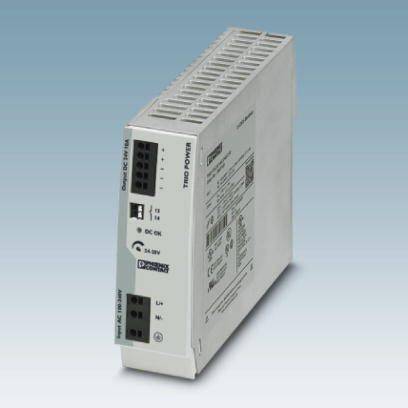

A grey, rectangular DIN rail power supply with the inscription 'Trio Power' and connections for industrial electronics.

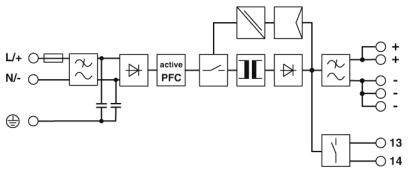

Circuit diagram of an electrical circuit with components such as diodes, active power factor correction (PFC) and transformer. Connections to terminals 13 and 14.

1/3

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Withstand voltage 300 V/AC 15 s.
Wire stripping length: 10 mm
CURRENT CONSUMPTION: 3.1 A (100 V/AC), 2.4 A (120 V/AC), 1.3 A (230 V/AC), 1.4 A (240 V/AC)
Rated power consumption 285 VA

Nominal input voltage: 100-240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 24 V DC

Input voltage: 100 V/AC - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 10 A

Output current (max.) - rounded: 10 A

: 240 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V

Connection: Push-in connector

Dim: (L x W x H) 160 x 42 x 130 mm

Weight: 1 kg

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V

Operating temperature (max.): +70 °C

Max. operating temperature (derating): 70 °C

Min. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2903145

Content: 1 pc(s)

MTBF: 1800000 h

PSU features: Adjustable voltage output

Width: 42 mm

Height: 130 mm

Length: 160 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: TRIO-PS-2G/1AC/24DC/10/B+D

Efficiency: 91.5 %

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 2903145 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

Item no:2225479

Unavailable

Conrad Electronic

This article

240 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

10 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2320911 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

Item no:2209722

Dispatches on Tue 27 Oct

Conrad Electronic

240 W

Push-fit screw connector

264 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

10 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Phoenix Contact 2902646 Rail mounted PSU (DIN) 10 A 50 W Content 1 pc(s)

Item no:2225461

Unavailable

Conrad Electronic

50 W

Screws

264 V AC

5 V DC

100-240 V/AC

10 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2902994 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

Item no:2225477

Unavailable

Conrad Electronic

90 W

Screws

264 V AC

24 V

24 V DC

Fixed voltage

100-240 V/AC

3.75 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)

Item no:2140996

Unavailable

Conrad Electronic

60 W

Screws

264 V AC

48 V

48 V DC

Fixed voltage

100-240 V/AC

1.25 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903002 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 15 V 6.67 A 100 W Content 1 pc(s)

Item no:2141057

Unavailable

Conrad Electronic

100 W

Screws

264 V AC

15 V

15 V DC

Fixed voltage

100-240 V/AC

6.67 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903144 Rail mounted PSU (DIN) 24 V 5 A 120 W Content 1 pc(s)

Item no:2225478

Unavailable

Conrad Electronic

120 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903147 Rail mounted PSU (DIN) 24 V 3 A 72 W Content 1 pc(s)

Item no:2225480

Unavailable

Conrad Electronic

72 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

3 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903156 Rail mounted PSU (DIN) 40 A 960 W Content 1 pc(s)

Item no:2225481

Unavailable

Conrad Electronic

960 W

Push-in connector

500 V AC

24 V DC

Adjustable

400 - 500 V/AC

40 A

400 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903157 Rail mounted PSU (DIN) 12 V 5 A 60 W Content 1 pc(s)

Item no:2225482

Unavailable

Conrad Electronic

60 W

Push-in connector

240 V AC

12 V

12 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2225479 Phoenix Contact 2903145 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2225479 Phoenix Contact 2903145 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

Description

Can be used on ship bridges according to EN 60945. Plant availability increases by dynamic boost with 150% of the nominal current for five seconds. Maximum flexibility due to the wide temperature range of -25 °C to +70 °C and device start-up at -40 °C. Electrically robust due to high electrical strength. Mechanically robust due to high vibration and shock resistance. Save time and money with push-in connection and slim design.
