Buy Phoenix Contact 2903147 Rail mounted PSU (DIN) 24 V 3 A 72 W Content 1 pc(s)

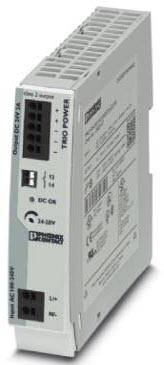

An electronic device with a display and ports, labelled as 'D-ES120-024'. It displays various technical data and manufacturer information.

Image similar

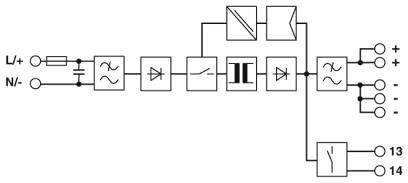

Electronic circuit diagram shows signal flow from input L/- to six outputs. Including filters, amplifiers, and delay elements.

1/2

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Withstand voltage< 300 V/AC 15 s.
Wire stripping length: 10 mm
POWER CONSUMPTION 1.4 A (100 V/AC), 1 A (120 V/AC), 0.6 A (230 V/AC), 0.7 A (240 V/AC)
Nominal power consumption 157.7 VA

Nominal input voltage: 100-240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 24 V DC

Input voltage: 100 V/AC - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 3 A

Output current (max.) - rounded: 3 A

: 72 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V

Connection: Push-in connector

Dim: (L x W x H) 115 x 30 x 130 mm

Weight: 0.35 kg

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V

Operating temperature (max.): +70 °C

Max. operating temperature (derating): 70 °C

Min. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2903147

Content: 1 pc(s)

MTBF: 3500000 h

PSU features: Adjustable voltage output

Width: 30 mm

Height: 130 mm

Length: 115 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: TRIO-PS-2G/1AC/24DC/3/C2LPS

Efficiency: 89 %

: 30

: 130 mm

: 115 mm

: 130 mm

: 157.7 W

: FALSE

: TRUE

: AC/DC

: Other

: TRUE

: IP20

: None

: None

: Other

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 2903147 Rail mounted PSU (DIN) 24 V 3 A 72 W Content 1 pc(s)

Item no:2225480

This article

72 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

3 A

100 V AC

Phoenix Contact 2904605 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:2140951

30 W

Push-in connector

240 V AC

12 V DC

Adjustable

100 - 240 V/AC

2.5 A

100 V AC

Phoenix Contact 2904598 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)

Item no:2140988

60 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

2.5 A

100 V AC

Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)

Item no:2140996

60 W

Screws

264 V AC

48 V

48 V DC

Fixed voltage

100-240 V/AC

1.25 A

85 V AC

Phoenix Contact 2904371 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

Item no:2141009

90 W

Screws

575 V AC

24 V

24 V DC

Fixed voltage

400 - 500 V/AC

3.75 A

264 V AC

Phoenix Contact 2904608 Rail mounted PSU (DIN) 12 V 15 A 180 W Content 1 pc(s)

Item no:2141010

180 W

Screws

240 V AC

12 V

12 V DC

Adjustable

100-240 V/AC

15 A

100 V AC

Phoenix Contact 2904610 Rail mounted PSU (DIN) 5 A 240 W Content 1 pc(s)

Item no:2141011

240 W

Screws

240 V AC

48 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Phoenix Contact 2904597 Rail mounted PSU (DIN) 24 V 1.3 A 30 W Content 1 pc(s)

Item no:2141025

30 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

1.3 A

100 V AC

Phoenix Contact 2904607 Rail mounted PSU (DIN) 12 V DC 7.5 A 90 W No. of outputs:1 x Content 1 pc(s)

Item no:2141026

90 W

Push-in connector

240 V AC

12 V DC

Adjustable

AC 100 V - 240 V; DC 140 V - 300 V

7.5 A

100 V AC

Phoenix Contact 2903159 Rail mounted PSU (DIN) 5 A 240 W Content 1 pc(s)

Item no:2141033

240 W

Push-in connector

240 V AC

48 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Documents & Downloads

Datasheet

Datasheet 2225480 Phoenix Contact 2903147 Rail mounted PSU (DIN) 24 V 3 A 72 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2225480 Phoenix Contact 2903147 Rail mounted PSU (DIN) 24 V 3 A 72 W Content 1 pc(s)

Description

Save time and money with push-in connection and slim design. Plant availability increases by dynamic boost with 150% of the nominal current for five seconds. Maximum flexibility due to the wide temperature range of -25 °C to +70 °C and device start-up at -40 °C. Robust design.

This text is machine translated.
