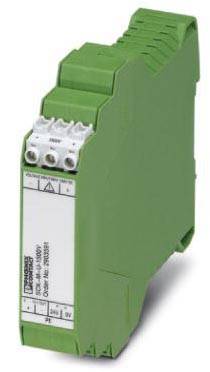

Phoenix Contact 2903591 SCK-M-U-1500V PV string monitor
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Protection class: IP20
- Ambient temperature (operation): -20 °C - +70 °C.
- Ambient temperature (storage/transport): -40 °C - +85 °C.
- Max. Operating height< 2000 m.
- Output name: Analogue output
- Output signal voltage 2 V/DC - 10 V/DC
- Internal power consumption 8 mA (typical), 65 mA (maximum)
- Conductor cross-section rigid: 0.2 mm² - 2.5 mm²
- Conductor cross-section flexible: 0.2 mm² - 2.5 mm²
- Wire cross-section AWG: 24 - 12
- Tightening torque: 0.5 Nm - 0.6 Nm
- Product type
PV string monitor
- Dim
(W x H x D) 22.5 x 102 x 128.5 mm
- Type
Connection type: screw terminals.
- Content
1 pc(s)
- Width
22.5 mm
- Height
102 mm
- Depth
128.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225499 Phoenix Contact 2903591 SCK-M-U-1500V PV string monitor
Datasheet 2225499 Phoenix Contact 2903591 SCK-M-U-1500V PV string monitor
User & Safety Instructions
User & Safety Instructions 2225499 Phoenix Contact 2903591 SCK-M-U-1500V PV string monitor
Description

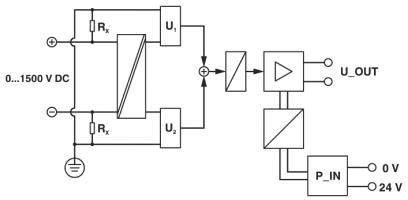

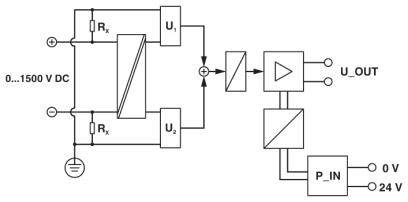

SCK measuring module for monitoring photovoltaic systems, 1 x voltage measurement up to 1500 V DC, 1 x analogueue output (2...10 V)
