Buy Phoenix Contact 2904371 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

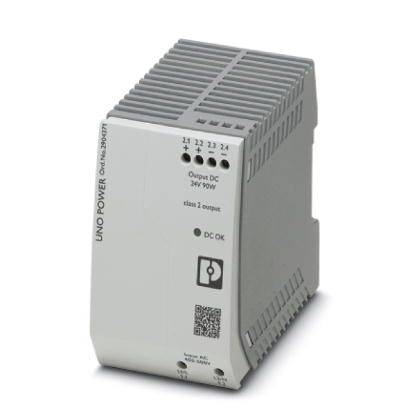

A grey power supply enclosure with the inscription 'UNO POWER'. It has four connectors on top and labels for DC output 24V 90W.

Image similar

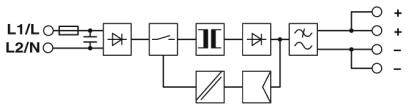

Circuit diagram of a rectifier with filters and a transformer. Main components: diodes, a transformer, electrical connections.

1/2

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Wire stripping length: 8 mm
CURRENT CONSUMPTION 0.55 A (400 V/AC), 0.48 A (500 V/AC)
Rated power consumption 211.3 VA

Nominal input voltage: 400 - 500 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 264 V AC

Output voltage: 24 V DC

Input voltage: 264 V/AC - 575 V AC

Input voltage (max.): 575 V AC

Max. output current: 3.75 A

Output current (max.) - rounded: 3.75 A

: 90 W

Output type (power supply units): Fixed voltage

Phases: 2

Output voltage (nominal): 24 V

Connection: Screws

Dim: (L x W x H) 84 x 55 x 90 mm

Weight: 0.32 kg

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V

Operating temperature (max.): +70 °C

Max. operating temperature (derating): 70 °C

Min. operating temperature (derating): +55 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2904371

Content: 1 pc(s)

MTBF: 828000 h

PSU features: Regulated

Width: 55 mm

Height: 90 mm

Length: 84 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: UNO-PS/2AC/24DC/90W/C2LPS

Consumption (standby): 0.3 W

Efficiency: 89 %

: 55

: 90 mm

: 84 mm

: 90 mm

: 211.3 W

: FALSE

: TRUE

: AC

: Screw connection

: TRUE

: IP20

: None

: None

: Other

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 2904371 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

Item no:2141009

This article

90 W

Screws

575 V AC

24 V

24 V DC

Fixed voltage

400 - 500 V/AC

3.75 A

264 V AC

Phoenix Contact 2904605 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:2140951

30 W

Push-in connector

240 V AC

12 V DC

Adjustable

100 - 240 V/AC

2.5 A

100 V AC

Phoenix Contact 2904598 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)

Item no:2140988

60 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

2.5 A

100 V AC

Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)

Item no:2140996

60 W

Screws

264 V AC

48 V

48 V DC

Fixed voltage

100-240 V/AC

1.25 A

85 V AC

Phoenix Contact 2904608 Rail mounted PSU (DIN) 12 V 15 A 180 W Content 1 pc(s)

Item no:2141010

180 W

Screws

240 V AC

12 V

12 V DC

Adjustable

100-240 V/AC

15 A

100 V AC

Phoenix Contact 2904610 Rail mounted PSU (DIN) 5 A 240 W Content 1 pc(s)

Item no:2141011

240 W

Screws

240 V AC

48 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Phoenix Contact 2904597 Rail mounted PSU (DIN) 24 V 1.3 A 30 W Content 1 pc(s)

Item no:2141025

30 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

1.3 A

100 V AC

Phoenix Contact 2904607 Rail mounted PSU (DIN) 12 V DC 7.5 A 90 W No. of outputs:1 x Content 1 pc(s)

Item no:2141026

90 W

Push-in connector

240 V AC

12 V DC

Adjustable

AC 100 V - 240 V; DC 140 V - 300 V

7.5 A

100 V AC

Phoenix Contact 2903159 Rail mounted PSU (DIN) 5 A 240 W Content 1 pc(s)

Item no:2141033

240 W

Push-in connector

240 V AC

48 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Phoenix Contact 2904599 Rail mounted PSU (DIN) 24 V 3.8 A 90 W Content 1 pc(s)

Item no:2141035

90 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

3.8 A

100 V AC

Documents & Downloads

Datasheet

Datasheet 2141009 Phoenix Contact 2904371 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2141009 Phoenix Contact 2904371 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

Description

Flexible mounting by simply snapping onto the mounting rail. More space in the control cabinet with up to 20% higher power density. Maximum energy efficiency through efficiency over 90 % and extremely low idle losses below 0.3 W. Outdoor installation through temperature range of -25 °C to +70 °C.

This text is machine translated.
