Buy Phoenix Contact 2904374 Rail mounted PSU (DIN) 5 V DC 5 A 25 W No. of outputs:1 x Content 1 pc(s)

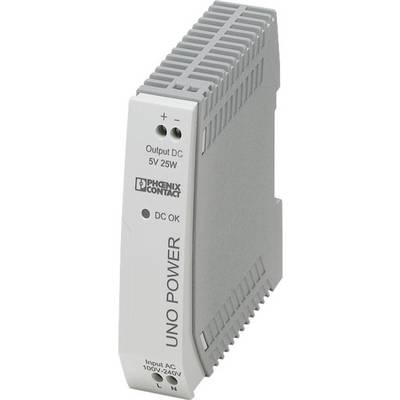

A grey DIN rail power supply from Phoenix Contact with the marking 'Output DC 5V 25W'.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 48.73 / piece)

€ 48.73

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Primary-switched power supply to the UN rail mounting, input: 1-phase, Output: 5 V DC/25 W

Can be used worldwide by input voltage range of 85 V AC... 264 V AC
Maximum system availability through reliable supply of 5V DC
Maximum energy efficiency through optimized efficiency over the entire work area of the power supply and low no-load losses
Very compact: 25 W power from the only 22.5 mm slim power supply

Technical specifications

Nominal output voltage: 5 V DC
Efficiency:> 84%
Ambient temperature: -25 °C to 70 °C

Nominal input voltage: 115 V/AC
230 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Input voltage: 85 V AC 264 V AC

Input voltage (max.): 264 V AC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

: 25 W

Output type (power supply units): Fixed voltage

Phases: 1

Output voltage (nominal): 5 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 22.5 x 90 x 84 mm

Weight: 150 g

Output voltage (max.): 264 V DC

Output voltage (min.): 85 V DC

Operating temperature (max.): 70 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2904374

Content: 1 pc(s)

MTBF: 500000 h

Width: 22.5 mm

Height: 90 mm

Max. temperature: 70 °C

Min. temperature: -25 °C

Type: UNO-PS/1AC/ 5DC/ 25W

Depth: 84 mm

Connections: Screw connector

Output current (details): 5 A

: 22.5

: 90 mm

: 84 mm

: 90 mm

: 61.7 W

: FALSE

: TRUE

: AC

: Screw connection

: TRUE

: IP20

: None

: None

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1211539 Phoenix Contact 2904374 Rail mounted PSU (DIN) 5 V DC 5 A 25 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1211539 Phoenix Contact 2904374 Rail mounted PSU (DIN) 5 V DC 5 A 25 W No. of outputs:1 x Content 1 pc(s)

Description

The power supply UN POWER impresses on worldwide use through maximum energy efficiency. Low No-load losses and high efficiency of save energy. The power supply UN POWER is on the basis of its high power density especially in compact control box is the perfect solution.
