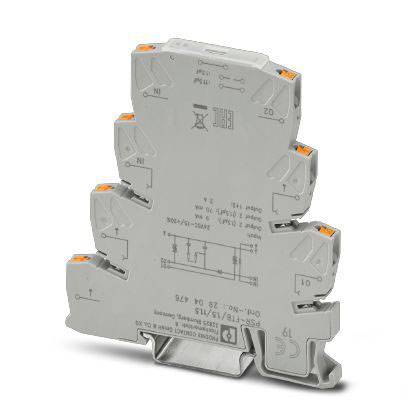

Phoenix Contact 2904476 PSR-FTB/1.5/11.5
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Connection type: Push-in connection
- Designation Connection: Control circuit
- Conductor cross-section rigid: 0.14 mm² ... 2.5 mm²
- Conductor cross-section AWG: 26 ... 14
- Rated insulation voltage 50 V.
- Dimensioning surge voltage: 1.5 kV
- Pollution level: 2
- Overvoltage category II
- Wire stripping length: 8 mm
- Rated input voltage UN: 24 V DC ±20 % (control voltage UST right / left)
- Nominal output voltage 24 V DC ±20 % (control voltage UST right / left)
- Rated output voltage range: 19.2 V DC ... 28.8 V DC (control voltage UST right / left)
- Continuous current: Max. 2 A (in total for OUT1 + OUT2)
- Conductor cross-section flexible: 0.14 mm² ... 2.5 mm²
- Mounting position: Vertical (horizontal mounting rail)
- Type
PSR-FTB/1.5/11.5
- Height
94 mm
- Length
80 mm
- Width
6.2 mm
- Dim
(L x W x H) 80 x 6.2 x 94 mm
- Manufacturer part #
2904476
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225543 Phoenix Contact 2904476 PSR-FTB/1.5/11.5
Datasheet 2225543 Phoenix Contact 2904476 PSR-FTB/1.5/11.5
User & Safety Instructions
User & Safety Instructions 2225543 Phoenix Contact 2904476 PSR-FTB/1.5/11.5
Description

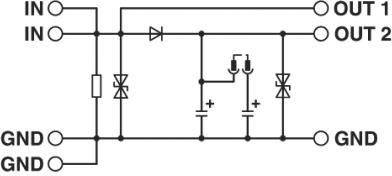

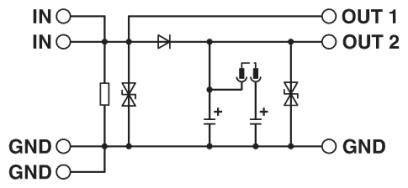

Terminal for filtering test pulses of safe semiconductor outputs with adjustable filter values (1.5 µF/11.5 µF), as well as for EMC filtering of 24 V signals up to a current of 2 A.
