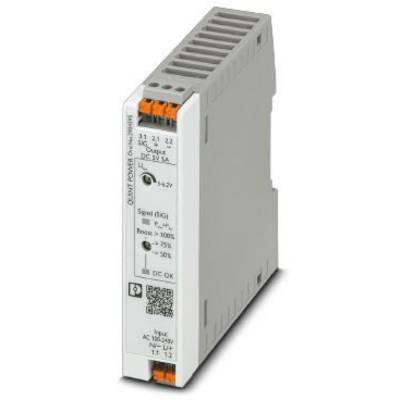

Phoenix Contact 2904595 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
14-day return policy included
Highlights & Details
Phoenix Contact 2904595 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
- Modular housing for single appearance in the MSR technology
- 5.5 V DC / 3 A
- 15 W
- Input 1-phase
- Input voltage range 85 - 264 V/AC/90 - 350 V DC
- Connection (components): Screw terminal
Technical specifications
- Nominal input voltage
115 V/AC
230 V/AC
90 - 350 V/DC
- Type
Switched Mode
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
5 V DC
- Input voltage
85 - 264 V/AC/90 - 350 V DC
- Input voltage (max.)
264 V AC
- Max. output current
3 A
- Output current (max.) - rounded
3 A
15 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
5 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(L x W x H) 90 x 22.5 x 90 mm
- Weight
200 g
- Output voltage (max.)
5.5 V DC
- Output voltage (min.)
4.5 V DC
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
2904595
- Content
1 pc(s)
- PSU features
Regulated
- Width
22.5 mm
- Height
90 mm
- Length
90 mm
- Type
Quint 4-PS
- Depth
106 mm
15 W
- Connections
Screw/plug terminals
- Output current (details)
3 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 511787 Phoenix Contact 2904595 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 511787 Phoenix Contact 2904595 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
Description
The Phoenix Contact Quint 4-PS power supply has an especially narrow width of just 22.5 mm. A reliable starting of heavy loads is ensured by a power reserve of up to 100% - the POWER BOOST The high operational reliability is also ensured in complex global networks MINI POWER also works in areas where static voltage dips are concerned, transient failures of the supply voltage or phase failure. Large capacitors ensure mains buffering of more than 20 ms under full load.
Features
- Worldwide use of wide-range output and international approval package
- High operational reliability thanks to high MTBF >500 000 h
- Parallel switch bar for increased output and redundancy
- Simplified operation by LED fault monitoring
- Outdoor installation permitted by temperature range of-25 ° C to +70 ° C
- U / I characteristic curve for supplying capacitive loads.
