Buy Phoenix Contact 2904597 Rail mounted PSU (DIN) 24 V 1.3 A 30 W Content 1 pc(s)

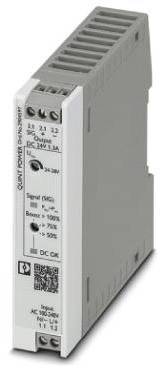

A grey, rectangular electronic device with multiple ports and markings, likely an industrial component.

Image similar

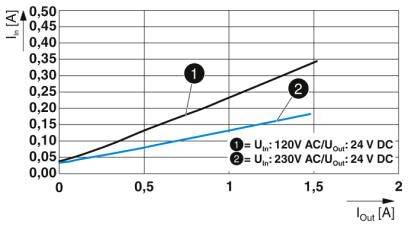

Diagram with two lines, showing relationship between output current (Iout) and input current (In). Line 1: 'Uin: 120V AC/Uout: 24V DC', Line 2: 'Uin: 230V AC/Uout: 24V DC'.

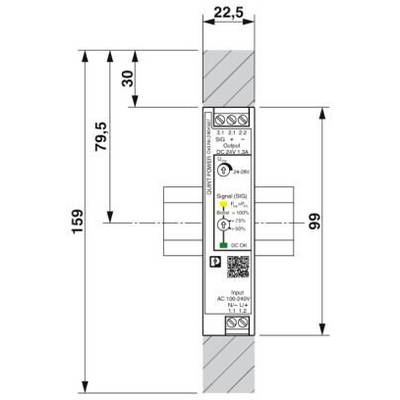

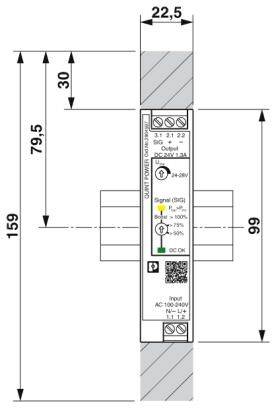

Figure shows a slim, vertical technical device with dimensional specifications. It has connections and LEDs for signal indication.

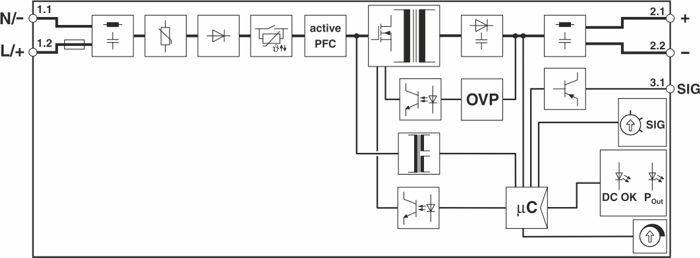

'Circuit diagram of a power supply system with active power factor correction, overvoltage protection, and microcontroller.'

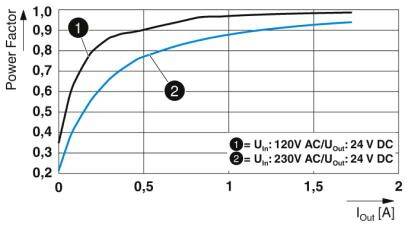

The diagram shows power factor in relation to output current. Two curves: 120V AC, 230V AC. Power factor increases with higher current.

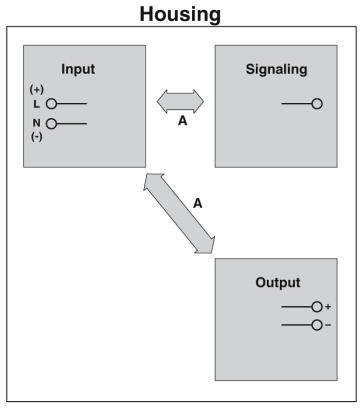

'Electrical Circuit Diagram: Top left Input with (+), L, N, (-); top right Signalling; bottom Output with (+), (-). Connecting arrows between units.'

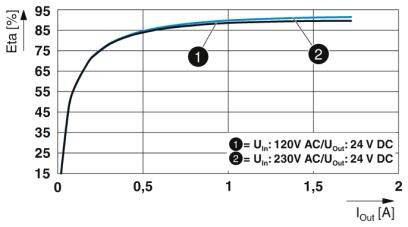

Diagram shows efficiency curve of a converter. Two curves: (1) Input: 120V AC, Output: 24V DC; (2) Input: 230V AC, Output: 24V DC. X-axis: Output current I_out[A], Y-axis: Eta[%].

1/7

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Withstand voltage 300 V/AC 30 s.
Wire stripping length: 8 mm
CURRENT CONSUMPTION 0.46 A (100 V/AC), 0.37 A (120 V/AC), 0.2 A (230 V/AC), 0.2 A (240 V/AC)
Nominal power consumption 37 VA

Type: Carry rail mounting

Nominal input voltage: 100-240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 24 V DC

Input voltage: 100 V/AC - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 1.3 A

Output current (max.) - rounded: 1.3 A

: 30 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V

Connection: Screws

Dim: (L x W x H) 90 x 22.5 x 99 mm

Weight: 0.188 kg

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V

Operating temperature (max.): +70 °C

Min. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2904597

Content: 1 pc(s)

MTBF: 1904000 h

PSU features: Regulated
Adjustable voltage output

Width: 22.5 mm

Height: 99 mm

Length: 90 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: QUINT4-PS/1AC/24DC/1.3/SC

Efficiency: 90.7 %

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 2904597 Rail mounted PSU (DIN) 24 V 1.3 A 30 W Content 1 pc(s)

Item no:2141025

This article

30 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

1.3 A

100 V AC

Phoenix Contact 2904605 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:2140951

30 W

Push-in connector

240 V AC

12 V DC

Adjustable

100 - 240 V/AC

2.5 A

100 V AC

Phoenix Contact 2904598 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)

Item no:2140988

60 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

2.5 A

100 V AC

Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)

Item no:2140996

60 W

Screws

264 V AC

48 V

48 V DC

Fixed voltage

100-240 V/AC

1.25 A

85 V AC

Phoenix Contact 2904371 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

Item no:2141009

90 W

Screws

575 V AC

24 V

24 V DC

Fixed voltage

400 - 500 V/AC

3.75 A

264 V AC

Phoenix Contact 2904608 Rail mounted PSU (DIN) 12 V 15 A 180 W Content 1 pc(s)

Item no:2141010

180 W

Screws

240 V AC

12 V

12 V DC

Adjustable

100-240 V/AC

15 A

100 V AC

Phoenix Contact 2904610 Rail mounted PSU (DIN) 5 A 240 W Content 1 pc(s)

Item no:2141011

240 W

Screws

240 V AC

48 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Phoenix Contact 2904607 Rail mounted PSU (DIN) 12 V DC 7.5 A 90 W No. of outputs:1 x Content 1 pc(s)

Item no:2141026

90 W

Push-in connector

240 V AC

12 V DC

Adjustable

AC 100 V - 240 V; DC 140 V - 300 V

7.5 A

100 V AC

Phoenix Contact 2903159 Rail mounted PSU (DIN) 5 A 240 W Content 1 pc(s)

Item no:2141033

240 W

Push-in connector

240 V AC

48 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Phoenix Contact 2904599 Rail mounted PSU (DIN) 24 V 3.8 A 90 W Content 1 pc(s)

Item no:2141035

90 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

3.8 A

100 V AC

Documents & Downloads

Datasheet

Datasheet 2141025 Phoenix Contact 2904597 Rail mounted PSU (DIN) 24 V 1.3 A 30 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2141025 Phoenix Contact 2904597 Rail mounted PSU (DIN) 24 V 1.3 A 30 W Content 1 pc(s)

Description

Start heavy loads with dynamic boost. Preventive function monitoring reports critical operating states before errors occur. Space saving in the control cabinet through slim and flat design.
