Buy Phoenix Contact 2904598 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)

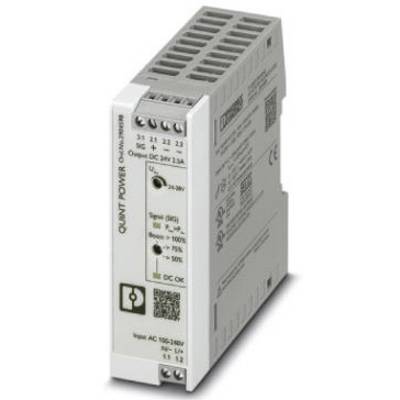

'QUINT POWER' Power Supply with Multiple Outputs and Voltage and Signal Displays, AC Input 100-240V, DC Output 24V 3.5A.

Image similar

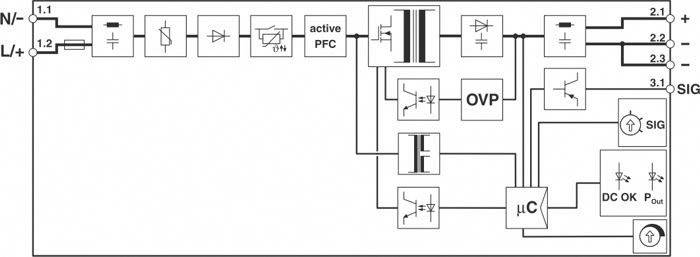

'Schematic block diagram of a power supply circuit with active power factor correction (PFC), overvoltage protection (OVP) and microcontroller (µC).'

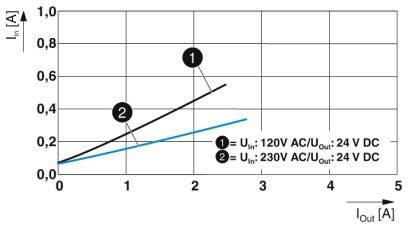

Diagram shows current characteristics 'I_in [A]' against 'I_out [A]' for two voltages: 1) 120V 'AC/U_out: 24V DC'; 2) 230V 'AC/U_out: 24V DC'. Line 2 has a steeper gradient.

'Schematic representation of a power supply with active power factor correction (PFC), overvoltage protection (OVP) and microcontroller (µC).'

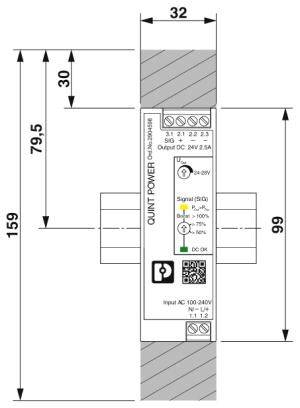

Circuit diagram of a power supply unit with AC input 100-240V and DC output 24V 2.5A. Dimensions: 159mm x 99mm x 32mm.

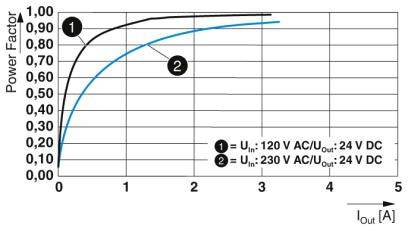

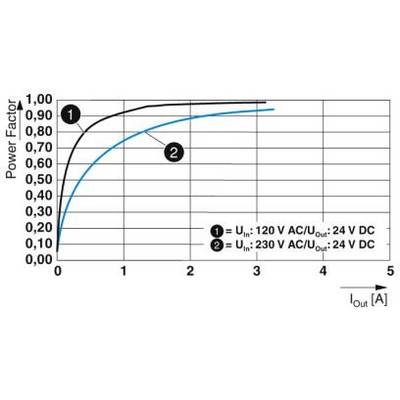

Current factor diagram shows curves for 120 V and 230 V input voltage. Both rise quickly initially, then flatten out at 1-5 A.

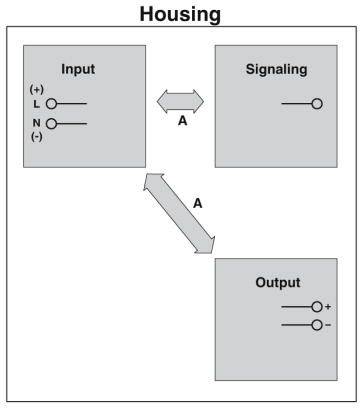

Schematic representation of a system with blocks: Input with Plus/Minus, signalling, and output. Arrows indicate connections.

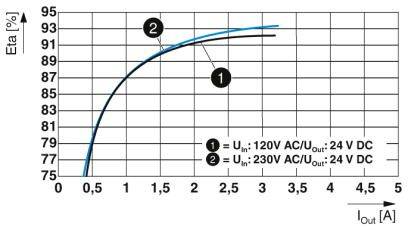

Graph shows efficiency curves of two power supplies. Axes: Efficiency (%) and Output Current (A). Higher input alternating voltage (230V) leads to higher efficiency.

1/8

Image similar

Datasheet (PDF)

Unavailable

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Withstand voltage 300 V/AC 30 s.
Wire stripping length: 8 mm
CURRENT CONSUMPTION 0.85 A (100 V/AC), 0.7 A (120 V/AC), 0.39 A (230 V/AC), 0.37 A (240 V/AC)
Rated power consumption 71 VA

Type: Carry rail mounting

Nominal input voltage: 100-240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 24 V DC

Input voltage: 100 V/AC - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

: 60 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V

Connection: Screws

Dim: (L x W x H) 90 x 32 x 99 mm

Weight: 0.244 kg

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V

Operating temperature (max.): +70 °C

Min. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2904598

Content: 1 pc(s)

MTBF: 1347000 h

PSU features: Regulated

Width: 32 mm

Height: 99 mm

Length: 90 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: QUINT4-PS/1AC/24DC/2.5/SC

Efficiency: 92.6 %

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2140988 Phoenix Contact 2904598 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2140988 Phoenix Contact 2904598 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)

Description

Start heavy loads with dynamic boost. Preventive function monitoring reports critical operating states before errors occur. Space saving in the control cabinet through slim and flat design.
