Name: Phoenix Contact 2904599 Rail mounted PSU (DIN) 24 V 3.8 A 90 W Content 1 pc(s)
Brand: Phoenix Contact
SKU: 2141035

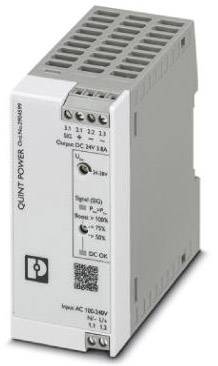

Industrial power supply unit in enclosure with markings: 'QUINT POWER', Input: AC 100-240V, Output: DC 24V/5A. Contains status indicators.

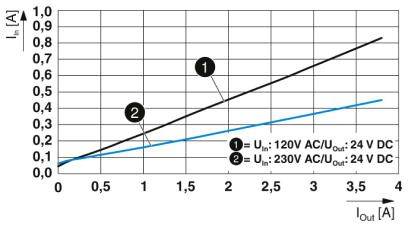

Diagram shows current curves: Black for Uin=120V AC/24V DC, Blue for Uin=230V AC/24V DC. Both show rising Iin to Iout.

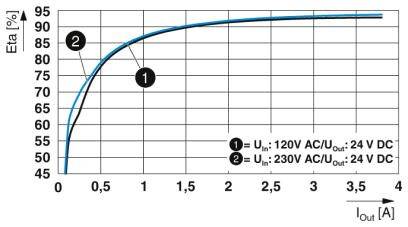

Graph shows efficiency curve of a power supply. Two curves: (1) V_in: 120V, V_out: 24V and (2) V_in: 230V, V_out: 24V. Efficiency increases with rising load.

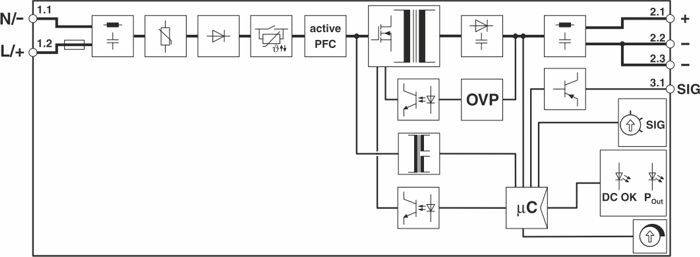

'Block diagram of a power supply with active power factor correction (PFC), over-voltage protection (OVP) and microcontroller. Shows current paths and components for electrical safety.'

Phoenix Contact 2904599 Rail mounted PSU (DIN) 24 V 3.8 A 90 W Content 1 pc(s)-4

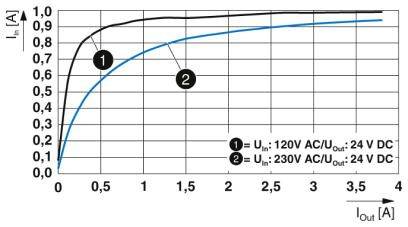

Graph shows current intensity (I_in) in relation to output current (I_out) for two voltages: 120V and 230V. Both curves rise up to 1 A.

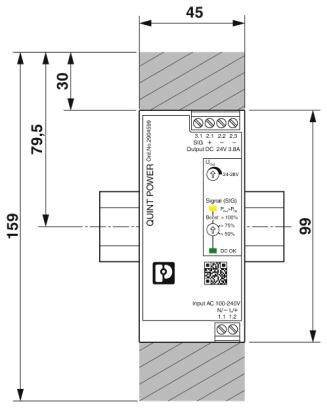

Figure of a power supply module with technical specifications and dimensions; height 159 mm, width 45 mm.

1/7

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Withstand voltage 300 V/AC 30 s.
Wire stripping length: 8 mm
CURRENT CONSUMPTION 1 A (100 V/AC), 0.83 A (120 V/AC), 0.46 A (230 V/AC), 0.44 A (240 V/AC)
Rated power consumption 104 VA

Type: Carry rail mounting

Nominal input voltage: 100-240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 24 V DC

Input voltage: 100 V/AC - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 3.8 A

Output current (max.) - rounded: 3.8 A

: 90 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V

Connection: Screws

Dim: (L x W x H) 90 x 45 x 99 mm

Weight: 0.296 kg

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V

Operating temperature (max.): +70 °C

Min. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2904599

Content: 1 pc(s)

MTBF: 1272000 h

PSU features: Adjustable voltage output

Width: 45 mm

Height: 99 mm

Length: 90 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: QUINT4-PS/1AC/24DC/3.8/SC

Efficiency: 93.7 %

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 2904599 Rail mounted PSU (DIN) 24 V 3.8 A 90 W Content 1 pc(s)

Item no:2141035

Unavailable

Conrad Electronic

This article

90 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

3.8 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2320911 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

Item no:2209722

Dispatches on Thu 22 Oct

Conrad Electronic

240 W

Push-fit screw connector

264 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

10 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Phoenix Contact 2902646 Rail mounted PSU (DIN) 10 A 50 W Content 1 pc(s)

Item no:2225461

Unavailable

Conrad Electronic

50 W

Screws

264 V AC

5 V DC

100-240 V/AC

10 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2902994 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

Item no:2225477

Unavailable

Conrad Electronic

90 W

Screws

264 V AC

24 V

24 V DC

Fixed voltage

100-240 V/AC

3.75 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)

Item no:2140996

Unavailable

Conrad Electronic

60 W

Screws

264 V AC

48 V

48 V DC

Fixed voltage

100-240 V/AC

1.25 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903002 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 15 V 6.67 A 100 W Content 1 pc(s)

Item no:2141057

Unavailable

Conrad Electronic

100 W

Screws

264 V AC

15 V

15 V DC

Fixed voltage

100-240 V/AC

6.67 A

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903144 Rail mounted PSU (DIN) 24 V 5 A 120 W Content 1 pc(s)

Item no:2225478

Unavailable

Conrad Electronic

120 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903145 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

Item no:2225479

Unavailable

Conrad Electronic

240 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

10 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903147 Rail mounted PSU (DIN) 24 V 3 A 72 W Content 1 pc(s)

Item no:2225480

Unavailable

Conrad Electronic

72 W

Push-in connector

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

3 A

100 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903156 Rail mounted PSU (DIN) 40 A 960 W Content 1 pc(s)

Item no:2225481

Unavailable

Conrad Electronic

960 W

Push-in connector

500 V AC

24 V DC

Adjustable

400 - 500 V/AC

40 A

400 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2141035 Phoenix Contact 2904599 Rail mounted PSU (DIN) 24 V 3.8 A 90 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2141035 Phoenix Contact 2904599 Rail mounted PSU (DIN) 24 V 3.8 A 90 W Content 1 pc(s)

Description

Start heavy loads with dynamic boost. Preventive function monitoring reports critical operating states before errors occur. Space saving in the control cabinet through slim and flat design.
