Buy Phoenix Contact 2904605 Rail mounted PSU (DIN) 2.5 A 30 W Content 1 pc(s)

Industrial electronics module with 'QUINT-DIODE' label, interfaces and technical specifications on the side.

Image similar

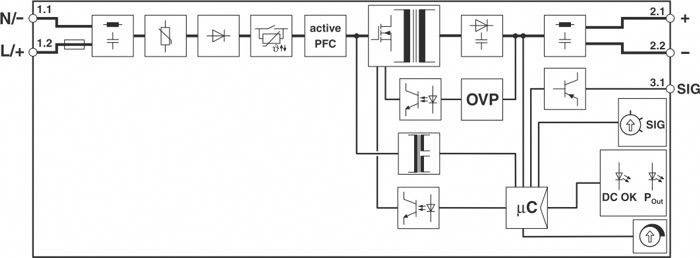

'Schematic representation of a power supply circuit diagram with components such as rectifier, active PFC, OVP, and microcontroller.'

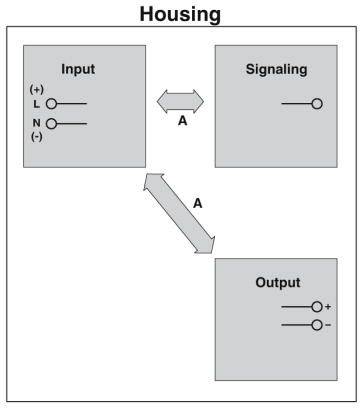

'Diagram of the circuit housing: Input with positive and negative poles, signal transmission path A, output with positive and negative poles.'

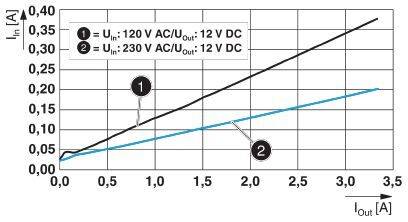

The diagram shows the input current In [A] against the output current Iout [A]. Two lines: Uin=120 V AC (steeper), Uin=230 V AC (shallower).

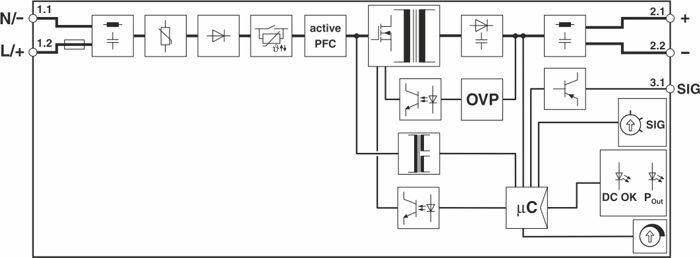

'Circuit diagram of a power supply with active power factor correction (PFC), overvoltage protection (OVP) and microcontroller (µC) for signal and DC output.'

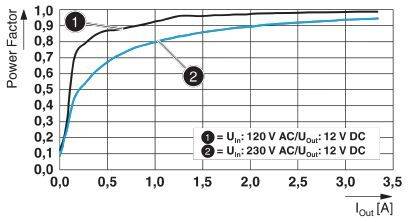

Diagram shows power factor against output current. Curves for 120 V and 230 V AC start near 0, rise and flatten between 0.9 and 1.0.

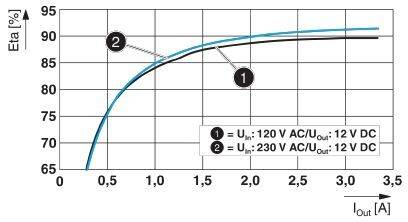

Graph shows efficiency (Eta) in percentage on Y-axis and output current (I_out) in amperes on X-axis. Two curves compared: 'U_in=120 V AC/U_out=12 V DC' and 'U_in=230 V AC/U_out=12 V DC'. Curves approach 90% efficiency.

1/7

Image similar

Datasheet (PDF)

Unavailable

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Dielectric strength 300 V/AC 60 s.
Wire stripping length: 10 mm
CURRENT CONSUMPTION 0.44 A (100 V/AC), 0.35 A (120 V/AC), 0.19 A (230 V/AC), 0.2 A (240 V/AC)
Nominal power consumption 32.8 VA

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 12 V DC

Input voltage: 100 V/AC - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

: 30 W

Phases: 1

Connection: Push-in connector

Dim: (L x W x H) 90 x 22.5 x 106 mm

Weight: 0.181 kg

Output voltage (max.): 12 V DC

Operating temperature (max.): +70 °C

Min. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2904605

Content: 1 pc(s)

MTBF: 1848000 h

Width: 22.5 mm

Height: 106 mm

Length: 90 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: QUINT4-PS/1AC/12DC/2.5/PT

Efficiency: 90.9 %

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2140951 Phoenix Contact 2904605 Rail mounted PSU (DIN) 2.5 A 30 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2140951 Phoenix Contact 2904605 Rail mounted PSU (DIN) 2.5 A 30 W Content 1 pc(s)

Description

Primary switched power supply, QUIN POWER, push-in connection, rail mounting, input: 1-phase, output: 12 V DC / 2.5 A.
