Buy Phoenix Contact 2904608 Rail mounted PSU (DIN) 12 V 15 A 180 W Content 1 pc(s)

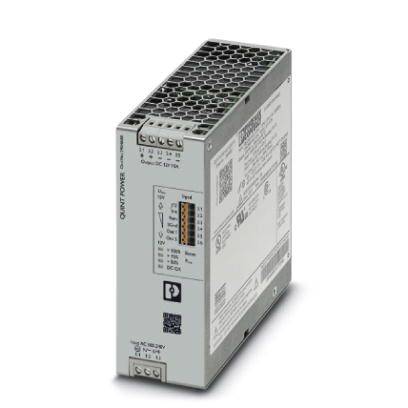

A grey electrical switch mode power supply unit with technical specifications printed. Manufacturer information is visible.

Image similar

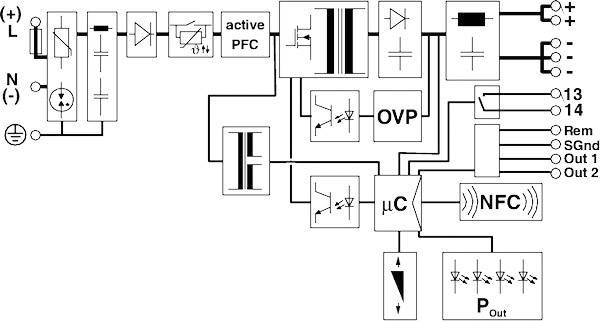

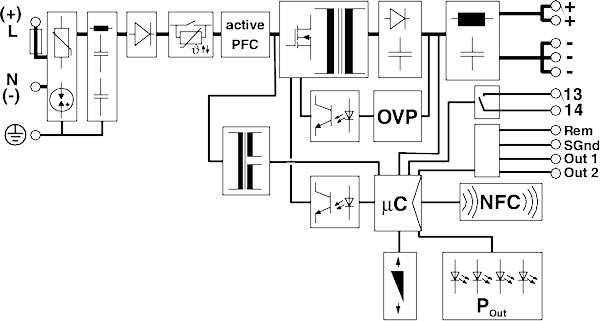

Circuit diagram shows a power supply with PFC, OVP, microcontroller and NFC. Connections: '+'/'-', 'Rem', 'SGnd', 'Out 1', 'Out 2'.

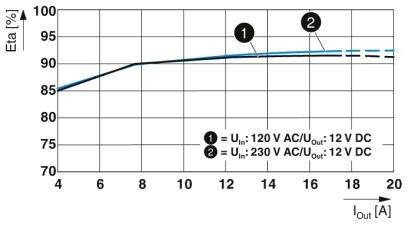

Graph shows efficiency (η) in percentage over output current (I_out) in amperes. Two curves: 1) U_in=120 V AC, 2) U_in=230 V AC at U_out=12 V DC. Rising trend.

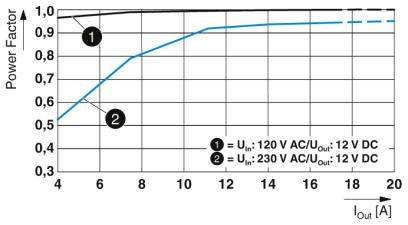

'Diagram shows power factor (0.5 to 0.9) against output current I_out (4 to 20 A). Two lines: 1) U_in=120 V AC, 2) U_in=230 V AC.'

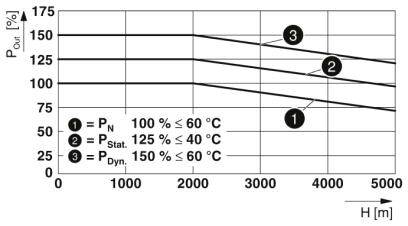

Graph shows 'PQm' in percentage against height in metres. Lines represent P_N, P_Stat., P_Dyn. with values and temperature conditions.

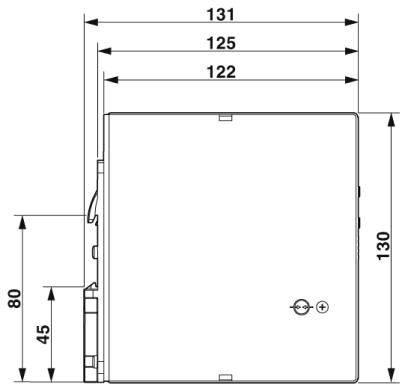

Technical drawing of a rectangular box with dimensions: width 131 mm, 125 mm, 122 mm at the front; height 130 mm and 80 mm.

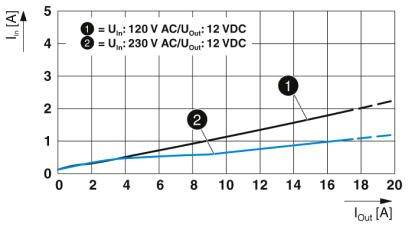

The diagram shows a current characteristic curve with two curves: 'Uin=120 V AC/Uout=12 VDC' (rising) and 'Uin=230 V AC/Uout=12 VDC' (flatter). X-axis: Iout [A], Y-axis: Iin [A].

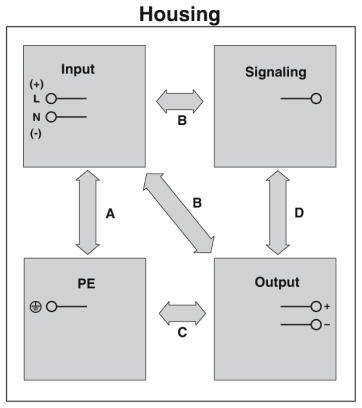

Block diagram with four fields in 'Housing': 'Input', 'Signalling', 'Output', 'PE'. Arrows mark connections A, B, C, D.<br><br>Note: I've used the British English spelling of 'Signalling' (with two 'l's) instead of the American 'Signaling'.

Power Supply Diagram: Circuits demonstrate energy flow through active PFC, OVP, μC and NFC to various outputs.

1/9

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Dielectric strength 300 V/AC 60 s.
Stripped length: 6.5 mm
CURRENT CONSUMPTION 2.4 A (100 V/AC), 1.9 A (120 V/AC), 1.1 A (230 V/AC), 1.1 A (240 V/AC)
Nominal power consumption 221 VA

Nominal input voltage: 100-240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 12 V DC

Input voltage: 100 V/AC - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 15 A

Output current (max.) - rounded: 15 A

: 180 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 12 V

Connection: Screws

Dim: (L x W x H) 125 x 50 x 130 mm

Weight: 1 kg

Output voltage (max.): 12 V DC

Output voltage (min.): 12 V

Operating temperature (max.): +70 °C

Min. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2904608

Content: 1 pc(s)

MTBF: 1196000 h

PSU features: Adjustable voltage output
Regulated

Width: 50 mm

Height: 130 mm

Length: 125 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: QUINT4-PS/1AC/12DC/15

Efficiency: 92 %

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

Phoenix Contact 2904608 Rail mounted PSU (DIN) 12 V 15 A 180 W Content 1 pc(s)

Item no:2141010

This article

180 W

Screws

240 V AC

12 V

12 V DC

Adjustable

100-240 V/AC

15 A

100 V AC

Phoenix Contact 2904605 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:2140951

30 W

Push-in connector

240 V AC

12 V DC

Adjustable

100 - 240 V/AC

2.5 A

100 V AC

Phoenix Contact 2904598 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)

Item no:2140988

60 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

2.5 A

100 V AC

Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)

Item no:2140996

60 W

Screws

264 V AC

48 V

48 V DC

Fixed voltage

100-240 V/AC

1.25 A

85 V AC

Phoenix Contact 2904371 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

Item no:2141009

90 W

Screws

575 V AC

24 V

24 V DC

Fixed voltage

400 - 500 V/AC

3.75 A

264 V AC

Phoenix Contact 2904610 Rail mounted PSU (DIN) 5 A 240 W Content 1 pc(s)

Item no:2141011

240 W

Screws

240 V AC

48 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Phoenix Contact 2904597 Rail mounted PSU (DIN) 24 V 1.3 A 30 W Content 1 pc(s)

Item no:2141025

30 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

1.3 A

100 V AC

Phoenix Contact 2904607 Rail mounted PSU (DIN) 12 V DC 7.5 A 90 W No. of outputs:1 x Content 1 pc(s)

Item no:2141026

90 W

Push-in connector

240 V AC

12 V DC

Adjustable

AC 100 V - 240 V; DC 140 V - 300 V

7.5 A

100 V AC

Phoenix Contact 2903159 Rail mounted PSU (DIN) 5 A 240 W Content 1 pc(s)

Item no:2141033

240 W

Push-in connector

240 V AC

48 V DC

Adjustable

100-240 V/AC

5 A

100 V AC

Phoenix Contact 2904599 Rail mounted PSU (DIN) 24 V 3.8 A 90 W Content 1 pc(s)

Item no:2141035

90 W

Screws

240 V AC

24 V

24 V DC

Adjustable

100-240 V/AC

3.8 A

100 V AC

Documents & Downloads

Datasheet

Datasheet 2141010 Phoenix Contact 2904608 Rail mounted PSU (DIN) 12 V 15 A 180 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2141010 Phoenix Contact 2904608 Rail mounted PSU (DIN) 12 V 15 A 180 W Content 1 pc(s)

Description

Preventive function monitoring reports critical operating states before errors occur. Notification thresholds and characteristic curves can be set via NFC to maximize plant availability. Power reserve for easy system expansion by static boost with a permanent power up to 125% and start of difficult loads by dynamic boost with up to 200% for 5 s. High interference resistance through integrated gas arrester and more than 20 milliseconds mains failure bridging time. Robust design through metal housing and temperature range from - 40 °C to + 70 °C. Can be used worldwide through wide-range input and international approval package.

This text is machine translated.
