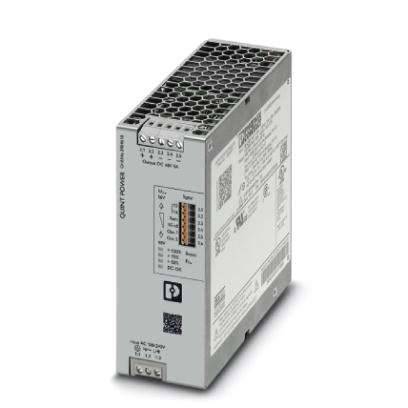

Phoenix Contact 2904610 Rail mounted PSU (DIN) 5 A 240 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications

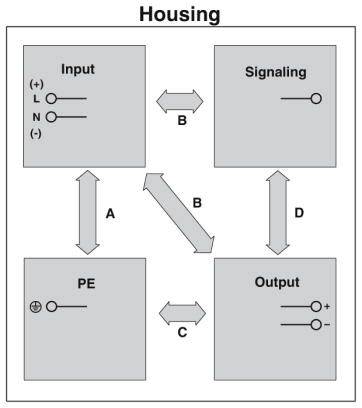

- Dielectric strength 300 V/AC 60 s.
- Stripped length: 6.5 mm
- POWER CONSUMPTION 3.4 A (100 V/AC), 2.8 A (120 V/AC), 1.5 A (230 V/AC), 1.5 A (240 V/AC)
- Rated power consumption 271 VA
- Nominal input voltage
100-240 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
100 V AC
- Output voltage
48 V DC
- Input voltage
100 V/AC - 240 V AC
- Input voltage (max.)
240 V AC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
240 W
- Output type (power supply units)
Adjustable
- Phases
1
- Connection
Screws

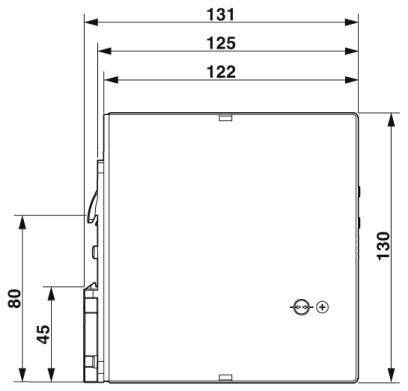

- Dim
(L x W x H) 125 x 50 x 130 mm
- Weight
1 kg
- Output voltage (max.)
48 V DC
- Operating temperature (max.)
+70 °C
- Min. operating temperature (derating)
+60 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
2904610
- Content
1 pc(s)
- MTBF
1242000 h
- PSU features
Adjustable voltage output
- Width
50 mm
- Height
130 mm
- Length
125 mm
IP20
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Type
QUINT4-PS/1AC/48DC/5

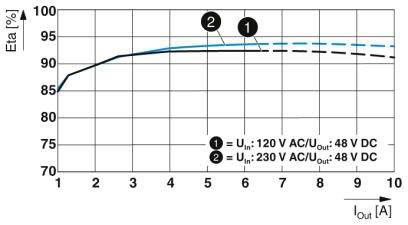

- Efficiency
93.5 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2141011 Phoenix Contact 2904610 Rail mounted PSU (DIN) 5 A 240 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2141011 Phoenix Contact 2904610 Rail mounted PSU (DIN) 5 A 240 W Content 1 pc(s)
Description
Preventive function monitoring reports critical operating states before errors occur. Notification thresholds and characteristic curves can be set via NFC to maximize plant availability. Power reserve for easy system expansion by static boost with a permanent power up to 125% and start of difficult loads by dynamic boost with up to 200% for 5 s. High interference resistance through integrated gas arrester and more than 20 milliseconds mains failure bridging time. Robust design through metal housing and temperature range from - 40 °C to + 70 °C. Can be used worldwide through wide-range input and international approval package.
