Name: Phoenix Contact 2904611 Rail mounted PSU (DIN) 48 V 10 A 480 W Content 1 pc(s)
Brand: Phoenix Contact
SKU: 2141047

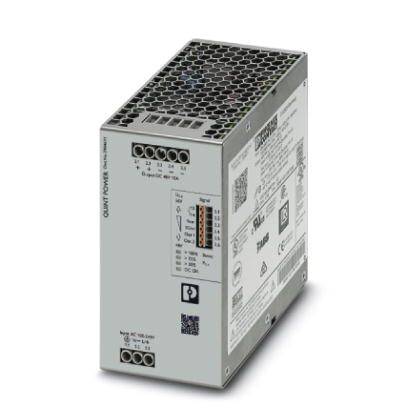

Switching device in the form of a grey rectangular box, with multiple connection terminals and technical information printed on it.

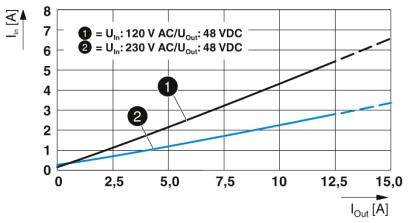

Diagram shows output current (Iout in A) vs. input current (Iin in A) for two voltages: 120 V AC and 230 V AC, both with 48 V DC output. Line 1 and Line 2 depicted.

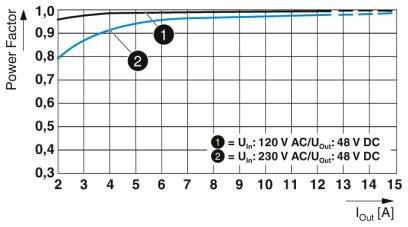

'Diagram: Performance Ratio against Output Current. Curve 1: Input 120 V AC/Output 48 V DC. Curve 2: Input 230 V AC/Output 48 V DC.'

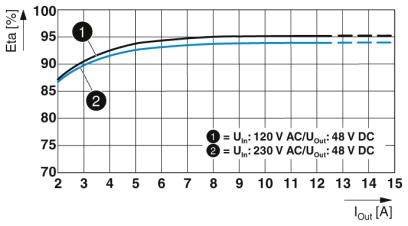

Efficiency Diagram: Shows two curves at 120V AC and 230V AC input voltage, with output current ranging from 3-15A. Efficiency exceeding 85%.

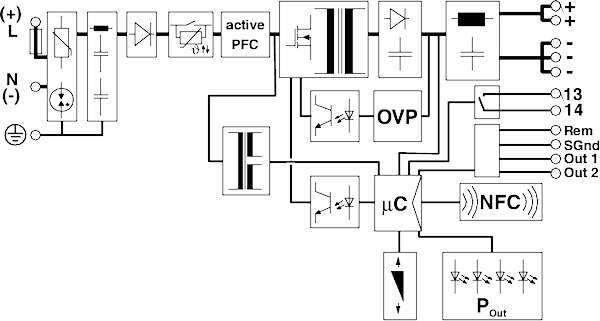

'Electronic circuit diagram of a power supply with active power factor correction (PFC), over-voltage protection (OVP), microcontroller (µC) and NFC interface.'

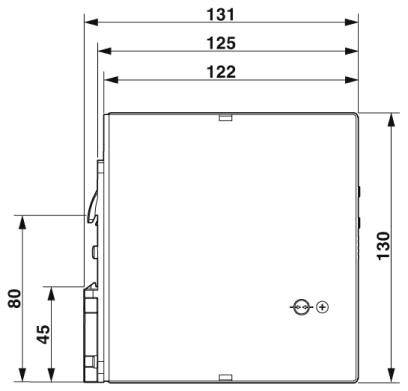

Dimensional diagram of a rectangular enclosure with dimensions: width 131, 125, 122 mm; height 130 mm; side height 80 mm; depth 45 mm.

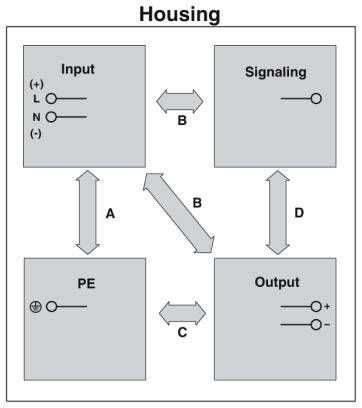

Schematic diagram of a system: Top left "Input" with connections L, N, -, right "Signalling", bottom right "Output" with +,-, bottom left "PE". Arrows A, B, C, D show connections.

1/7

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Dielectric strength 300 V/AC 60 s.
Stripped length: 6.5 mm
CURRENT CONSUMPTION 6.8 A (100 V/AC), 5.5 A (120 V/AC), 2.8 A (230 V/AC), 2.7 A (240 V/AC)
Rated power consumption 519 VA

Nominal input voltage: 100-240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 48 V DC

Input voltage: 100 V/AC - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 10 A

Output current (max.) - rounded: 10 A

: 480 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 48 V

Connection: Screws

Dim: (L x W x H) 125 x 70 x 130 mm

Weight: 1.3 kg

Output voltage (max.): 48 V DC

Output voltage (min.): 48 V

Operating temperature (max.): +70 °C

Max. operating temperature (derating): 70 °C

Min. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2904611

Content: 1 pc(s)

MTBF: 1100000 h

PSU features: Adjustable voltage output
Regulated

Width: 70 mm

Height: 130 mm

Length: 125 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: QUINT4-PS/1AC/48DC/10

Efficiency: 95 %

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power
