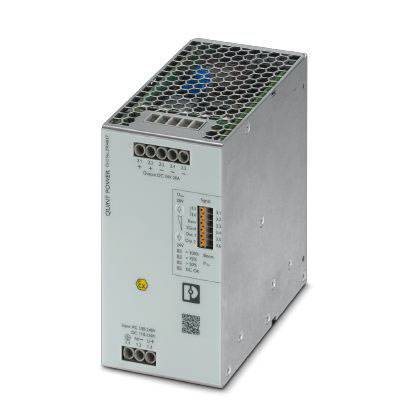

Phoenix Contact 2904617 Rail mounted PSU (DIN) 24 V 20 A 480 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications

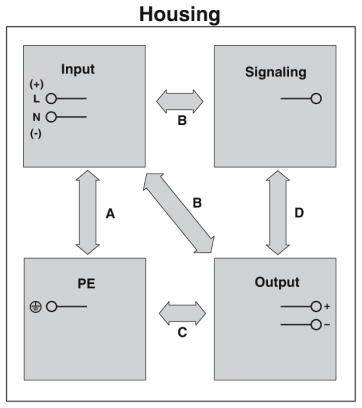

- Dielectric strength 300 V/AC 60 s.
- Wire stripping length: 8 mm

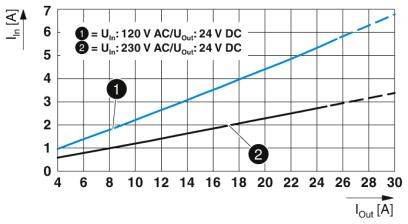

- CURRENT CONSUMPTION 6.8 A (100 V/AC), 5.5 A (120 V/AC), 2.8 A (230 V/AC), 2.7 A (240 V/AC)
- Nominal power consumption 520 VA
- Nominal input voltage
100-240 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
100 V AC
- Output voltage
24 V DC
- Input voltage
100 V/AC - 240 V AC
- Input voltage (max.)
240 V AC
- Max. output current
20 A
- Output current (max.) - rounded
20 A
480 W
- Output type (power supply units)
Adjustable
- Output voltage (nominal)
24 V
- Connection
Screws

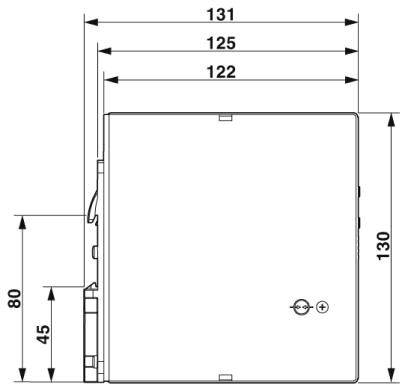

- Dim
(L x W x H) 125 x 70 x 130 mm
- Weight
1.3 kg
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V
- Operating temperature (max.)
+75 °C
- Max. operating temperature (derating)
70 °C
- Min. operating temperature (derating)
+60 °C
- Operating temperature (min.)
-40 °C
- Manufacturer part #
2904617
- Content
1 pc(s)
- MTBF
868000 h
- PSU features
Adjustable voltage output
- Width
70 mm
- Height
130 mm
- Length
125 mm
IP20
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Type
QUINT4-PS/1AC/24DC/20/+

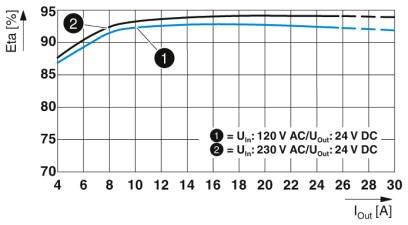

- Efficiency
94.2 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2140956 Phoenix Contact 2904617 Rail mounted PSU (DIN) 24 V 20 A 480 W Content 1 pc(s)
Datasheet 2140956 Phoenix Contact 2904617 Rail mounted PSU (DIN) 24 V 20 A 480 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2140956 Phoenix Contact 2904617 Rail mounted PSU (DIN) 24 V 20 A 480 W Content 1 pc(s)
Description

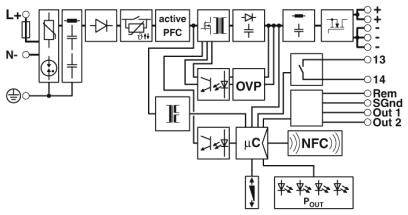

SFB Technology selectively triggers Standard miniature circuit breakers; consumers connected in parallel continue to operate. Preventive function monitoring reports critical operating states before errors occur. Notification thresholds and characteristic curves can be set via NFC to maximize plant availability. Simple system extension through static boost, starting of difficult loads through dynamic boost. High noise immunity through integrated gas discharge and more than 20 milliseconds power failure bridging time. Robust design through metal housing and temperature range from - 40 °C to + 70 °C. Can be used worldwide through wide-range input and international approval package.
