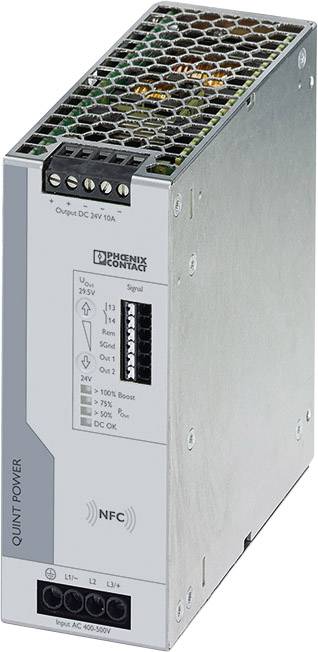

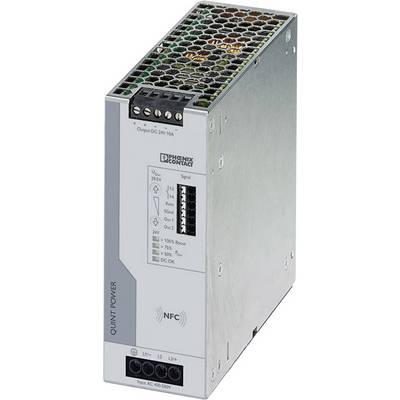

Phoenix Contact 2904621 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:3 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 201.67 / piece)
€ 201.67
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Primary-switched power supply QUINT POWER for rail mounting
- 24 V DC/ 10 A
- Selective Fuse Breaking Technology (SFB): 6 times the rated current for 15 ms
- Power reserves: Static boost up to 125% continuously and dynamic boost up to 200% for 5 s.
- Integrated gas discharge
- Temperature range: -40 °C – +70 °C
- NFC interface
Technical specifications
- Nominal input voltage
400 - 500 V/AC
- Product type
Rail mounted PSU (DIN)
- Max. output current
10 A
- Output current (max.) - rounded
10 A
240 W
- Output type (power supply units)
Adjustable
- Output voltage (nominal)
24 V DC
- No. of outputs
3 x
- Connection
Screw terminal
- Dim
(L x W x H) 125 x 50 x 130 mm
- Weight
900 g
- Output voltage (max.)
29.5 V
- Output voltage (min.)
24 V
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-40 °C
- Manufacturer part #
2904621
- Content
1 pc(s)
- PSU features
Regulated
- Width
50 mm
- Height
130 mm
- Length
125 mm
IP20
- Type
QUINT4-PS/3AC/24DC/10
50
130 mm
125 mm
130 mm
274 W
FALSE
TRUE
AC
Screw connection
TRUE
IP20
None
None
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1438978 Phoenix Contact 2904621 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:3 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1438978 Phoenix Contact 2904621 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:3 x Content 1 pc(s)
Description
QUINT POWER customizable power supply
The fourth generation of high-performance power supplies and QUINT POWER provides with new functions for maximum system availability. Alarm thresholds and characteristics, the
NFC interface can be individually adjusted.
-SFB technology solves standard circuit breakers selective, parallel connected consumers continue to work
- Preventive function monitoring reports critical operating conditions before errors occur
- Adjustable Alarm thresholds and maximize via NFC characteristics the plant availability
- Simple system expansion by static boost, starting under heavy loads with dynamic boost
- High noise immunity through integrated gas and more than 20 milliseconds power outage bridging time.
This text is machine translated.
The fourth generation of high-performance power supplies and QUINT POWER provides with new functions for maximum system availability. Alarm thresholds and characteristics, the
NFC interface can be individually adjusted.
-SFB technology solves standard circuit breakers selective, parallel connected consumers continue to work
- Preventive function monitoring reports critical operating conditions before errors occur
- Adjustable Alarm thresholds and maximize via NFC characteristics the plant availability
- Simple system expansion by static boost, starting under heavy loads with dynamic boost
- High noise immunity through integrated gas and more than 20 milliseconds power outage bridging time.
This text is machine translated.
