Phoenix Contact 2904801 RAD-900-ANT-OMNI-2-2-RSMA Antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type of connection: RSMA (male)
- Width 0.3 cm
- Height: 8.9 cm
- Ambient conditions: Environmental conditions
- Protection system: IP65
- Ambient temperature (operation): -40 °C ... 75 °C
- Mounting type: Wall mounting
- Frequency range 900 MHz
- Stem wave ratio VSWR in 50-Ω-System: ≤ 2.00
- Material V2A;V2A
- Connection technology: Connection technology
- Note for application: Only for industrial use
- Impedance 50 Ω
- 900 MHz ...
- Gain 2.15 dBi
- Opening angle vertical: N/A
- Horizontal opening angle: 360 °
- Polarisation: linear, vertical
- Connection cable: Yes
- Type
RAD-900-ANT-OMNI-2-2-RSMA
- Product type
Antenna
- Manufacturer part #
2904801
- Dim
(W x H) 0.3 cm x 8.9 cm
- Width
0.3 cm
- Height
8.9 cm
IP65
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579767 Phoenix Contact 2904801 RAD-900-ANT-OMNI-2-2-RSMA Antenna
User & Safety Instructions
User & Safety Instructions 3579767 Phoenix Contact 2904801 RAD-900-ANT-OMNI-2-2-RSMA Antenna
Description

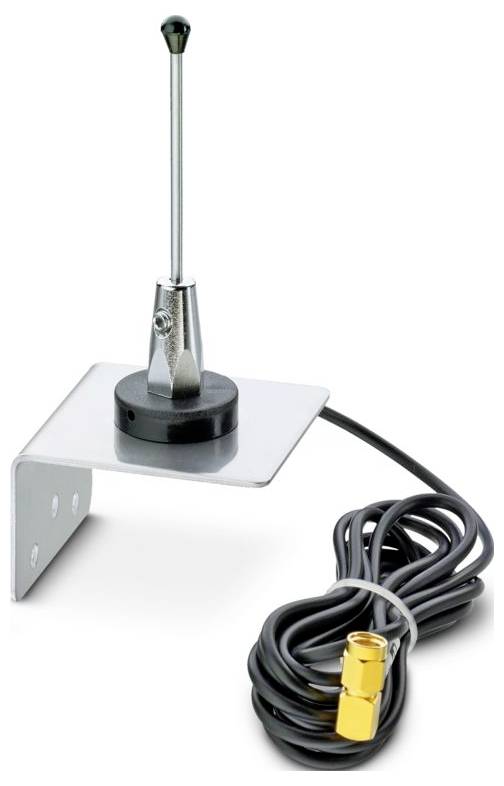

Omnidirectional antenna, 900 MHz, gain : 2 dBi, polarization: Linear, protection class: IP65, RSMA (male), includes 1.8 m connection cable and mounting bracket for wall mounting
