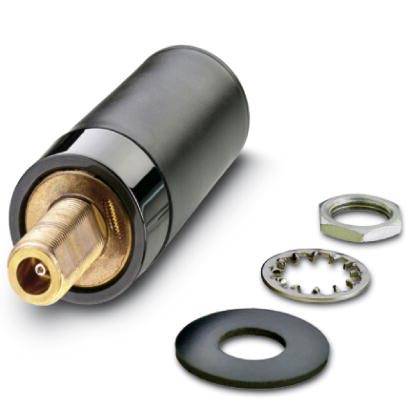

A black, round adapter with a metal connection and three washers, including a serrated and a hexagonal nut.

Image similar

A black, round adapter with a metal connection and three washers, including a serrated and a hexagonal nut.

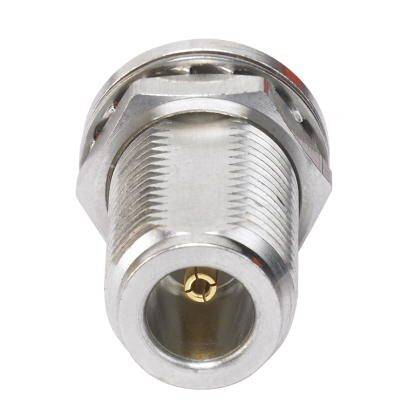

Metallic coaxial plug, viewed from the front, with a knurled surface and a gold-plated inner contact, for cable connections.

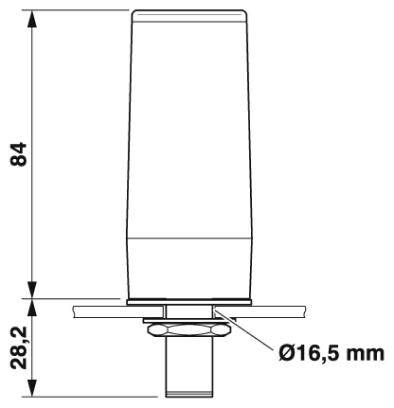

Drawing of a cylindrical part with a length of 84 mm and a diameter of 16.5 mm, mounted on a plate.

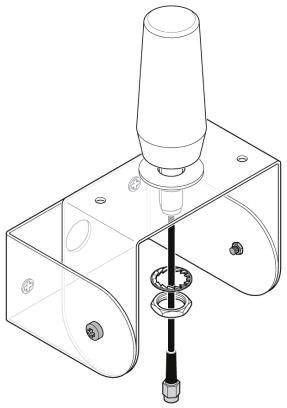

A technical drawing shows a wall mount with a vertical mounting rod and a conical handle at the top.

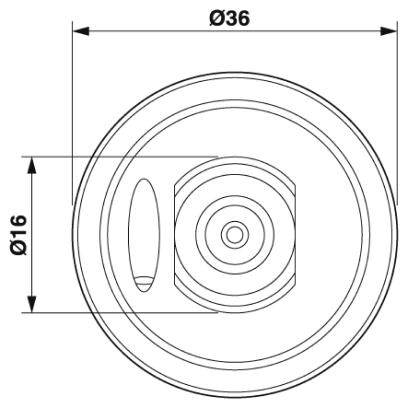

Technical Drawing: Top View of a Cylindrical Form with Two Diameters, 36 mm external and 16 mm internal, showing details and dimensional specifications.

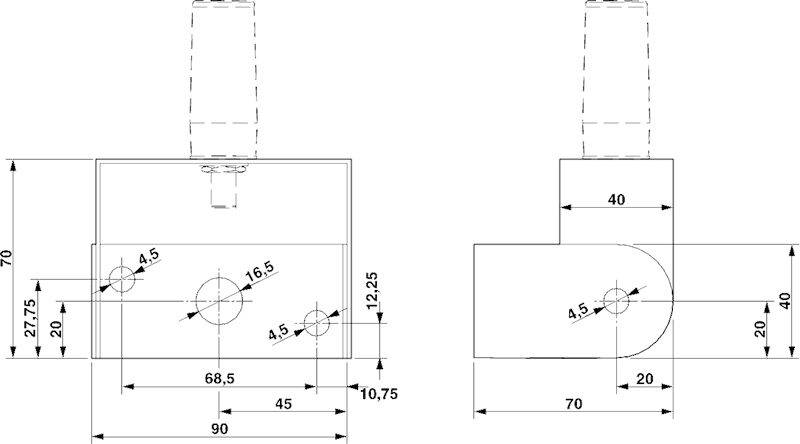

Technical drawing of a component with dimensions. Shows two views: top view with 90 mm width, 70 mm height, several holes marked.

1/6

Image similar

Phoenix Contact

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

IP66 protection rating
Ambient temperature (operation): -40 °C ... 70 °C
Horizontal opening angle 360 °
Vertical opening angle 50 °
Polarisation: linear, vertical
Impedance 50 Ω
Connection type: Type N (female)
Material Xenoy 5720U-7014 (antenna housing)
Mounting type: Control cabinet
Diameter: 36 mm
With connection cable: no.
Mounting instructions: Optional wall mounting

Product type: Antenna

Type: RAD-900-ANT-OMNI-2-N

Manufacturer part #: 2904802

Height: 84 mm

: Other

: 84 mm

: 36 mm

: -40-70 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2225617 Phoenix Contact 2904802 Antenna

User & Safety Instructions

User & Safety Instructions 2225617 Phoenix Contact 2904802 Antenna

Description

For free moving applications. For multipoint or mesh connections.
