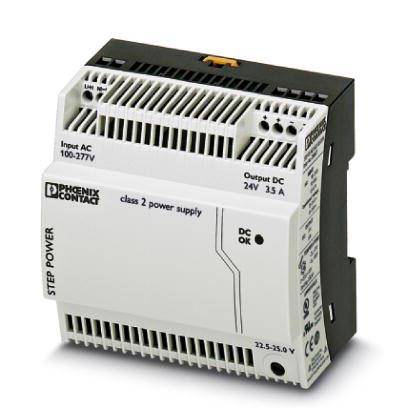

Phoenix Contact 2904945 Rail mounted PSU (DIN) 24 V 3.5 A 84 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Stripped length: 6.5 mm
- CURRENT CONSUMPTION 1.43 A (120 V/AC), 0.75 A (277 V/AC)
- Rated power consumption 147.7 VA
- Nominal input voltage
100 - 240 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
24 V DC
- Input voltage
85 V/AC - 305 V AC
- Input voltage (max.)
305 V AC
- Max. output current
3.5 A
- Output current (max.) - rounded
3.5 A
84 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
24 V
- Connection
Screws
- Dim
(L x W x H) 61 x 90 x 90 mm
- Weight
0.3 kg
- Output voltage (max.)
24 V DC
- Output voltage (min.)
22.5 V
- Operating temperature (max.)
+70 °C
- Min. operating temperature (derating)
+55 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
2904945
- Content
1 pc(s)
- MTBF
1094000 h
- PSU features
Adjustable voltage output
- Width
90 mm
- Height
90 mm
- Length
61 mm
IP20
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Type
STEP-PS/277AC/24DC/3.5
- Efficiency
88 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225619 Phoenix Contact 2904945 Rail mounted PSU (DIN) 24 V 3.5 A 84 W Content 1 pc(s)
Datasheet 2225619 Phoenix Contact 2904945 Rail mounted PSU (DIN) 24 V 3.5 A 84 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2225619 Phoenix Contact 2904945 Rail mounted PSU (DIN) 24 V 3.5 A 84 W Content 1 pc(s)
Description
Flexible mounting by simply snapping onto the mounting rail or screwing on the level surface. Reliable supply through the high MTBF (Mean Time Between Failure) of more than 500,000 hours and U/I characteristic curve.
