Phoenix Contact 2905256 CHECKMASTER 2 Surge protection control unit 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
TESTER CHECKMASTER 2
- Easy to Use
- Simple and tool-free change of test adapters
- Easy transfer of measurement protocols to Office programs
- Simple update of the system software via USB stick
Technical specifications
- Material: housing: ABS
- Overvoltage category II
- Pollution level: 2
- Protection class: I
- Connection cable 3 m, H05 VV-F
- Product type
Surge protection control unit
- Nominal voltage
230 V
- Operating temperature
5 - 35 °C
IP30
- Manufacturer part #
2905256
- Factory colour
Black
Silver
- Standards
DIN EN 61010-1 2011
- Dim
(W x H x D) 432 x 170 x 301 mm
- Width
432 mm
- Height
170 mm
- Depth
301 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1830537 Phoenix Contact 2905256 CHECKMASTER 2 Surge protection control unit 1 pc(s)
Description
Modular tester for almost all plug-in surge arresters from Phoenix Contact.
This text is machine translated.
This text is machine translated.
Features
- Color touch display with virtual keyboard
- Integrated programmable logic controller with high-voltage source and constant power source
- Automatic and program-controlled testing of overvoltage protection devices
- Barcode scanner for the automatic detection of overvoltage protection devices for reading user-specific barcodes
- USB interface for connecting commercially available USB sticks

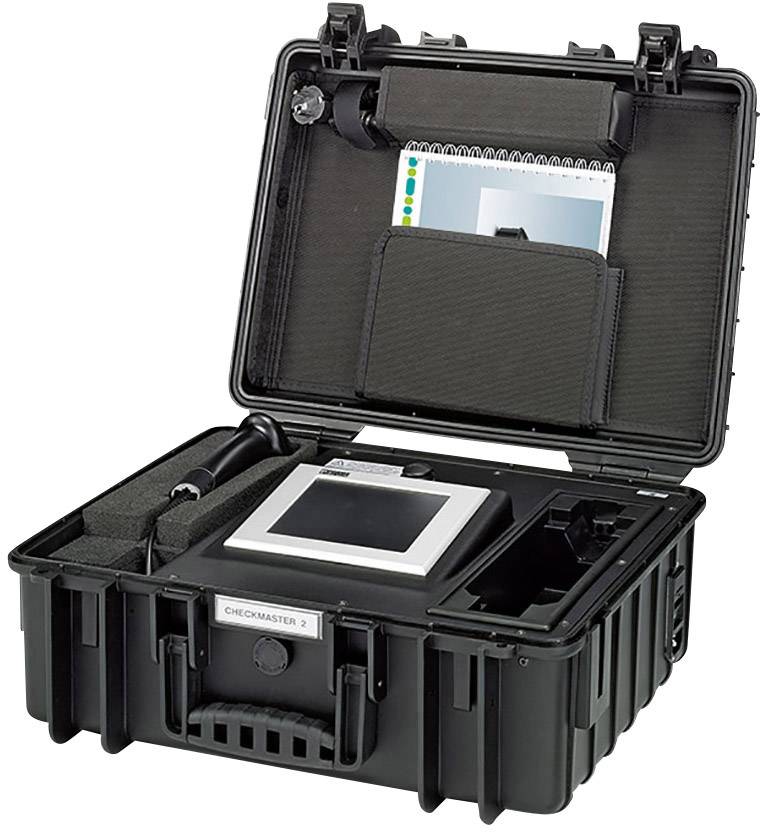

- Robust plastic carrying case with removable lid
- Additional compartment for another test adapter.
Scope of delivery
- CHECKMASTER 2
- Carrying case
- User manual.
Hints
The CHECKMASTER 2 does not include test adapters. Required test adapters must be ordered separately.
