Phoenix Contact 2905465 FLT-SEC-T1+T2-1C-350/25-FM Switchboard surge protection Surge protection for: Switchboards 25 kA
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Switchboard surge protection
- Surge protection for
Switchboards
- Leakage current
25 kA
- Nominal voltage
230 V
IP20
- Manufacturer part #
2905465
- Type
FLT-SEC-T1 + T2-1 C -350/25-FM
- Standards
IEC 61643, EN 61643 2012 2011
- Dim
(W x H x D) 35.60 x 95.20 x 74.50 mm
- Width
35.60 mm
- Height
95.20 mm
- Depth
74.50 mm
- Content
1 pc(s)
DIN rail (top hat rail) 35 mm
1
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1499624 Phoenix Contact 2905465 FLT-SEC-T1+T2-1C-350/25-FM Switchboard surge protection Surge protection for: Switchboards 25 kA
User & Safety Instructions
User & Safety Instructions 1499624 Phoenix Contact 2905465 FLT-SEC-T1+T2-1C-350/25-FM Switchboard surge protection Surge protection for: Switchboards 25 kA
Description

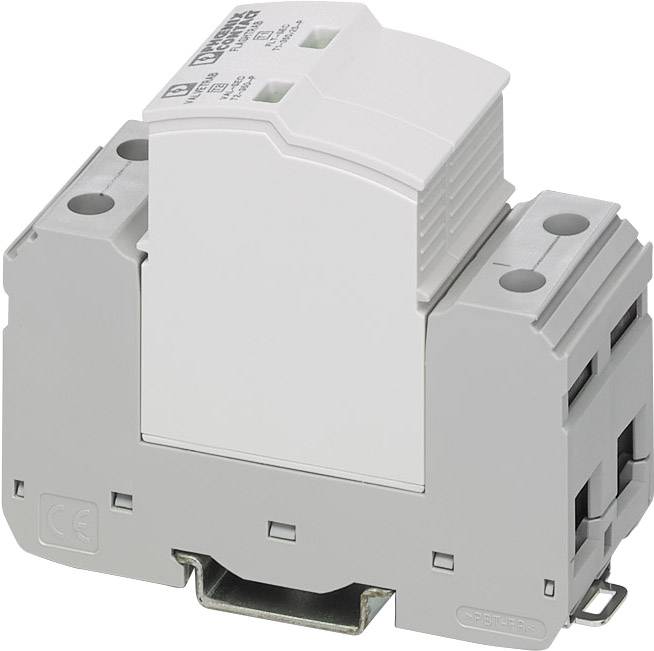

Plug-in lightning current and surge arrester combination, in accordance with type 1+2/Class I + II, for 1-phase power supply networks, with combined mislaid PE and N in a conductor (L1, PEN).
