Phoenix Contact 2905577 1 pc(s)
EAN:
Part number:
Item no:
Input signal (current) (max.)
20 mA
Type
2905577
Dim
(L x W x H) 101.2 x 6.2 x 93.1 mm
Output (current)
0/4 .... 20 mA
Input signal (current)
0/4 .... 20 mA
Technical specifications
- Type
2905577
- Input signal (current) (max.)
20 mA
- Dim
(L x W x H) 101.2 x 6.2 x 93.1 mm
- Output (current)
0/4 .... 20 mA
- Input signal (current)
0/4 .... 20 mA
- Content
1 pc(s)
- Width
6.2 mm
- Height
93.1 mm
- Length
101.2 mm
- Max. ambient temperature
60 °C
- Min. ambient temperature
-20 °C
- Operating voltage U(B)
19.2..30 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1830544 Phoenix Contact 2905577 1 pc(s)
Description

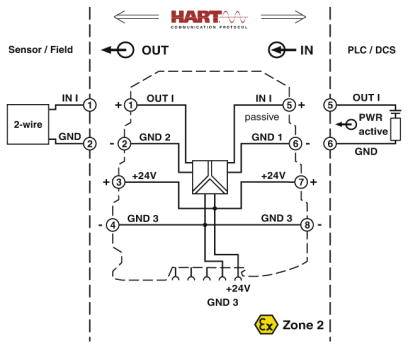

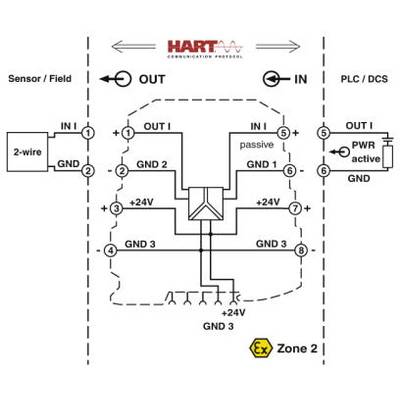

3-way isolation amplifier output for transmission of 0/4.... 20 mA-signals from the control to a in the field of load at the same time, 3-way galvanic isolation between input, output and power supply, with screw connection
